Driver Side Knee Airbag Assembly: Removal

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    NOTE: Wait for 90 seconds after disconnecting the cable to prevent the airbag working.

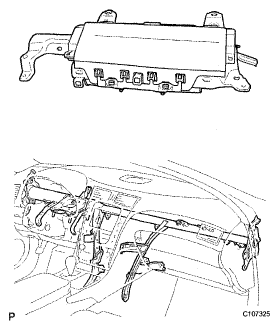

    Fig 1: [Identifying Driver Side Knee Airbag Assembly]
    G05298310Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE FRONT DOOR SCUFF PLATE  (See REMOVAL )
  3. REMOVE FRONT DOOR OPENING TRIM COVER  (See REMOVAL )
  4. REMOVE CONSOLE UPPER PANEL GARNISH FRONT  (See REMOVAL )
  5. REMOVE FRONT ASH RECEPTACLE ASSEMBLY  (See REMOVAL )
  6. REMOVE INSTRUMENT PANEL FINISH PANEL END  (See REMOVAL )
  7. REMOVE INSTRUMENT SIDE PANEL  (See REMOVAL )
  8. REMOVE INSTRUMENT PANEL UNDER NO.1 COVER SUB-ASSEMBLY  (See REMOVAL )
  9. REMOVE INSTRUMENT PANEL SAFETY NO.1 PAD SUB-ASSEMBLY  (See REMOVAL )
  10. REMOVE DRIVER SIDE KNEE AIRBAG ASSEMBLY
    1. Remove the 4 bolts and driver side knee airbag assembly.
    2. Disconnect the connector.
      NOTE: When handling the airbag connector, take care not to damage the airbag wire harness.
      Fig 2: Locating Driver Side Knee Airbag Assembly Bolts
      G05298311Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
