Steering Pad: Removal

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait for at least 90 seconds after disconnecting the cable to prevent airbag deployment.

NOTE: When disconnecting the cable, some systems need to be initialized after the cable is reconnected (See INITIALIZATION ).

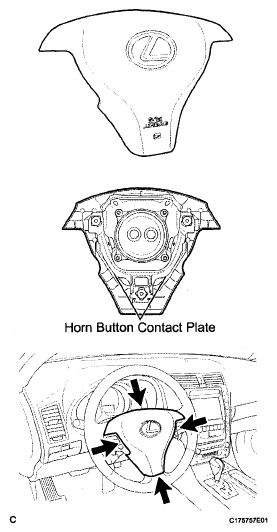

Fig 1: Identifying Horn Button Contact Plate
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE LOWER NO. 3 STEERING WHEEL COVER
1. Using a screwdriver, remove the lower No. 3 steering wheel cover.
  HINT:

  Tape up the screwdriver tip before use.

  Fig 2: Removing Lower No. 3 Steering Wheel Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE LOWER NO. 2 STEERING WHEEL COVER
1. Using a screwdriver, remove the lower No. 2 steering wheel cover.
  HINT:

  Tape up the screwdriver tip before use.

  Fig 3: Removing Lower No. 2 Steering Wheel Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE STEERING PAD
1. Using a "TORX" socket wrench (T30), loosen the 2 "TORX" screws until the groove along the screw circumference catches on the screw case.

  Fig 4: Locating Steering Pad Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Pull out the steering pad from the steering wheel assembly and support the steering pad with one hand as shown in the illustration.
  NOTE: When removing the steering pad, do not pull the airbag wire harness.

  Fig 5: Identifying Steering Pad From Steering Wheel Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Disconnect the horn connector from the steering pad.
4. Using a screwdriver with the tip wrapped with protective tape, disconnect the 2 airbag connectors and remove the steering pad.
  NOTE: When handling the airbag connector, take care not to damage the airbag wire harness.

  Fig 6: Disconnecting Horn Connector From Steering Pad
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
