Back Door: Disassembly

  1. REMOVE REAR WIPER ARM COVER (See  REMOVAL  )
  2. REMOVE REAR WIPER ARM AND BLADE ASSEMBLY (See  REMOVAL  )
  3. REMOVE REAR WIPER SHAFT COVER (See  REMOVAL  )
  4. REMOVE REAR NO.1 WIPER LINK PIVOT NUT (See  REMOVAL  )
  5. REMOVE REAR NO.1 WIPER LINK PIVOT WASHER (See REMOVAL  )
  6. REMOVE BACK WINDOW PANEL TRIM UPPER (w/o Power Back Door)
    1. Disengage the 2 claws and the 7 clips, and remove the back window panel trim upper.

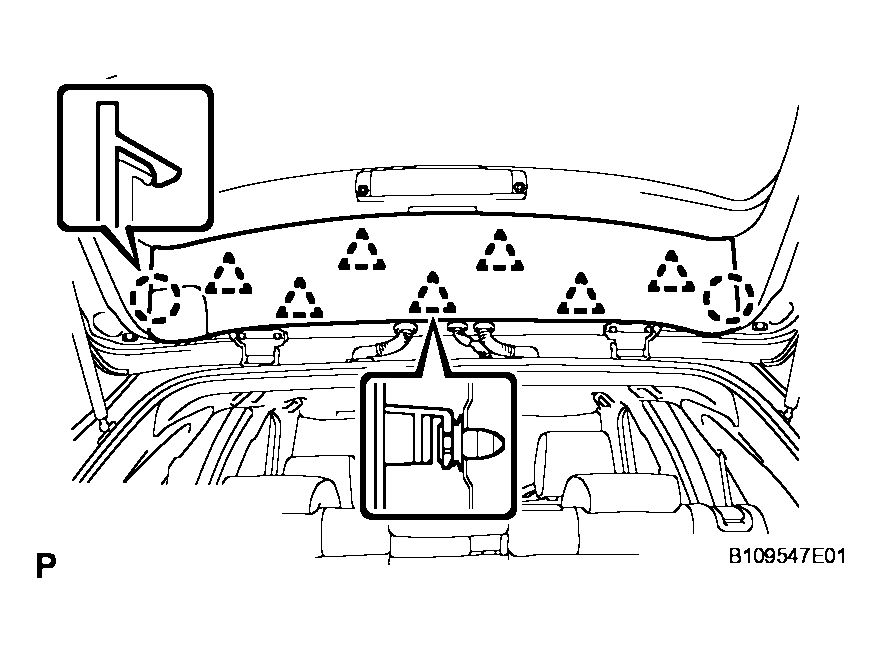

    Fig 1: Locating Claws And Clips On Back Window Panel Trim Upper
    G04093669Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE BACK DOOR TRIM BOARD (w/ Power Back Door)
    1. Disengage the 3 claws and remove the back door trim board.
    Fig 2: Locating Claws On Back Door Trim Board
    G04093670Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE BACK WINDOW PANEL TRIM UPPER (w/ Power Back Door)
    1. Disengage the 2 claws and the 7 clips, and remove the back window panel trim upper.

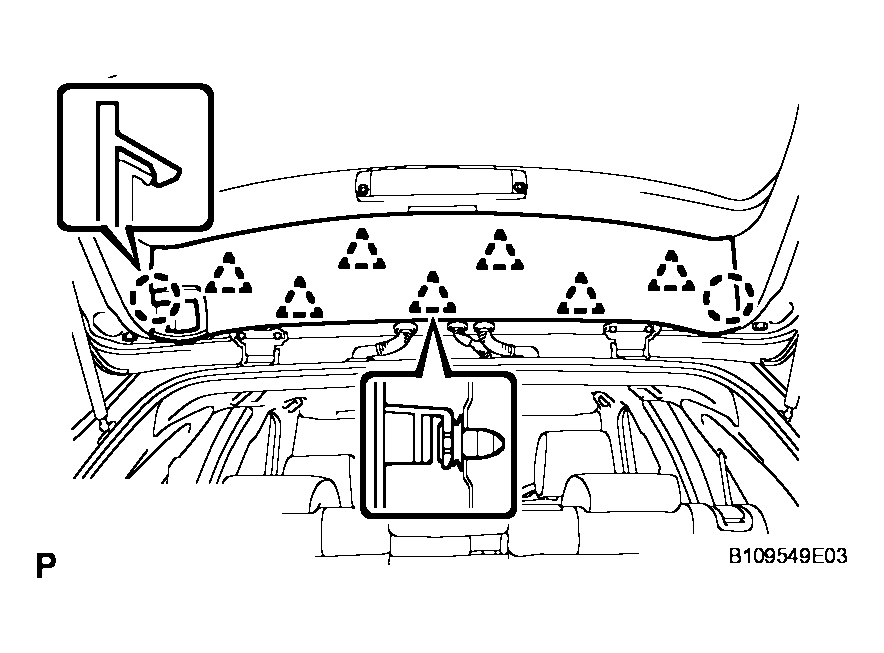

    Fig 3: Locating Claws And Clips On Back Window Panel Trim Upper
    G04093671Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE BACK DOOR TRIM PANEL ASSEMBLY UPPER
    1. Disengage the 10 clips and remove the back door trim panel assembly upper.
    Fig 4: Locating Clips On Back Door Trim Panel Assembly Upper
    G04093672Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE BACK DOOR TRIM PANEL ASSEMBLY
    1. Disengage the 8 clips and remove the back door trim panel assembly.
  11. REMOVE REAR WIPER MOTOR ASSEMBLY (See  REMOVAL  )
  12. REMOVE BACK-UP LIGHT ASSEMBLY RH (See  REMOVAL  )
  13. REMOVE BACK-UP LIGHT ASSEMBLY LH (See  REMOVAL  )
    Fig 5: Locating Clips On Back Door Trim Panel Assembly
    G04093673Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE BACK DOOR TRIM COVER RH
    1. Disengage the 3 clips and remove the back door trim cover RH.
      Fig 6: Locating Clips On Back Door Trim Cover RH
      G04093674Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      If a clip remains on the door, remove the clip from the body and install it to the back door trim cover RH.

  15. REMOVE BACK DOOR TRIM COVER LH
    1. Disengage the 3 clips and remove the back door trim cover LH.

      HINT:

      If a clip remains on the door, remove the clip from the body and install it to the back door trim cover LH.

      Fig 7: Locating Clips On Back Door Trim Cover LH
      G04093675Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE REAR SPOILER SUB-ASSEMBLY (See  REMOVAL  )
  17. REMOVE BACK DOOR TRIM SPACER (RH Side)
    1. Remove the screw.
    2. Disengage the clip and remove the back door trim spacer.

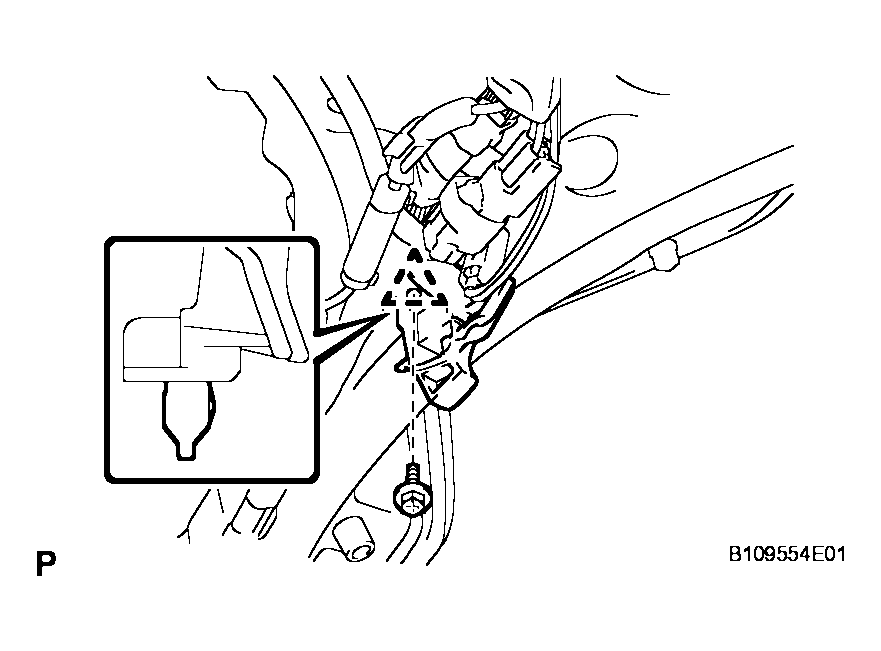

    Fig 8: Removing Back Door Trim Spacer (RH Side)
    G04093676Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE BACK DOOR TRIM SPACER (LH Side)
    1. Remove the screw.
    2. Disengage the clip and remove the back door trim spacer.

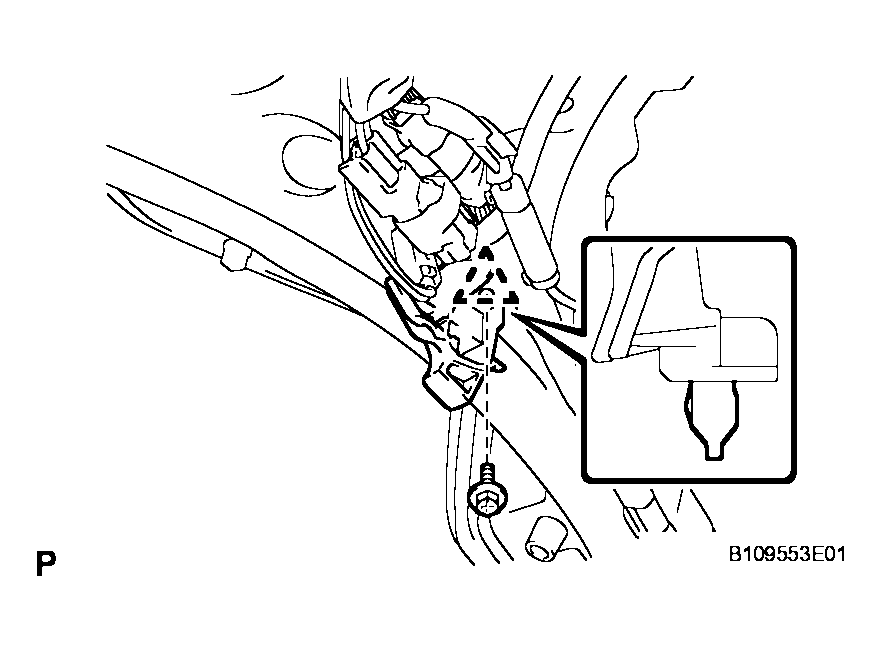

    Fig 9: Removing Back Door Trim Spacer (LH Side)
    G04093677Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. REMOVE BACK DOOR LOCK COVER
    1. Disengage the 4 claws and remove the back door lock cover.
    Fig 10: Locating Claws On Back Door Lock Cover
    G04093678Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. REMOVE BACK DOOR LOCK ASSEMBLY (w/o Power Back Door)
    1. Separate the link rod as shown in the illustration.

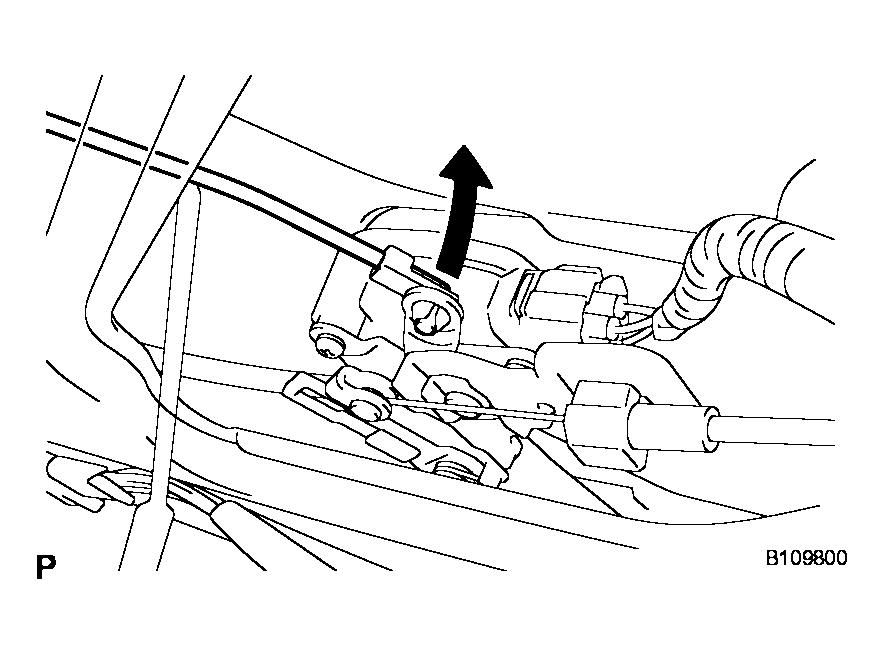

      Fig 11: Separating Link Rod
      G04093679Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector and remove the clamp.
    3. Remove the 3 bolts and the back door lock assembly.

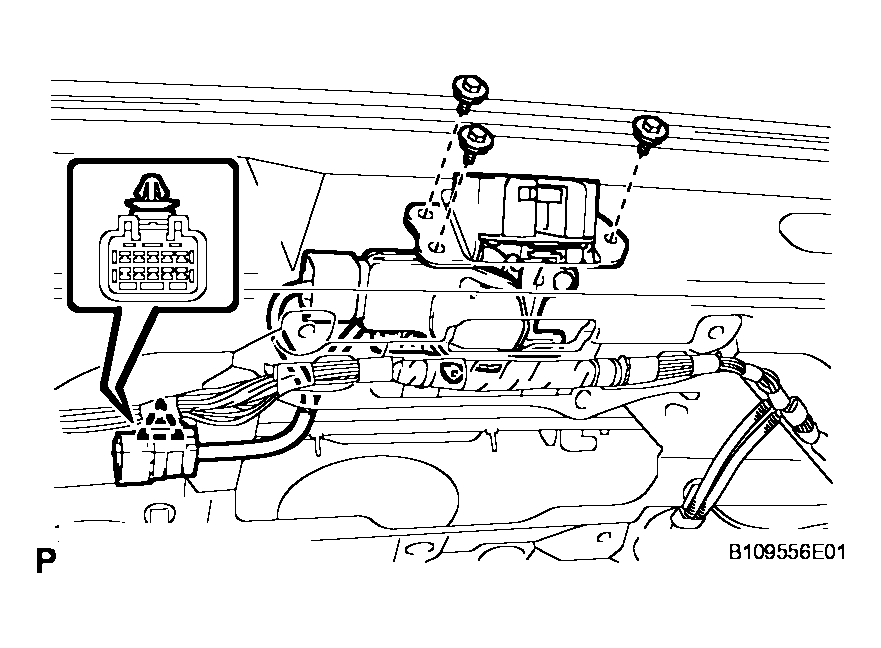

    Fig 12: Removing Back Door Lock Assembly (W/O Power Back Door)
    G04093680Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. REMOVE BACK DOOR LOCK ASSEMBLY (w/ Power Back Door)
    1. Separate the link rod as shown in the illustration.

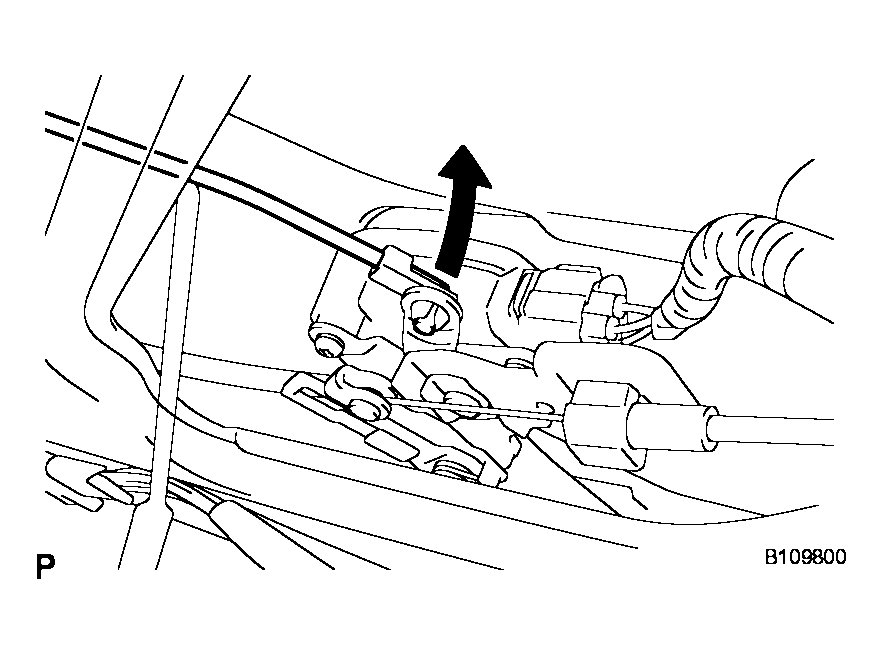

      Fig 13: Separating Link Rod
      G04093681Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect each connector and remove the clamp.
    3. Remove the 4 bolts and the back door lock assembly.

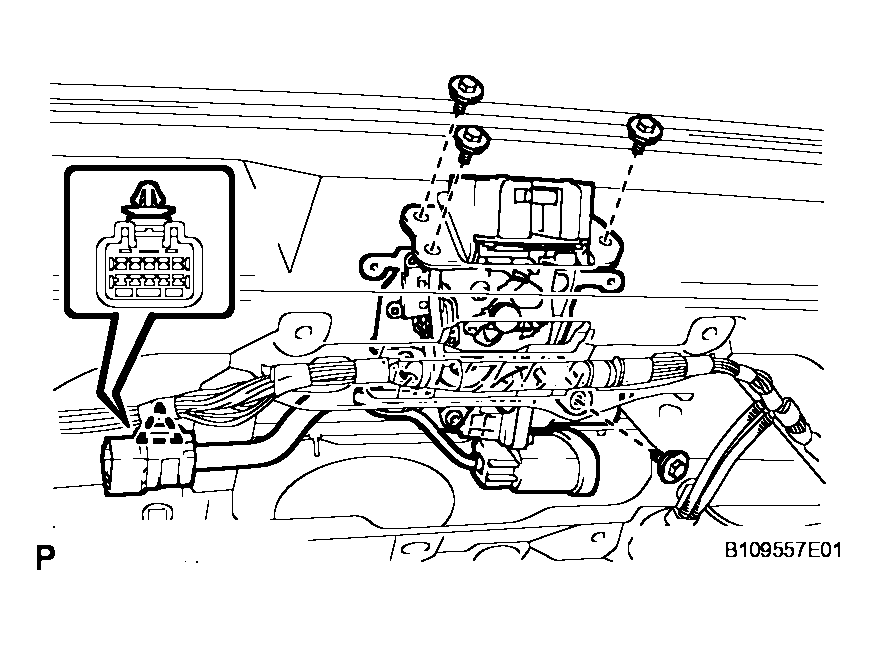

    Fig 14: Removing Back Door Lock Assembly (W/ Power Back Door)
    G04093682Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. REMOVE POWER BACK DOOR SENSOR ASSEMBLY RH (w/ Power Back Door)
    1. Disconnect the connector.
    2. Remove the clip.
    3. Using a "torx" socket wrench (T30), remove the 3 screws and the power back door sensor assembly RH.

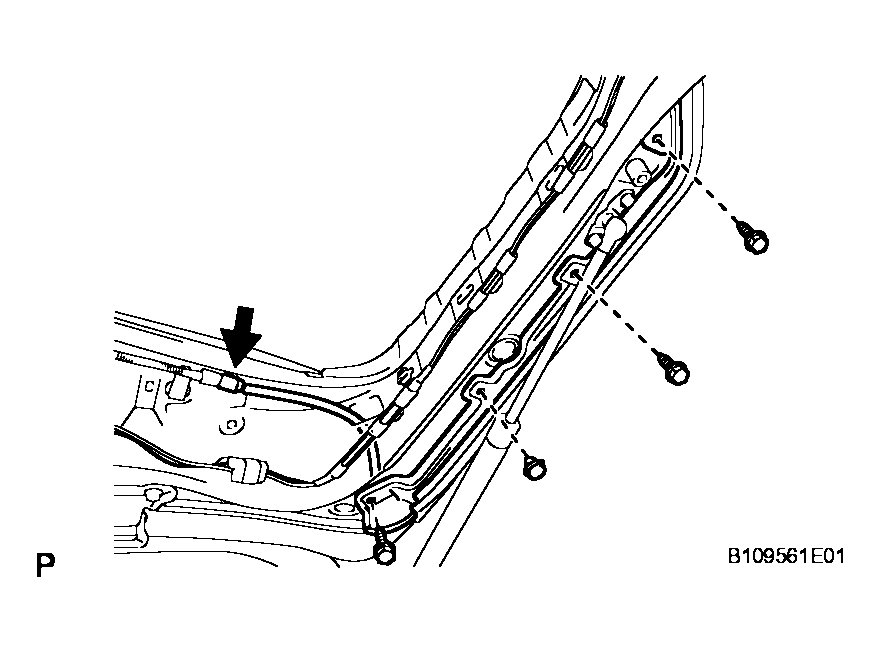

    Fig 15: Removing Power Back Door Sensor Assembly RH (W/ Power Back Door)
    G04093683Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. REMOVE POWER BACK DOOR SENSOR ASSEMBLY LH (w/ Power Back Door)
    1. Disconnect the connector.
    2. Remove the clip.
    3. Using a "torx" socket wrench (T30), remove the 3 screws and the power back door sensor assembly LH.
    Fig 16: Removing Power Back Door Sensor Assembly LH (W/ Power Back Door)
    G04093684Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  24. REMOVE BACK DOOR GARNISH (See  REMOVAL  )
  25. REMOVE BACK DOOR OPENER SWITCH ASSEMBLY
    1. Remove the 2 screws and the back door opener switch assembly.
    Fig 17: Removing Back Door Opener Switch Assembly
    G04093685Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  26. REMOVE TELEVISION CAMERA (w/ Rear View Monitor) (See  REMOVAL  )
  27. REMOVE LICENSE PLATE LIGHT ASSEMBLY (See  REMOVAL  )
  28. REMOVE POWER BACK DOOR WARNING BUZZER (w/ Power Back Door)
    1. Disconnect the connector.
    2. Remove the clamp and power back door warning buzzer.

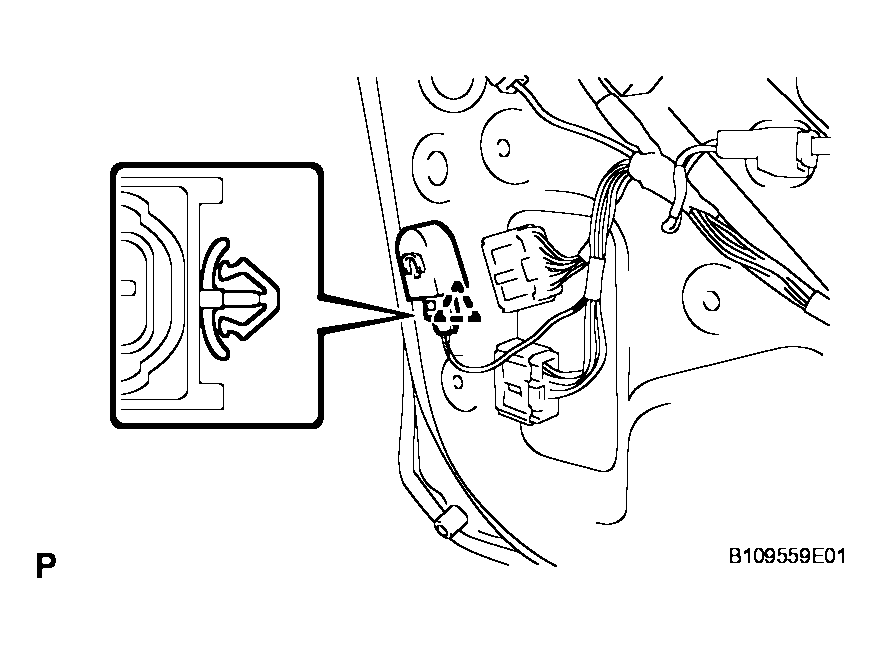

    Fig 18: Locating Clamp On Power Back Door Warning Buzzer
    G04093686Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  29. REMOVE POWER BACK DOOR CONTROL SWITCH ASSEMBLY (w/ Power Back Door)
    1. Remove the clamp and disconnect the connector.
    2. Disengage the 2 claws and remove the power back door control switch assembly as shown in the illustration.

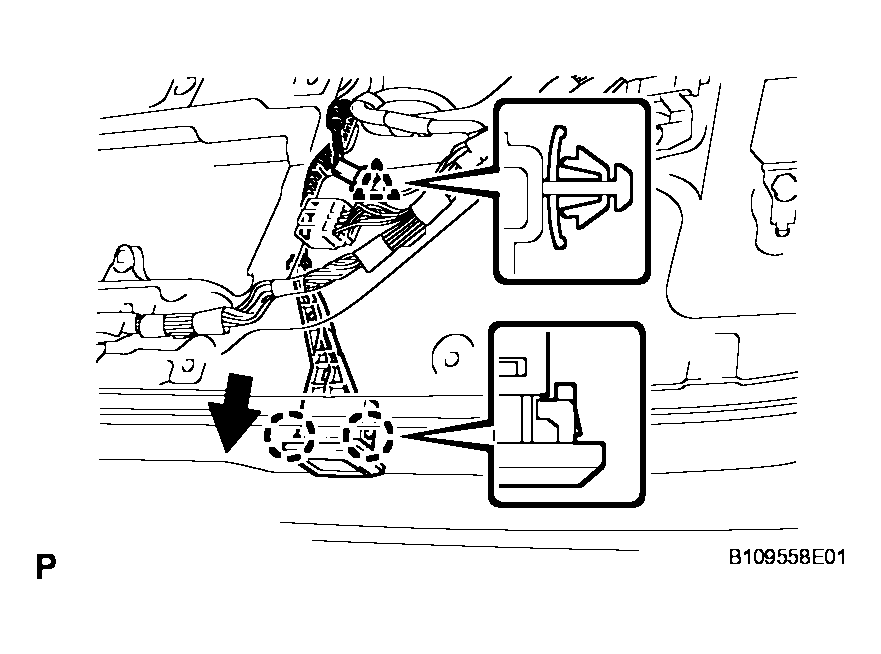

    Fig 19: Removing Power Back Door Control Switch Assembly (W/ Power Back Door)
    G04093687Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  30. REMOVE DOOR PULL HANDLE
    1. Disengage the 4 claws and remove the door pull handle.
    Fig 20: Locating Claws On Door Pull Handle
    G04093688Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
