Rear Wiper Motor: Removal

  1. REMOVE REAR WIPER ARM COVER
    1. Remove rear wiper arm cover.
  2. REMOVE REAR WIPER ARM AND BLADE ASSEMBLY
    1. Remove the nut, rear wiper arm and blade assembly.
  3. REMOVE REAR WIPER SHAFT COVER
    1. Remove the rear wiper shaft cover.
    Fig 1: Removing Rear Wiper Shaft Cover
    G04092379Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE REAR NO. 1 WIPER LINK PIVOT NUT
    1. Using the socket wrench 27 mm (1.06 in.), remove the rear No. 1 wiper link pivot nut.
    Fig 2: Removing Rear No. 1 Wiper Link Pivot Nut
    G04092380Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE REAR NO. 1 WIPER LINK PIVOT WASHER
    1. Remove the rear No. 1 wiper link pivot washer.
  6. REMOVE BACK DOOR TRIM PANEL ASSEMBLY UPPER (See  DISASSEMBLY  )
  7. REMOVE REAR WIPER MOTOR ASSEMBLY
    1. Disconnect the connector.
      Fig 3: Remove Rear Wiper Motor Assembly Connector
      G04092381Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 3 bolts and the rear wiper motor assembly.

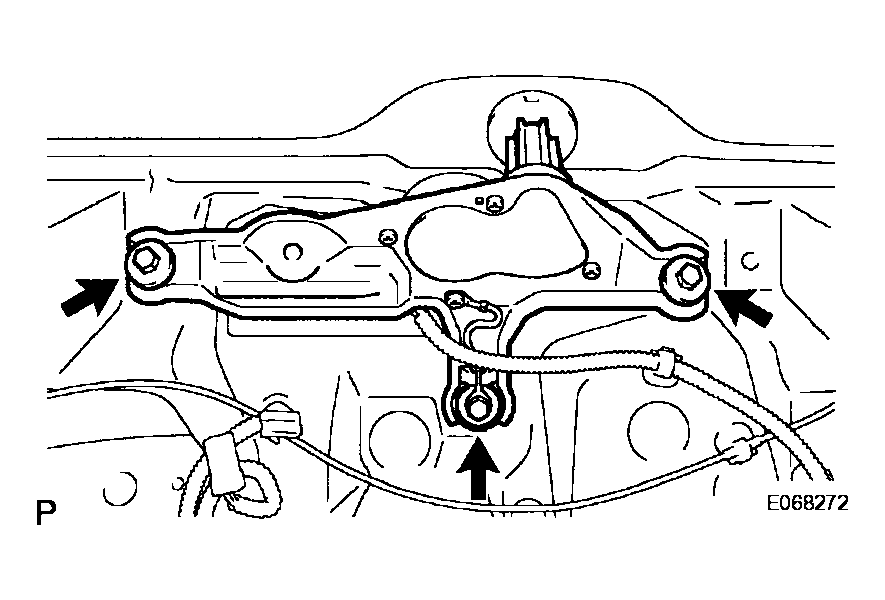

    Fig 4: Removing Rear Wiper Motor Assembly Bolts
    G04092382Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
