Television Camera: Removal

  1. REMOVE BACK DOOR TRIM PANEL ASSEMBLY UPPER (See  DISASSEMBLY  )
  2. REMOVE BACK DOOR GARNISH (See  INSTALLATION  )
  3. REMOVE TELEVISION CAMERA
    1. Disconnect the connector and disengage the clamp.

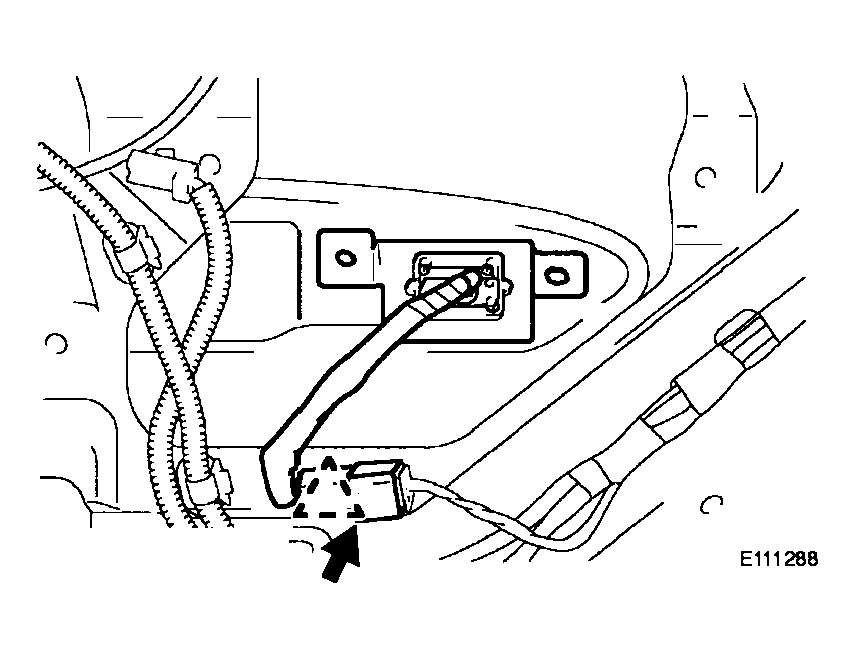

      Fig 1: Disconnecting Connector
      G04093111Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 claws and remove the television camera.
    Fig 2: Removing Television Camera
    G04093112Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
