Rear Spoiler: Removal

REMOVE BACK DOOR TRIM BOARD (w/ Power Back Door)
1. Using a screwdriver, disengage the 3 claws and remove the trim board.

  Fig 1: Removing Back Door Trim Board (W/ Power Back Door)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  Tape the screwdriver tip before use.
REMOVE BACK WINDOW PANEL TRIM UPPER
1. Using a screwdriver, disengage the 7 clips and remove the trim board.

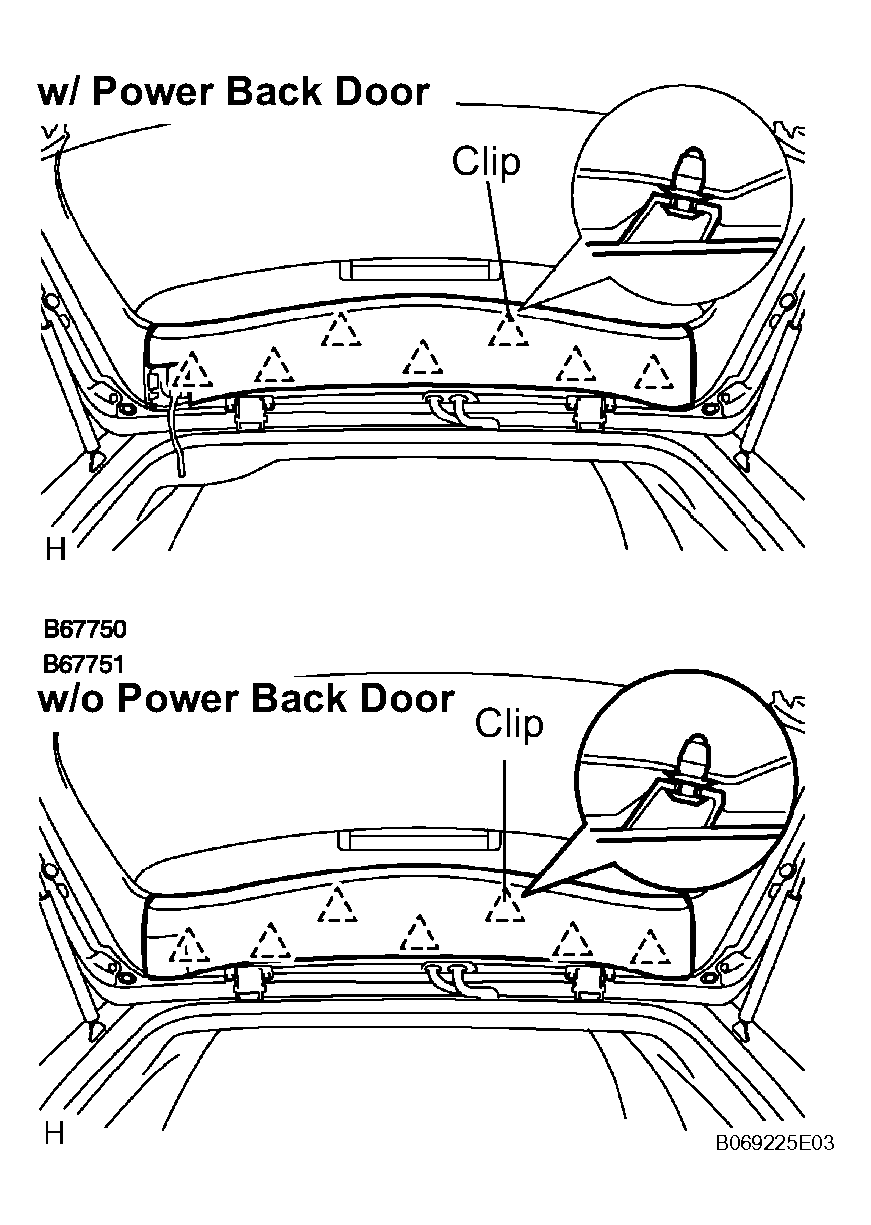

  Fig 2: Removing Back Window Panel Trim Upper
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  Tape the screwdriver tip before use.
REMOVE BACK DOOR TRIM COVER (w/ Power Back Door)
1. Using a screwdriver, disengage the 3 clips and trim cover.

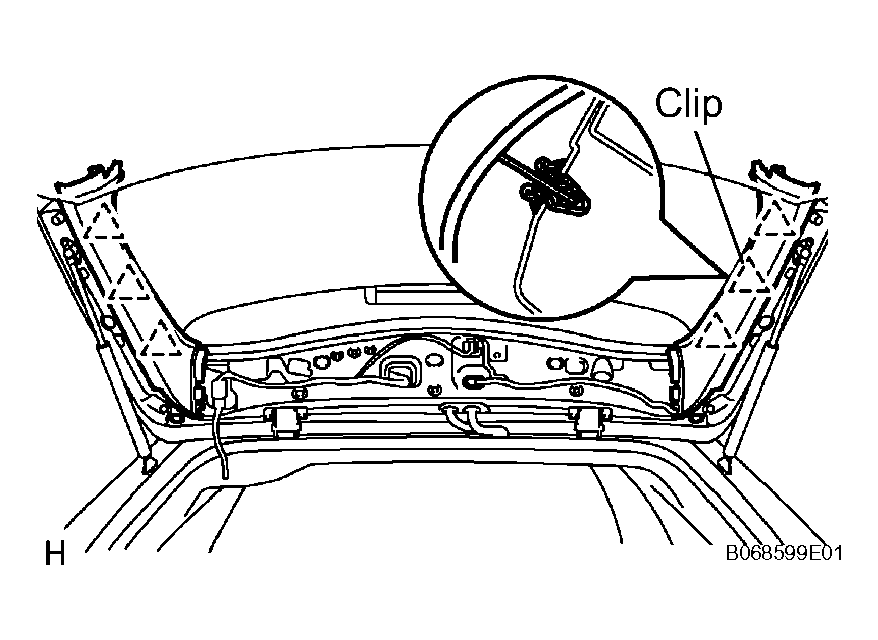

  Fig 3: Removing Back Door Trim Cover (W/ Power Back Door)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  Tape the screwdriver tip before use.
REMOVE REAR SPOILER SUB-ASSEMBLY
1. Remove 5 bolts.
2. Disconnect the stop light connector.
3. Remove 3 clips and rear spoiler.

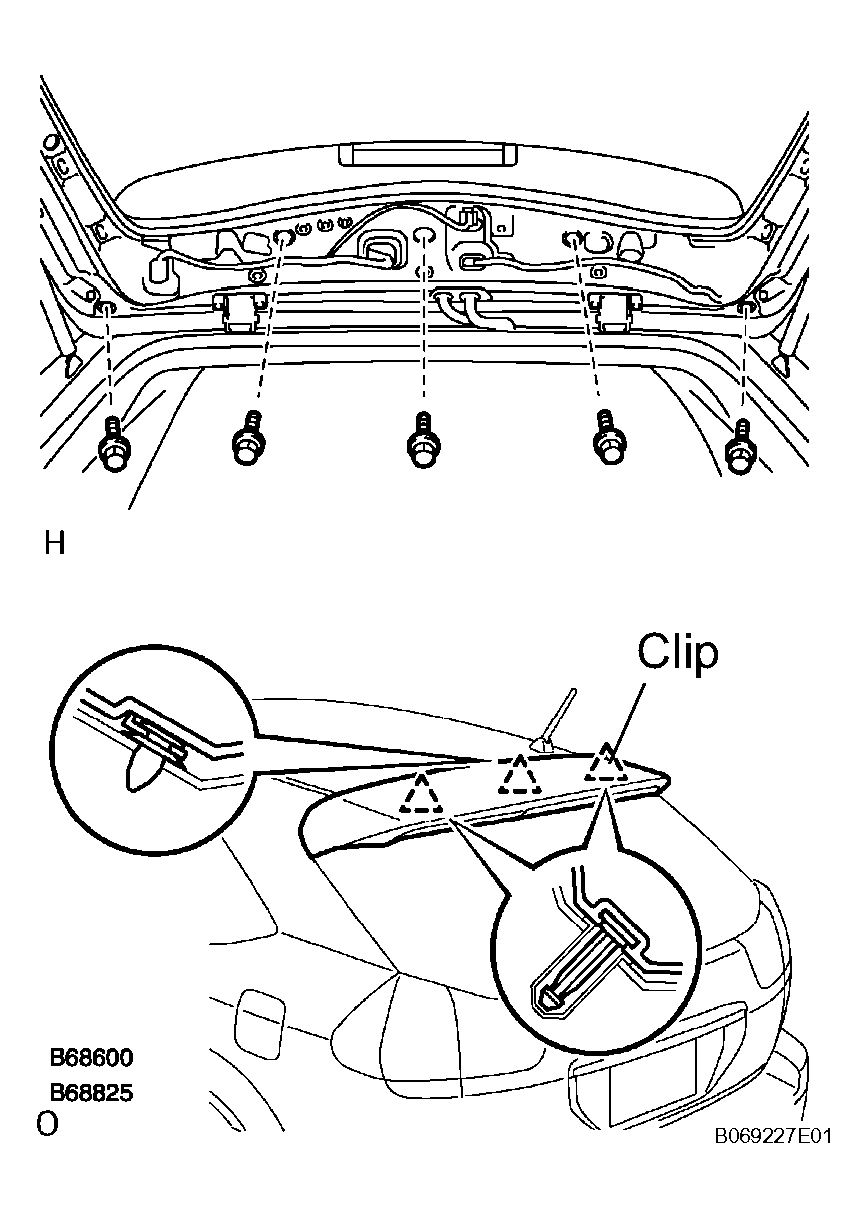

Fig 4: Removing Rear Spoiler Sub-Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE CENTER STOP LIGHT ASSEMBLY
1. Remove 2 screws and stop light.
Fig 5: Removing Center Stop Light Assembly Screws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
