Back-Up Light Assembly: Removal

  1. REMOVE BACK DOOR TRIM PANEL ASSEMBLY UPPER
  2. REMOVE BACK-UP LIGHT ASSEMBLY
    1. Disconnect each connector.
    2. Remove the 3 nuts and disengage the clip, and remove the back-up light assembly.

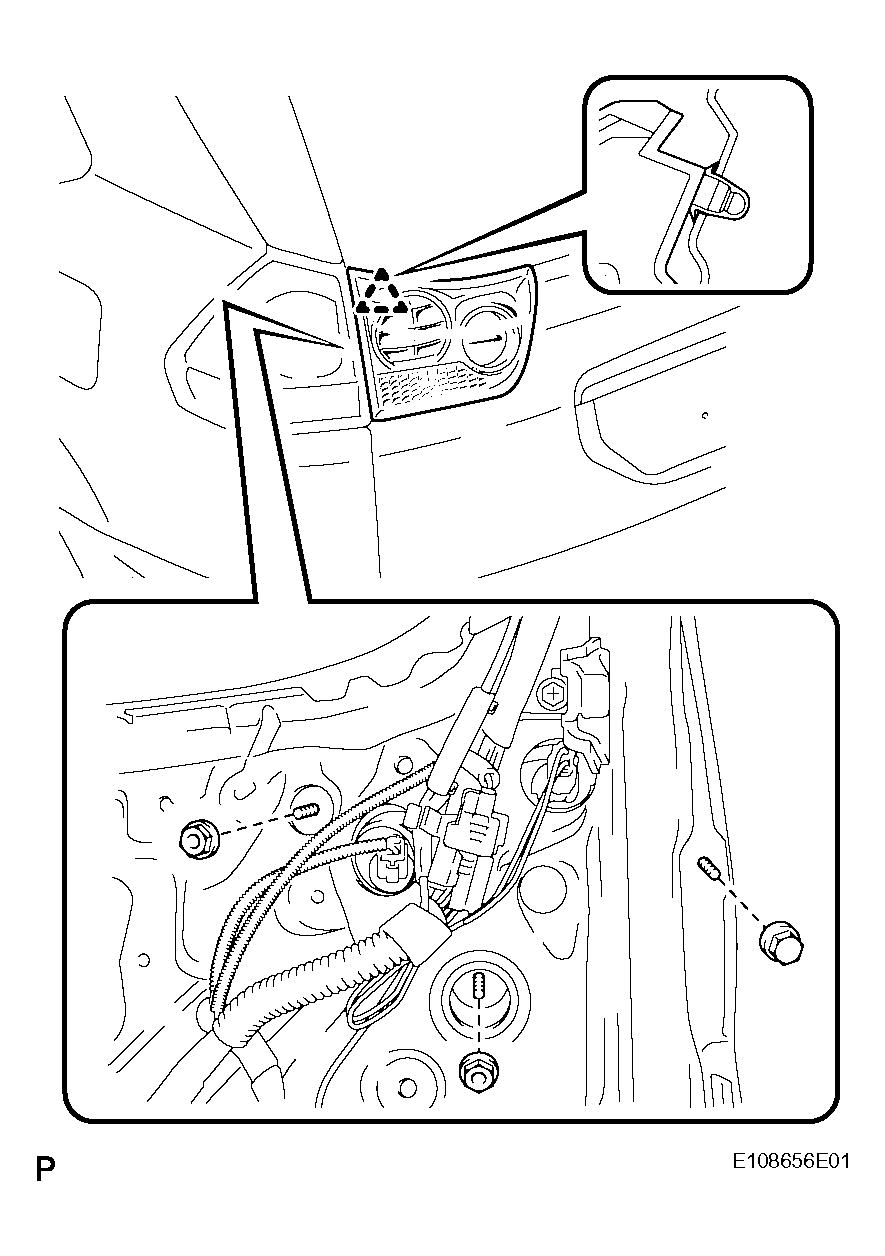

    Fig 1: Removing Back-Up Light Assembly
    G04092275Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
