Luggage Compartment Door: Disassembly
- REMOVE LUGGAGE COMPARTMENT DOOR ASSIST GRIP (See Step 2 in REMOVAL
)
- REMOVE LUGGAGE LOCK CONTROL CABLE PLATE
- Disengage the 2 claws and remove the luggage lock control cable plate.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- REMOVE LUGGAGE COMPARTMENT DOOR INSIDE HANDLE
- Disconnect the luggage compartment door lock control cable and remove the luggage compartment inside door handle.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- REMOVE LUGGAGE COMPARTMENT DOOR COVER (See Step 5 in REMOVAL
)
- REMOVE LUGGAGE COMPARTMENT DOOR REINFORCEMENT (See Step 6 in REMOVAL
)
- REMOVE LUGGAGE KEY ELECTRICAL SWITCH (See Step 7 in REMOVAL
)

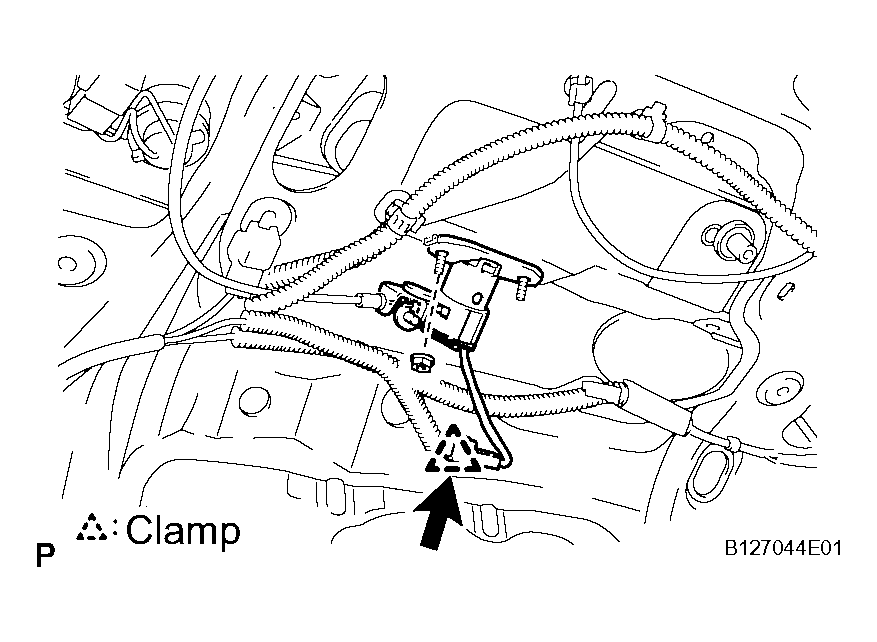

- REMOVE LUGGAGE COMPARTMENT DOOR LOCK CYLINDER ASSEMBLY
- Disconnect the connector and clamp.
- Remove the nut.
- Disconnect the luggage compartment door lock control cable and remove the luggage compartment door lock cylinder assembly.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- REMOVE LUGGAGE COMPARTMENT DOOR LOCK ASSEMBLY (See Step 7 in REMOVAL
)

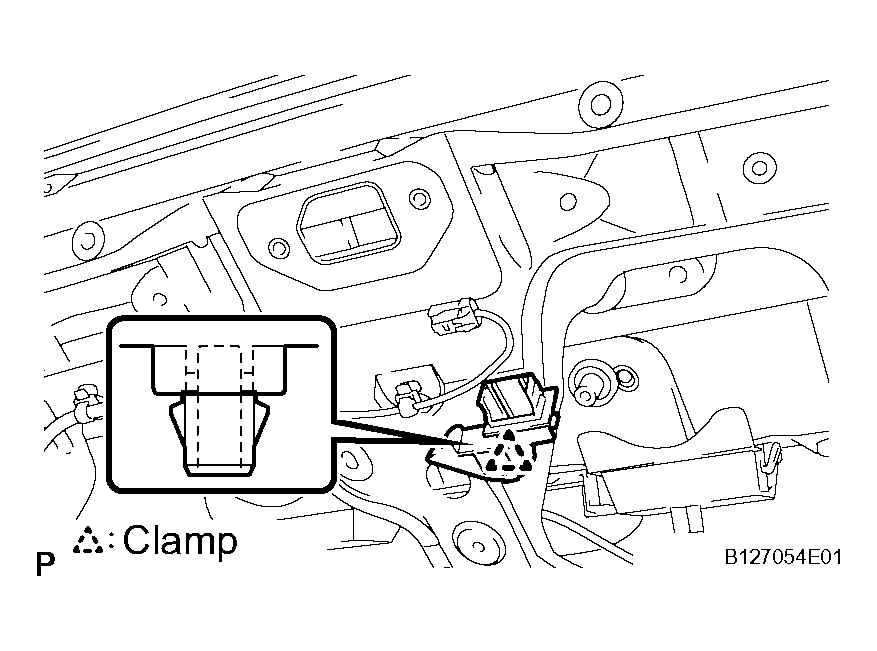

- REMOVE LUGGAGE LOCK CONTROL CABLE CLAMP
- Disengage the clamp and remove the luggage lock control cable clamp.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- REMOVE TELEVISION CAMERA ASSEMBLY (w/ Parking Assist Monitor System) (See Step 6 in REMOVAL
)
- REMOVE REAR LIGHT ASSEMBLY LH (See Step 16 in REMOVAL
)
- REMOVE REAR LIGHT ASSEMBLY RH
- REMOVE LUGGAGE COMPARTMENT OUTSIDE DOOR GARNISH SUB-ASSEMBLY (See Step 13 in REMOVAL
)
- REMOVE LICENSE PLATE LIGHT ASSEMBLY LH (See Step 11 in REMOVAL
)
- REMOVE LICENSE PLATE LIGHT ASSEMBLY RH
