Rear Combination Light Assembly: Removal
- REMOVE NO. 2 LUGGAGE COMPARTMENT TRIM COVER
- REMOVE DECK SIDE TRIM BOX LH
- REMOVE DECK SIDE TRIM BOX RH
- REMOVE ROPE HOOK ASSEMBLY (See REMOVAL
)
- REMOVE REAR LUGGAGE COMPARTMENT TRIM COVER (See REMOVAL
)
- REMOVE NO. 2 ROOM LIGHT ASSEMBLY (See REMOVAL
)
- REMOVE ROPE HOOK (See REMOVAL
)
- REMOVE FRONT LUGGAGE COMPARTMENT TRIM COVER (See REMOVAL
)
- REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK (See REMOVAL
)
- REMOVE SIDE LUGGAGE COMPARTMENT TRIM COVER (See REMOVAL
)
- REMOVE REAR COMBINATION LIGHT ASSEMBLY
- Disconnect the connector.
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
- Remove the 3 nuts.

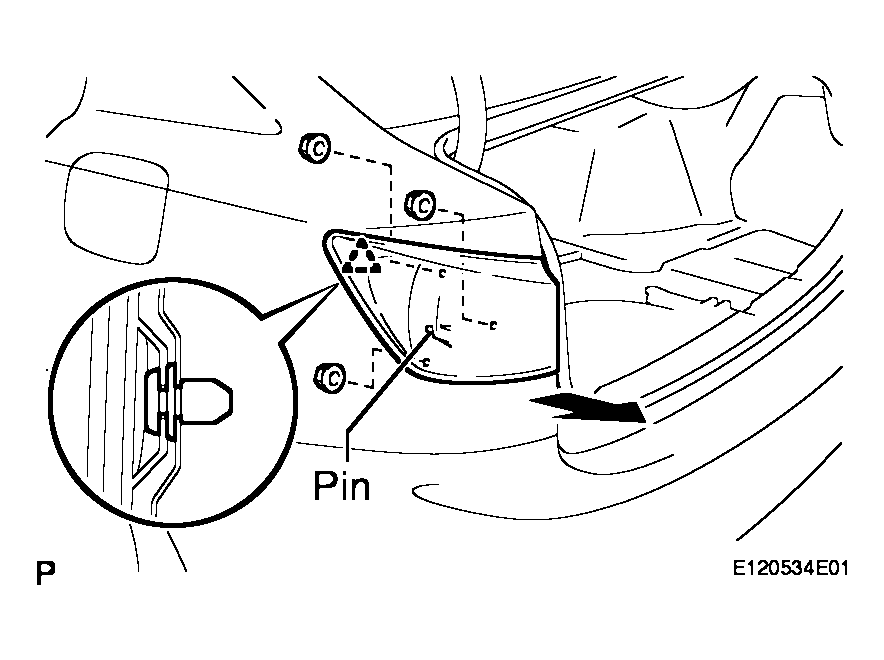

- Disengage the clip and pin, and remove the rear combination light assembly as shown in the illustration.
- REMOVE LUGGAGE COMPARTMENT DOOR ASSIST GRIP (See REMOVAL
)
- REMOVE LUGGAGE LOCK CONTROL CABLE PLATE (See DISASSEMBLY
)
- REMOVE LUGGAGE COMPARTMENT DOOR INSIDE HANDLE (See DISASSEMBLY
)
- REMOVE LUGGAGE COMPARTMENT DOOR COVER (See REMOVAL
)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
- REMOVE REAR LIGHT ASSEMBLY
- Disconnect the connector.
- Remove the 3 nuts and rear light assembly.
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
