Television Camera: Removal
- REMOVE LUGGAGE COMPARTMENT DOOR ASSIST GRIP (See step 2 in REMOVAL
)
- REMOVE LUGGAGE LOCK CONTROL CABLE PLATE (See step 2 in DISASSEMBLY
)
- REMOVE LUGGAGE COMPARTMENT DOOR INSIDE HANDLE (See step 3 in DISASSEMBLY
)
- REMOVE LUGGAGE COMPARTMENT DOOR COVER (See step 5 in REMOVAL
)
- REMOVE LUGGAGE COMPARTMENT DOOR REINFORCEMENT (See step 6 in REMOVAL
)
- REMOVE TELEVISION CAMERA ASSEMBLY

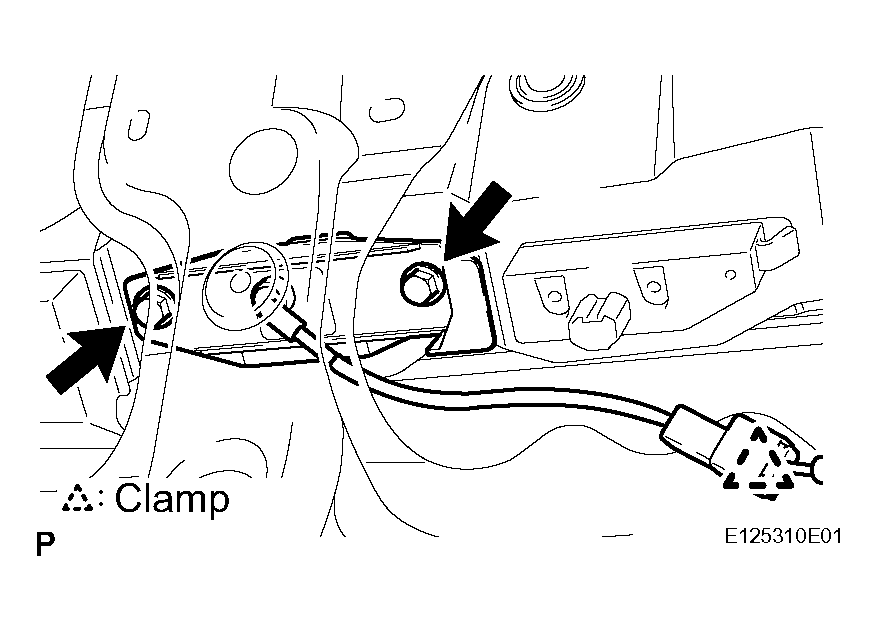

- Disengage the camera connector clamp.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- Disconnect the television camera connector.
- Remove the 2 screws.
- Disengage the 2 claws to remove the television camera assembly.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
