Luggage Compartment Door Garnish: Removal

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
REMOVE LUGGAGE COMPARTMENT DOOR ASSIST GRIP
1. Disengage the 3 claws and disconnect the cover.
2. Remove the 2 screws and luggage compartment door assist grip.
Fig 1: Removing Screws & Luggage Compartment Door Assist Grip
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE LUGGAGE LOCK CONTROL CABLE PLATE (See Step 2 in DISASSEMBLY )
REMOVE LUGGAGE COMPARTMENT DOOR INSIDE HANDLE (See Step 3 in DISASSEMBLY )

Fig 2: Removing Luggage Compartment Door Inside Handle
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE LUGGAGE COMPARTMENT DOOR COVER

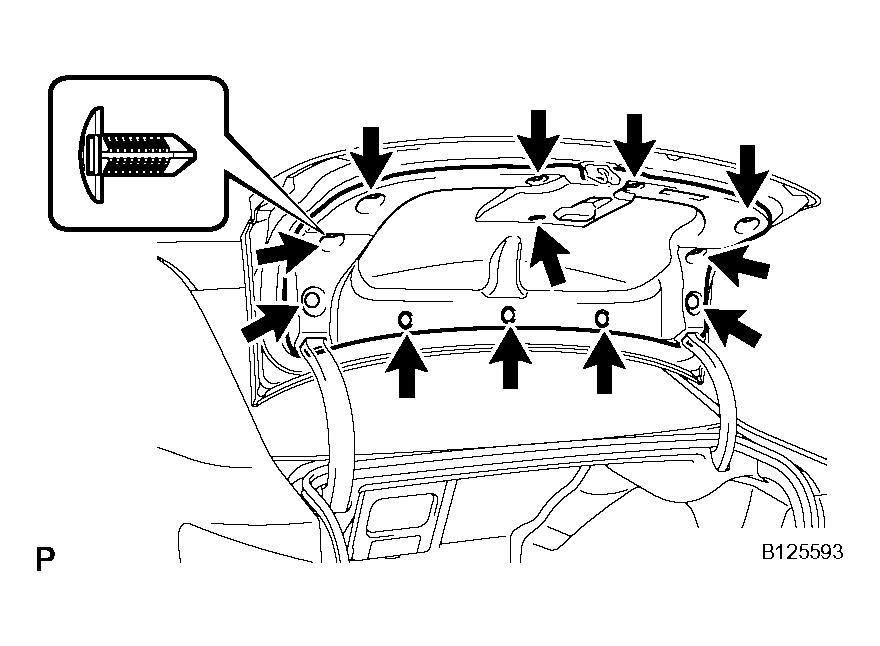

1. Using a clip remover, remove the 12 clips and luggage compartment door cover.
Fig 3: Removing Clips And Luggage Compartment Door Cover
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE LUGGAGE COMPARTMENT DOOR REINFORCEMENT
1. Using a clip remover, remove the clip.

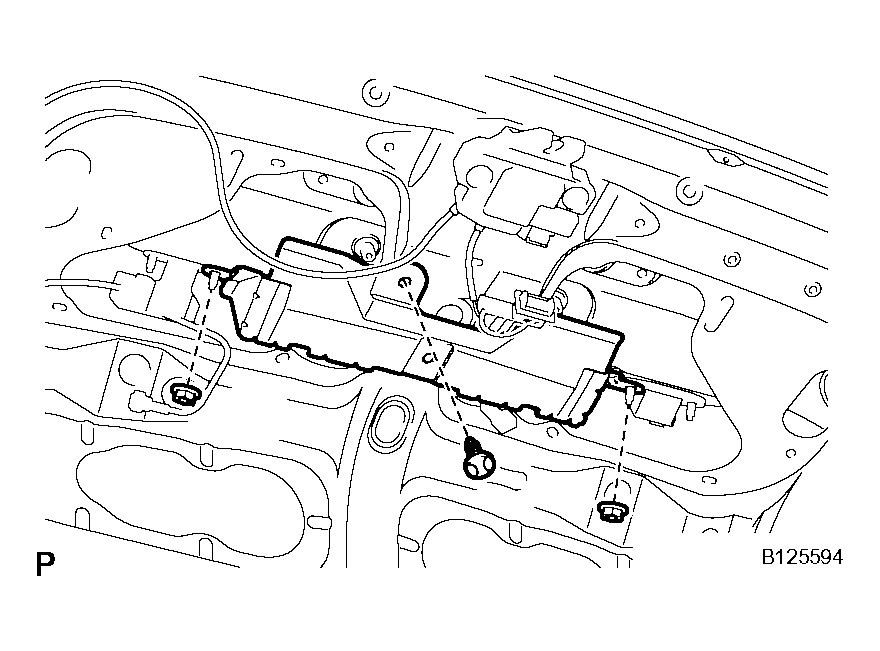

2. Remove the 2 nuts and luggage compartment door reinforcement.
Fig 4: Removing Nuts & Luggage Compartment Door Reinforcement
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE LUGGAGE KEY ELECTRICAL SWITCH
1. Disconnect the connector.

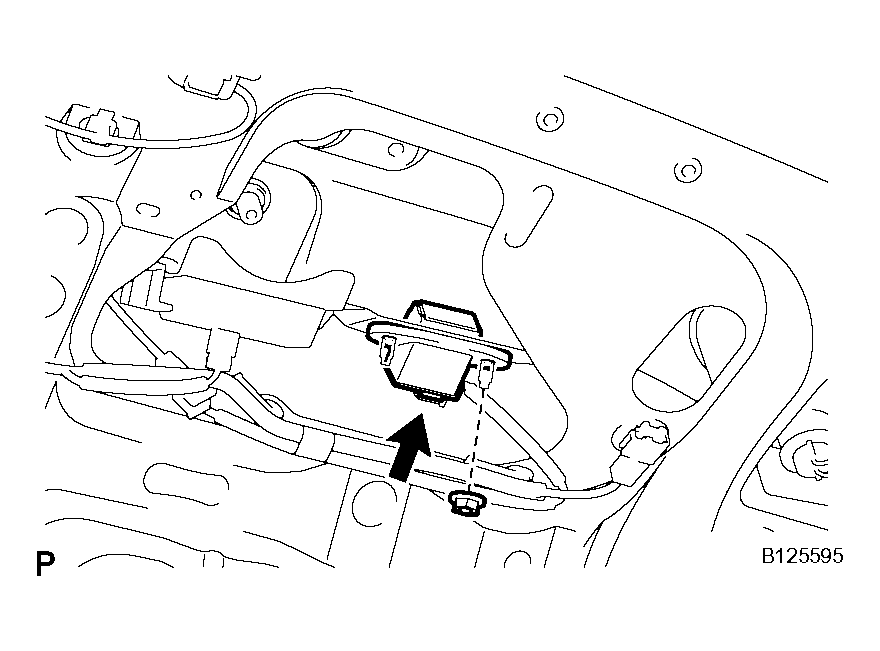

2. Remove the nut and luggage key electrical switch.
REMOVE TELEVISION CAMERA ASSEMBLY (w/ Parking Assist Monitor System) (See Step 6 in REMOVAL )
REMOVE REAR LIGHT ASSEMBLY LH (See Step 16 in REMOVAL )
REMOVE REAR LIGHT ASSEMBLY RH

Fig 5: Removing Nut & Luggage Key Electrical Switch
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NO. 1 LUGGAGE COMPARTMENT DOOR NAME PLATE (See Step 2 in REMOVAL )
REMOVE NO. 3 LUGGAGE COMPARTMENT DOOR PLATE (See Step 3 in REMOVAL )
REMOVE LUGGAGE COMPARTMENT OUTSIDE DOOR GARNISH SUB-ASSEMBLY
1. Remove the 3 nuts.

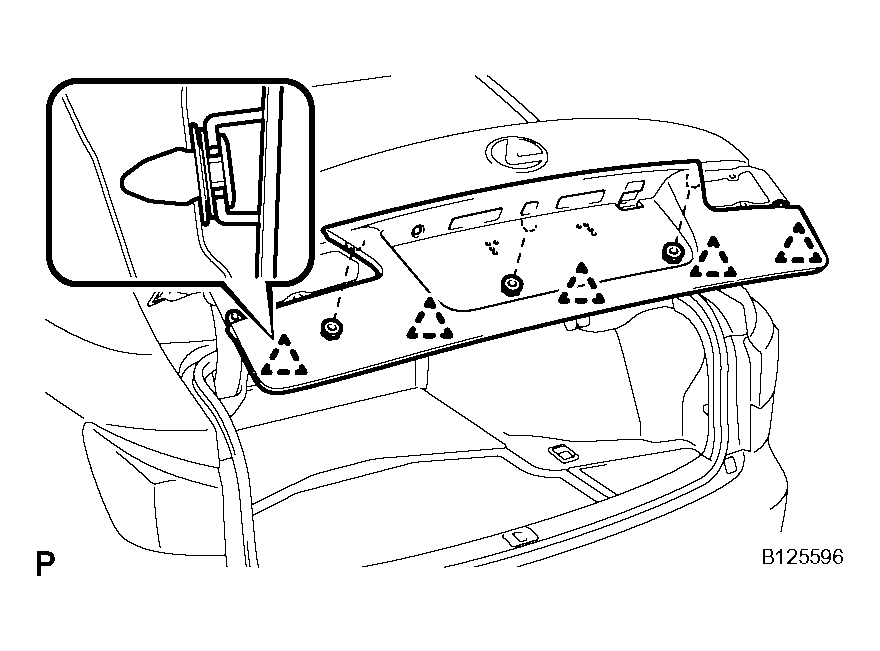

2. Disengage the 5 clips and remove the luggage compartment outside door garnish sub-assembly.
Fig 6: Removing Luggage Compartment Outside Door Garnish Sub-Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
