Navigation Antenna: Removal

  1. PRECAUTION

    (See INSTRUMENT PANEL SAFETY PAD )

  2. ALIGN FRONT WHEELS FACING STRAIGHT AHEAD
  3. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait for 90 seconds after disconnecting the cable to prevent airbag deployment (See AIRBAG SYSTEM ).
  4. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transmission) (See  REMOVAL  )
  5. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transmission) (See  REMOVAL  )
  6. REMOVE UPPER NO. 1 CONSOLE PANEL GARNISH (for Automatic Transmission) (See  REMOVAL  )
  7. REMOVE UPPER NO. 2 CONSOLE PANEL GARNISH (for Automatic Transmission) (See  REMOVAL  )
  8. REMOVE CONSOLE PANEL SUB-ASSEMBLY (for Automatic Transmission) (See  REMOVAL  )
  9. REMOVE REAR CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission) (See  REMOVAL  )
  10. REMOVE FRONT CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission) (See  REMOVAL  )
  11. REMOVE FRONT ASH RECEPTACLE SUB-ASSEMBLY (See  REMOVAL  )
  12. REMOVE CONSOLE BOX REGISTER ASSEMBLY (See  REMOVAL  )
  13. REMOVE CONSOLE BOX (See  REMOVAL  )
  14. REMOVE NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY (See  REMOVAL  )
  15. REMOVE CENTER LOWER INSTRUMENT CLUSTER FINISH PANEL (See  REMOVAL  )
  16. REMOVE MULTI-DISPLAY WITH RADIO RECEIVER ASSEMBLY (See  REMOVAL  )
  17. REMOVE LOWER NO. 2 STEERING WHEEL COVER (See  REMOVAL  )
  18. REMOVE LOWER NO. 3 STEERING WHEEL COVER (See  REMOVAL  )
  19. REMOVE STEERING PAD (See  REMOVAL  )
  20. REMOVE STEERING WHEEL ASSEMBLY (See  REMOVAL  )
  21. REMOVE STEERING COLUMN COVER (for Power Tilt and Power Telescopic) (See  REMOVAL  )
  22. REMOVE STEERING COLUMN COVER (for Manual Tilt and Telescopic) (See  REMOVAL  )
  23. REMOVE TURN SIGNAL SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY (See  REMOVAL  )
  24. REMOVE FRONT DOOR SCUFF PLATE LH (See  REMOVAL  )
  25. REMOVE FRONT DOOR OPENING TRIM COVER LH (See  REMOVAL  )
  26. REMOVE SIDE INSTRUMENT PANEL LH (See  REMOVAL  )
  27. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY (See  REMOVAL  )
  28. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY (See  REMOVAL  )
  29. REMOVE DRIVER SIDE KNEE AIRBAG ASSEMBLY (See  REMOVAL  )
  30. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (See  REMOVAL  )
  31. REMOVE COMBINATION METER ASSEMBLY (See  REMOVAL  )
  32. REMOVE FRONT DOOR SCUFF PLATE RH (See  REMOVAL  )
  33. REMOVE FRONT DOOR OPENING TRIM COVER RH (See  REMOVAL  )
  34. REMOVE SIDE INSTRUMENT PANEL RH (See  REMOVAL  )
  35. REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY (See  REMOVAL  )
  36. REMOVE FRONT PASSENGER SIDE KNEE AIRBAG ASSEMBLY (See  REMOVAL  )
  37. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY (See  REMOVAL  )
  38. REMOVE FRONT PILLAR GARNISH LH (See  REMOVAL  )
  39. REMOVE FRONT PILLAR GARNISH RH (See  REMOVAL  )
  40. REMOVE NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY (See  REMOVAL  )
  41. REMOVE NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY (See  REMOVAL  )
  42. REMOVE NO. 3 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY (See  REMOVAL  )
  43. REMOVE FRONT STEREO COMPONENT SPEAKER ASSEMBLY (See  REMOVAL  )
  44. REMOVE NO. 2 CONSOLE BOX DUCT (for Automatic Transmission) (See  REMOVAL  )
  45. REMOVE NO. 1 CONSOLE BOX DUCT (for Automatic Transmission) (See  REMOVAL  )
  46. REMOVE NO. 2 CONSOLE BOX DUCT (for Manual Transmission) (See  REMOVAL  )
  47. DISCONNECT PASSENGER AIRBAG CONNECTOR
  48. REMOVE INSTRUMENT PANEL SAFETY PAD ASSEMBLY (See  REMOVAL  )
  49. REMOVE NO. 3 HEATER TO REGISTER DUCT (See  DISASSEMBLY  )
  50. REMOVE SIDE NO. 2 DEFROSTER NOZZLE DUCT (See  DISASSEMBLY  )
  51. REMOVE DEFROSTER NOZZLE ASSEMBLY (See  DISASSEMBLY  )
  52. REMOVE NAVIGATION ANTENNA ASSEMBLY
    1. Disengage the 2 clamps.
    2. Remove the 2 screws and navigation antenna.

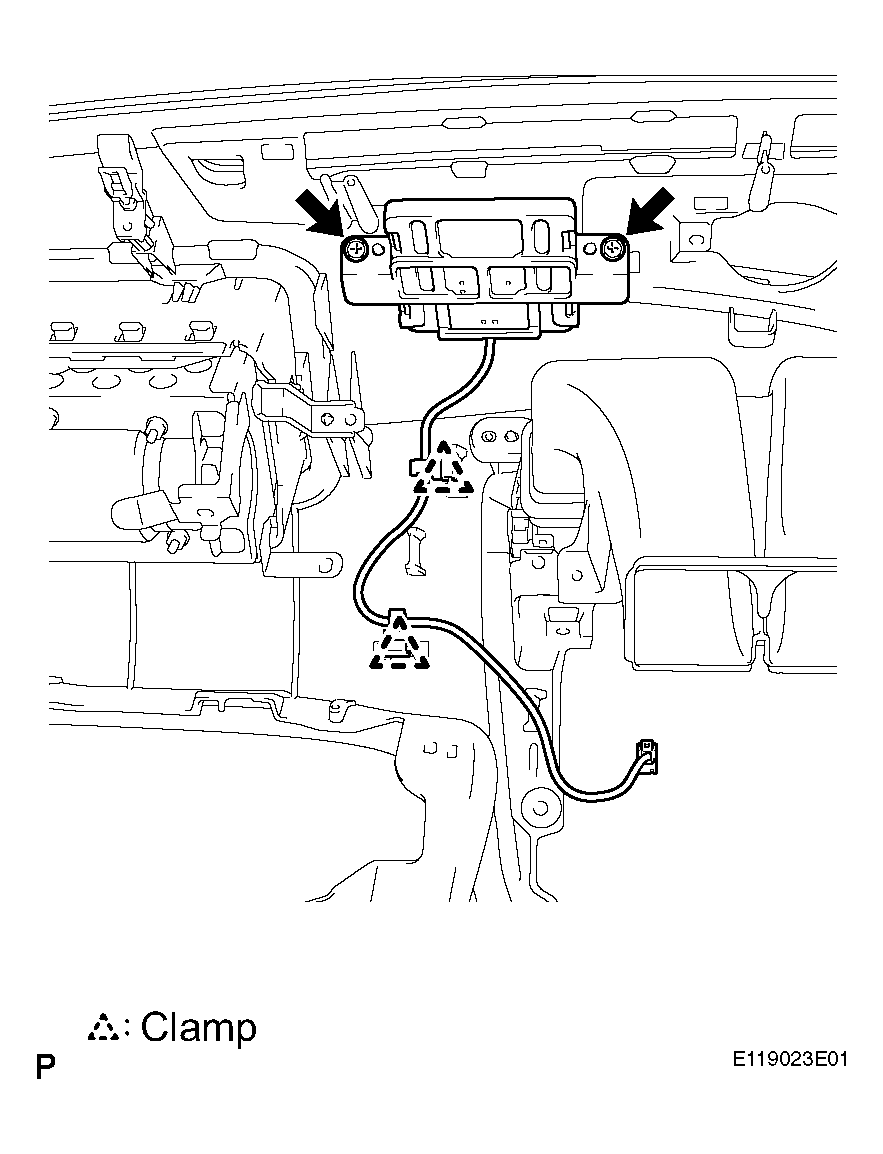

Fig 1: Identifying Navigation Antenna Screws
G04050550Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
