Luggage Compartment Door: Adjustment

HINT:

• Centering bolts are used to mount the door hinge to the vehicle body and door. The door cannot be adjusted with the centering bolts on. Substitute the centering bolts with standard bolts (with washers) when making adjustments.
• A bolt without a torque specification is shown in the standard bolt table.

Fig 1: Identifying Centering & Standard Bolt

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. REMOVE LUGGAGE COMPARTMENT DOOR ASSIST GRIP (See Step 2 in  REMOVAL  )
2. REMOVE LUGGAGE LOCK CONTROL CABLE PLATE (See Step 2 in  DISASSEMBLY   )
3. REMOVE LUGGAGE COMPARTMENT DOOR INSIDE HANDLE (See Step 3 in  DISASSEMBLY   )
4. REMOVE LUGGAGE COMPARTMENT DOOR COVER (See Step 5 in  REMOVAL  )
5. REMOVE NO. 2 LUGGAGE COMPARTMENT TRIM COVER
6. REMOVE DECK SIDE TRIM BOX LH
7. REMOVE DECK SIDE TRIM BOX RH
8. REMOVE ROPE HOOK ASSEMBLY (See Step 5 in  REMOVAL  )
9. REMOVE REAR LUGGAGE COMPARTMENT TRIM COVER (See Step 6 in  REMOVAL  )
10. ADJUST LUGGAGE COMPARTMENT DOOR

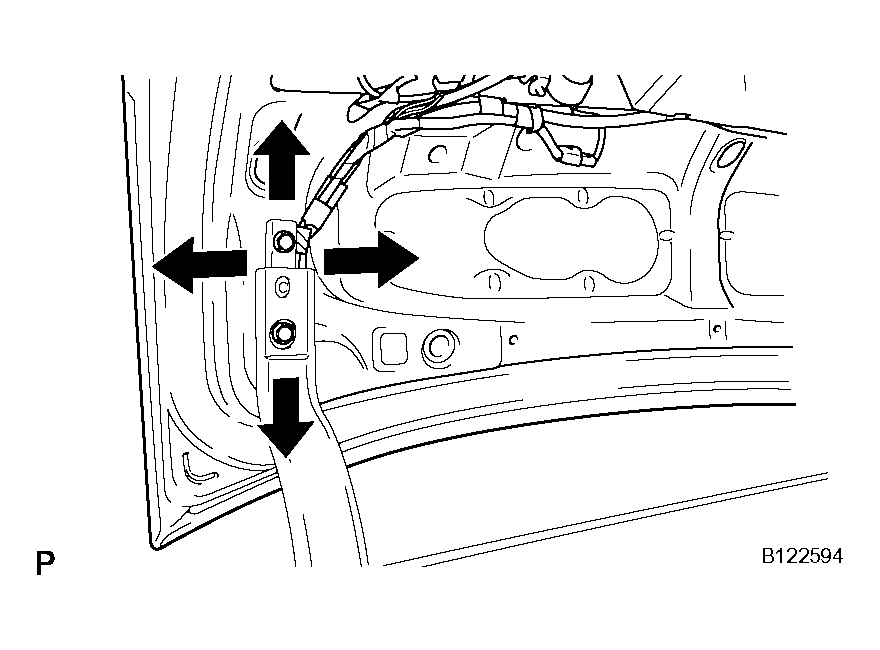

    1. Horizontally and vertically adjust the door by loosening the door side hinge bolts.
       Fig 2: Adjusting Luggage Compartment Door

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

       Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

    2. Adjust the striker position by slightly loosening the striker mounting screws and hitting the striker with a plastic hammer.
    3. Tighten the striker mounting screws after the adjustment.
    Fig 3: Adjusting Striker Position

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

11. INSTALL REAR LUGGAGE COMPARTMENT TRIM COVER
12. INSTALL ROPE HOOK ASSEMBLY
13. INSTALL DECK SIDE TRIM BOX LH
14. INSTALL DECK SIDE TRIM BOX RH
15. INSTALL NO. 2 LUGGAGE COMPARTMENT TRIM COVER
16. INSTALL LUGGAGE COMPARTMENT DOOR COVER
17. INSTALL LUGGAGE COMPARTMENT DOOR INSIDE HANDLE (See Step 13 in  REASSEMBLY   )
18. INSTALL LUGGAGE LOCK CONTROL CABLE PLATE (See Step 14 in  REASSEMBLY   )
19. INSTALL LUGGAGE COMPARTMENT DOOR ASSIST GRIP
