Luggage Compartment Door: Reassembly

INSTALL LICENSE PLATE LIGHT ASSEMBLY LH (See INSTALLATION )
INSTALL LICENSE PLATE LIGHT ASSEMBLY RH
INSTALL LUGGAGE COMPARTMENT OUTSIDE DOOR GARNISH SUB-ASSEMBLY
INSTALL REAR LIGHT ASSEMBLY LH (See Step 13 in INSTALLATION )
INSTALL REAR LIGHT ASSEMBLY RH
INSTALL TELEVISION CAMERA ASSEMBLY (w/ Parking Assist Monitor System) (See INSTALLATION )
INSTALL LUGGAGE LOCK CONTROL CABLE CLAMP
1. Engage the clamp and install the luggage lock control cable clamp.

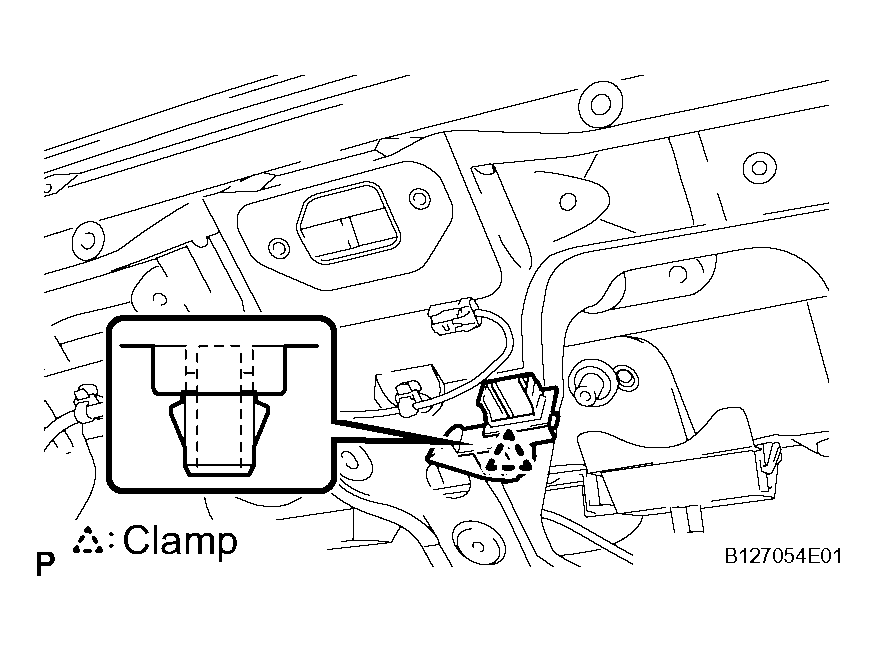

Fig 1: Installing Luggage Lock Control Cable Clamp
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL LUGGAGE COMPARTMENT DOOR LOCK ASSEMBLY (See INSTALLATION )
INSTALL LUGGAGE COMPARTMENT DOOR LOCK CYLINDER ASSEMBLY
1. Connect the luggage compartment door lock control cable.
2. Install the luggage compartment door lock cylinder with the nut.
  Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)
3. Connect the connector and clamp.

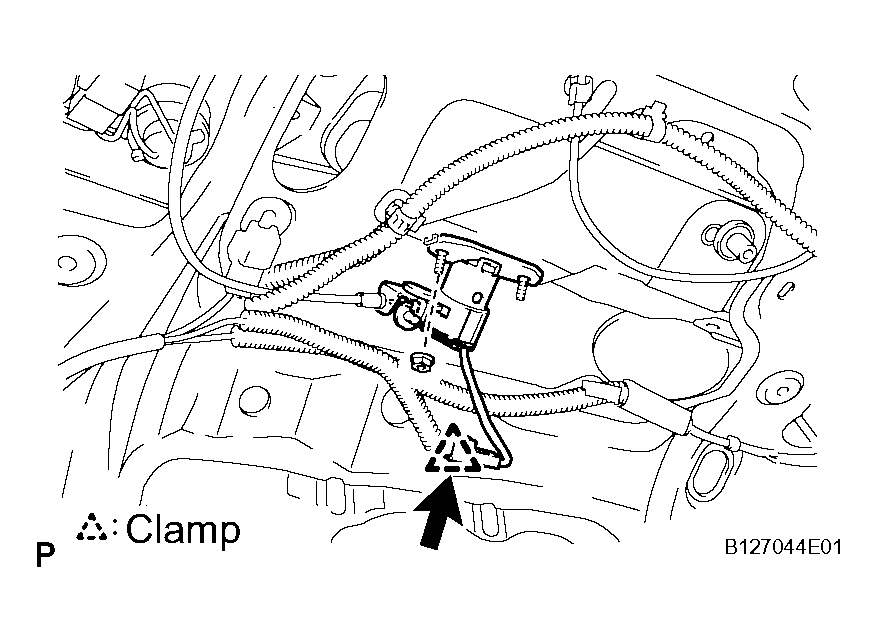

Fig 2: Connecting Connector & Clamp
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL LUGGAGE KEY ELECTRICAL SWITCH
INSTALL LUGGAGE COMPARTMENT DOOR REINFORCEMENT
INSTALL LUGGAGE COMPARTMENT DOOR COVER
INSTALL LUGGAGE COMPARTMENT DOOR INSIDE HANDLE
1. Install the luggage compartment inside door handle to the luggage compartment door lock control cable.
Fig 3: Installing Luggage Compartment Inside Door Handle To Luggage Compartment Door Lock Control Cable
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL LUGGAGE LOCK CONTROL CABLE PLATE
1. Engage the 2 claws and install the luggage lock control cable plate.
Fig 4: Installing Luggage Lock Control Cable Plate
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL LUGGAGE COMPARTMENT DOOR ASSIST GRIP
