Rear Bumper: Removal

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
REMOVE NO. 2 LUGGAGE COMPARTMENT TRIM COVER (w/ Clearance Sonar System)
REMOVE DECK SIDE TRIM BOX LH (w/ Clearance Sonar System)
REMOVE DECK SIDE TRIM BOX RH (w/ Clearance Sonar System)

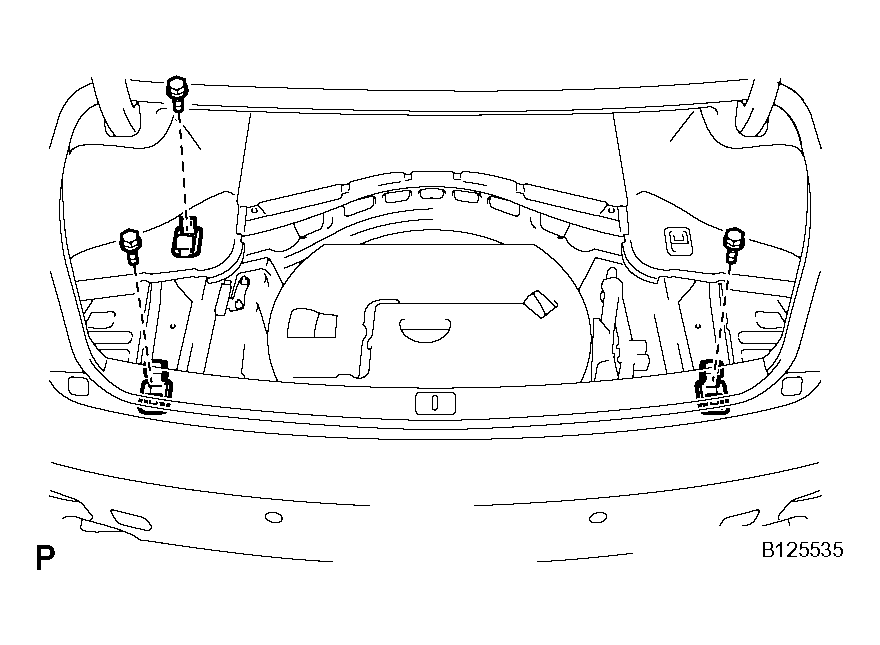

REMOVE ROPE HOOK ASSEMBLY (w/ Clearance Sonar System)
1. Remove the 3 bolts and 3 rope hook assemblies.

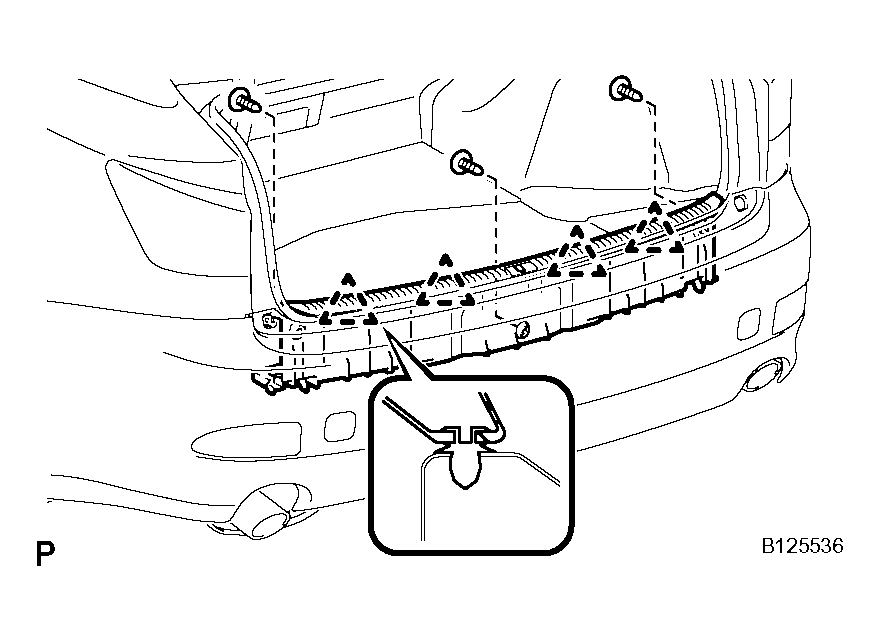

REMOVE REAR LUGGAGE COMPARTMENT TRIM COVER (w/ Clearance Sonar System)
1. Remove the triangle reflector.

  Fig 1: Removing Triangle Reflector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using a clip remover, remove the 3 clips.
3. Disengage the 4 clips and remove the rear luggage compartment trim cover.
Fig 2: Removing Rear Luggage Compartment Trim Cover
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

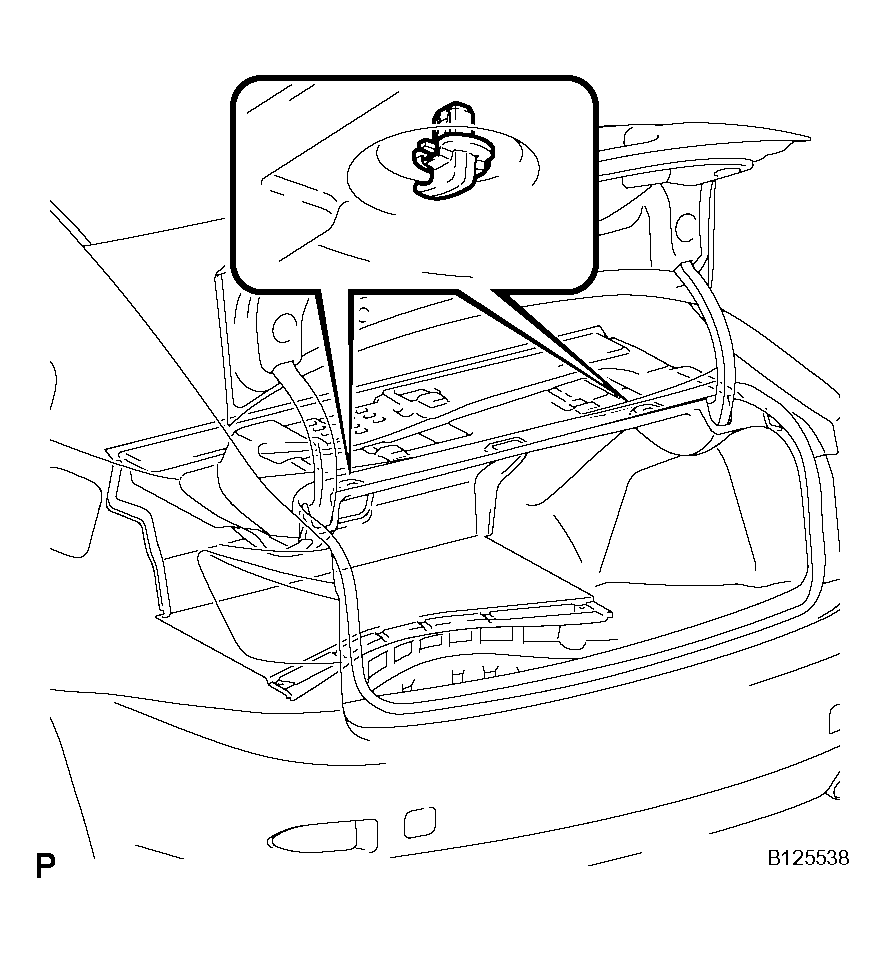

REMOVE NO. 2 ROOM LIGHT ASSEMBLY (w/ Clearance Sonar System)
1. Disengage the claw and disconnect the No. 2 room light assembly.
2. Disconnect the connector and remove the No. 2 room light assembly.
Fig 3: Disconnecting Connector & Removing No. 2 Room Light Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

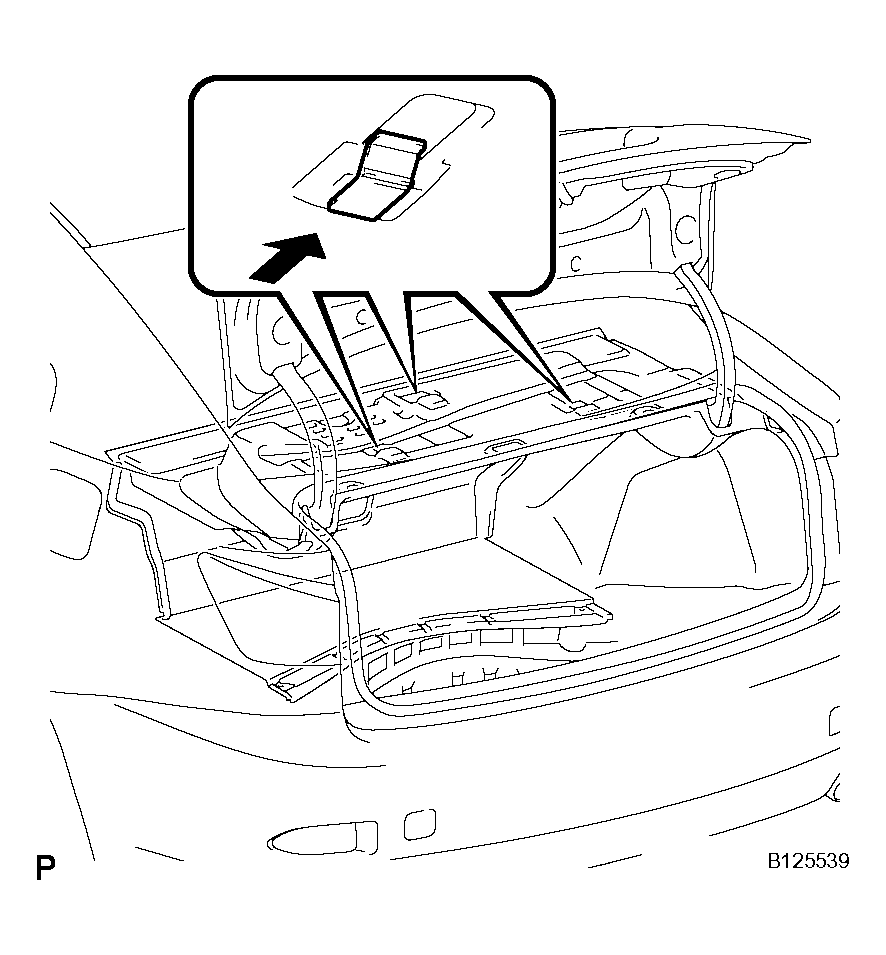

REMOVE ROPE HOOK (w/ Clearance Sonar System)
1. Remove the 2 rope hooks.
Fig 4: Removing Rope Hooks
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

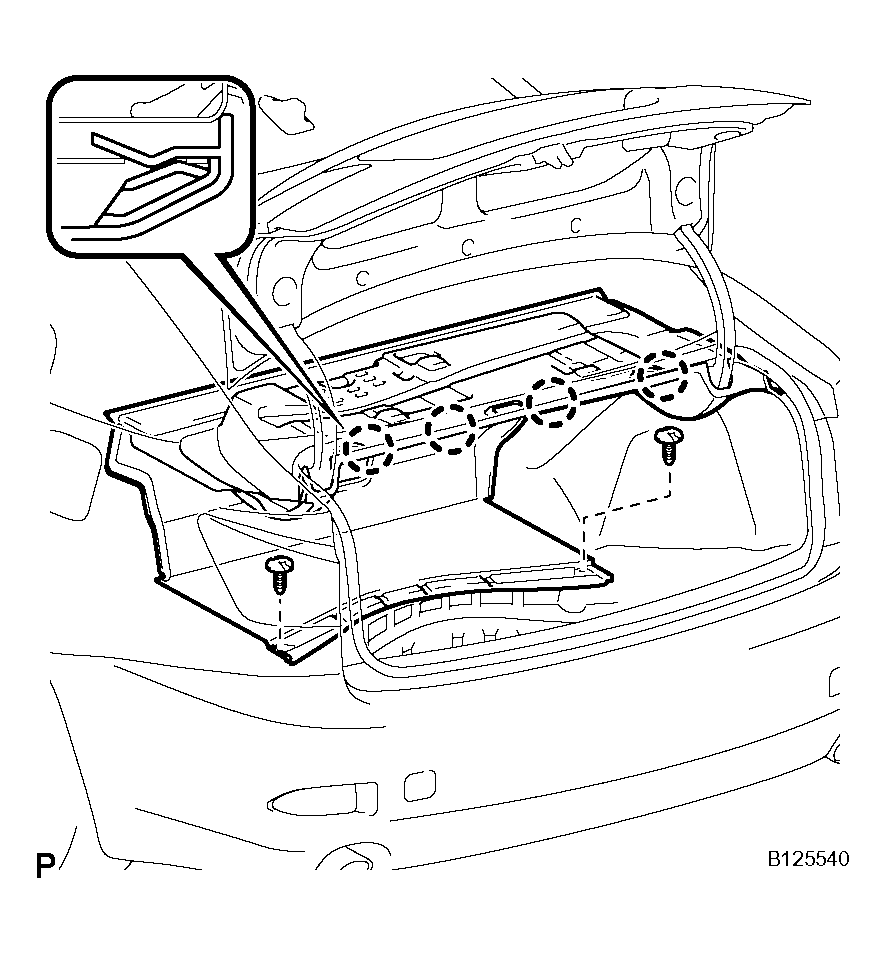

REMOVE FRONT LUGGAGE COMPARTMENT TRIM COVER (w/ Clearance Sonar System)
1. Remove the 3 luggage compartment trim hooks.

  Fig 5: Removing Luggage Compartment Trim Hooks
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using a clip remover, remove the 2 clips.
3. Disengage the 4 claws and remove the front luggage compartment trim cover.
Fig 6: Removing Front Luggage Compartment Trim Cover
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK (w/ Clearance Sonar System)
1. Remove the screw and No. 1 luggage compartment trim hook.
Fig 7: Removing Screw & No. 1 Luggage Compartment Trim Hook
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

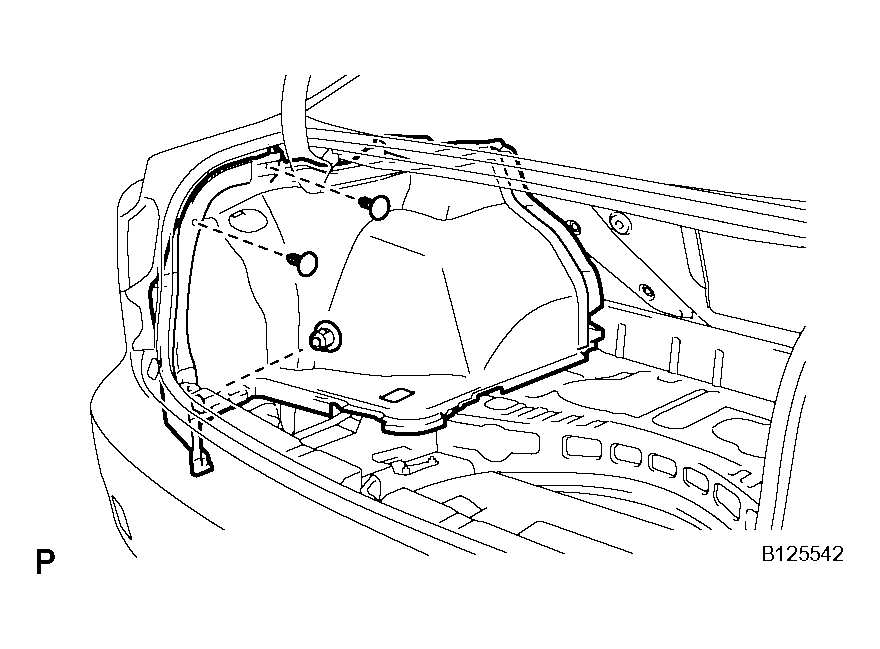

REMOVE SIDE LUGGAGE COMPARTMENT TRIM COVER LH (w/ Clearance Sonar System)
1. Using a clip remover, remove the 3 clips and side luggage compartment trim cover LH.
Fig 8: Removing Clips & Side Luggage Compartment Trim Cover LH
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

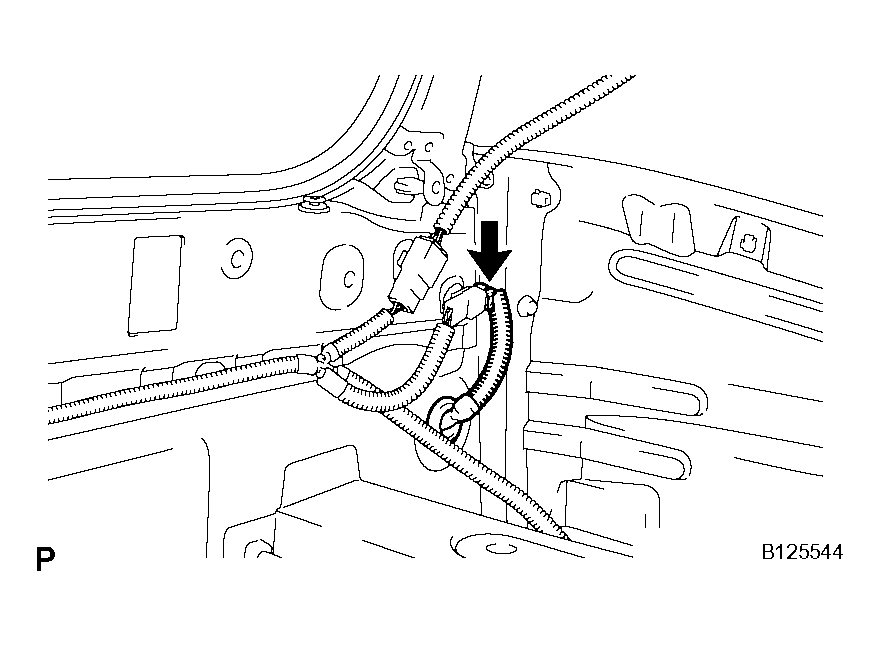

DISCONNECT NO. 3 LUGGAGE ROOM WIRE (w/ Clearance Sonar System)
1. Disconnect the No. 3 luggage room wire connector.
2. Disengage the grommet.
Fig 9: Disconnecting No. 3 Luggage Room Wire Connector
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NO. 1 REAR BUMPER PLATE
1. Using a screwdriver, disengage the 2 claws and remove the No.1 rear bumper plate.
  HINT:
  - Tape the screwdriver tip before use.
  - Use the same procedures for the RH side and LH side.
Fig 10: Removing No.1 Rear Bumper Plate
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE REAR BUMPER ASSEMBLY

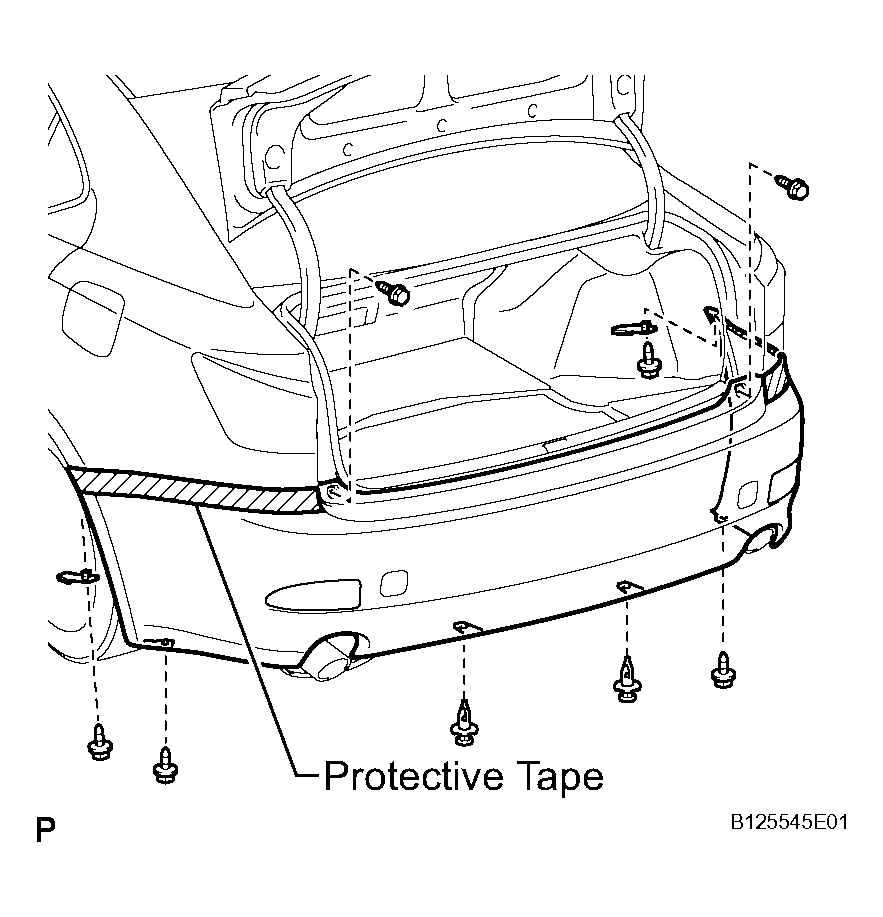

1. Put protective tape around the rear bumper assembly.
2. Using a clip remover, remove the 2 clips.
3. Remove the 6 screws and 2 rear bumper seal brackets.

  Fig 11: Removing Screws & Rear Bumper Seal Brackets
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

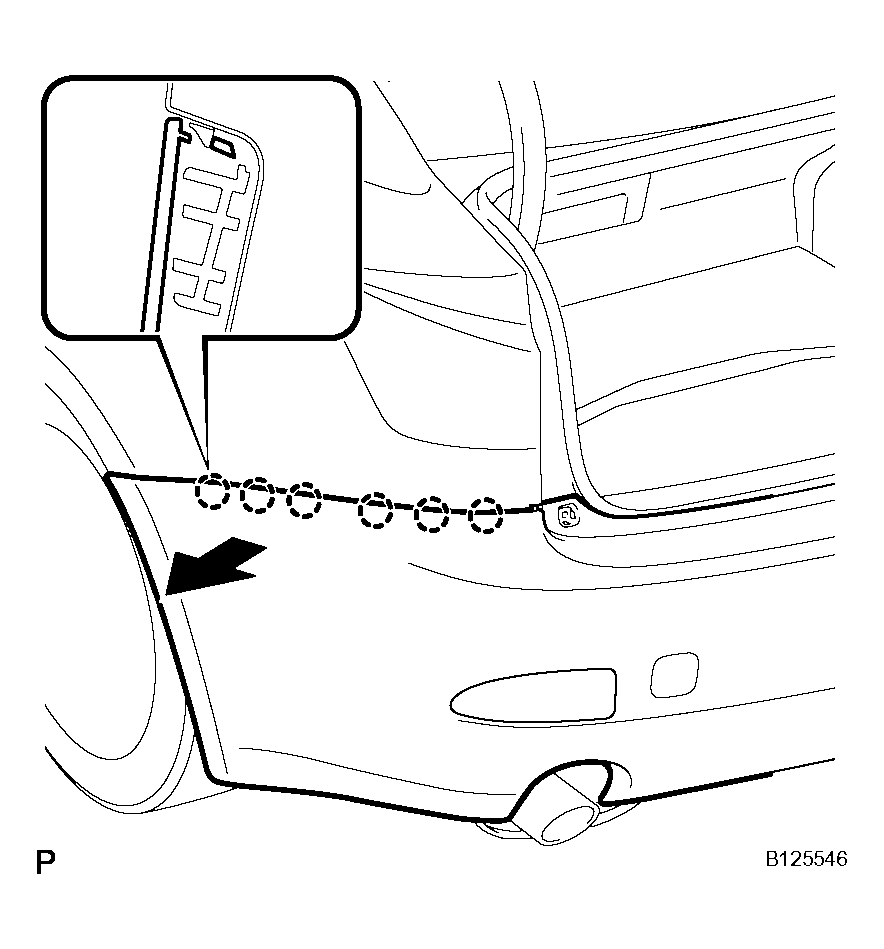

4. Disengage the 6 claws and disconnect the rear bumper assembly.
  HINT:

  Use the same procedures for the RH side and LH side.

  Fig 12: Disconnecting Rear Bumper Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

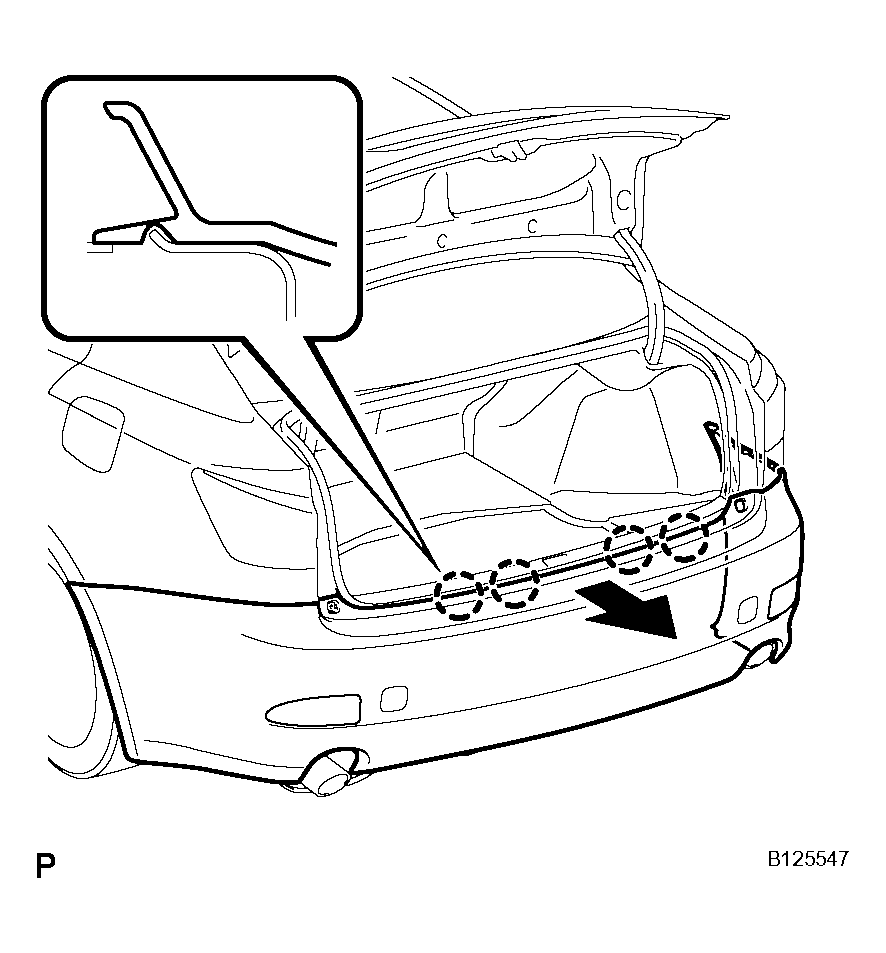

5. Disengage the 4 claws and remove the rear bumper assembly.
Fig 13: Removing Rear Bumper Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
