Instrument Panel Safety Pad: Disassembly

  1. REMOVE SIDE NO. 1 DEFROSTER NOZZLE DUCT
    1. Remove the screw and duct.
      Fig 1: Identifying Side No. 1 Defroster Nozzle Duct
      G04023221Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE SIDE NO. 2 DEFROSTER NOZZLE DUCT
    1. Remove the screw and duct.
      Fig 2: Identifying Side No. 2 Defroster Nozzle Duct
      G04023222Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE DEFROSTER NOZZLE ASSEMBLY
    1. Remove the 3 screws and nozzle.

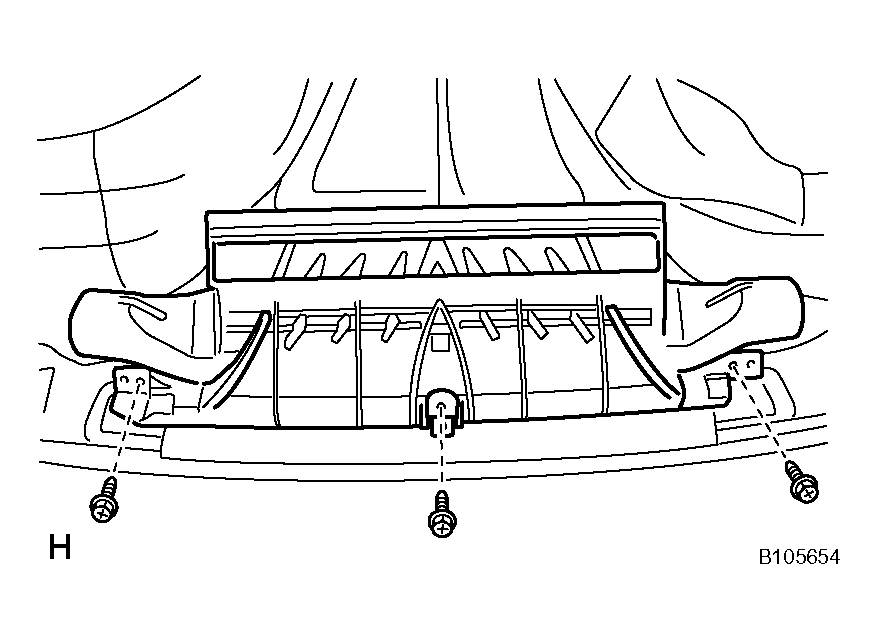

      Fig 3: Identifying Defroster Nozzle
      G04023223Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE NO. 3 HEATER TO REGISTER DUCT
    1. Remove the 3 screws and duct.

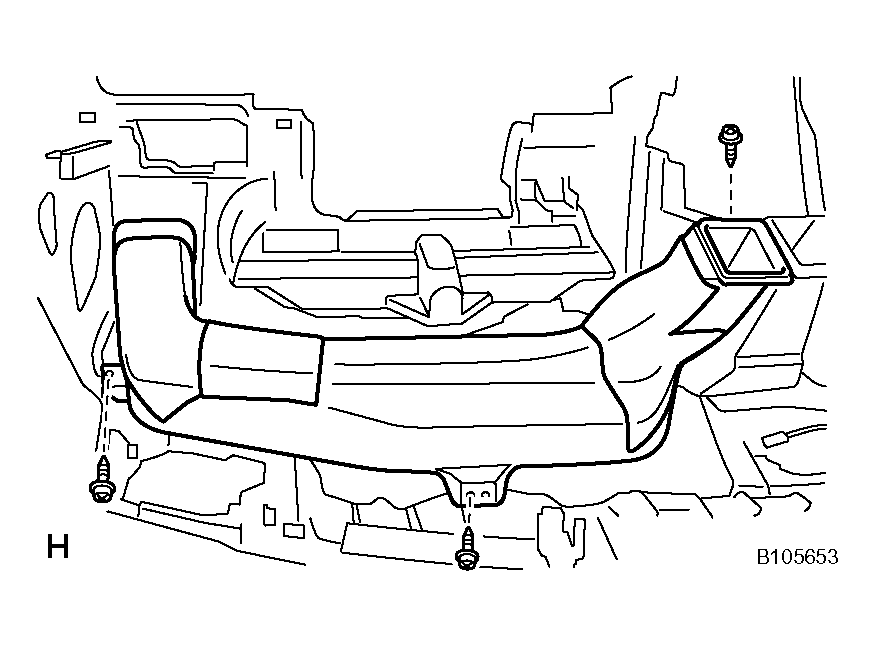

      Fig 4: Identifying No. 3 Heater To Register Duct
      G04023224Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE NO. 1 HEATER TO REGISTER DUCT
    1. Remove the 3 screws and duct.

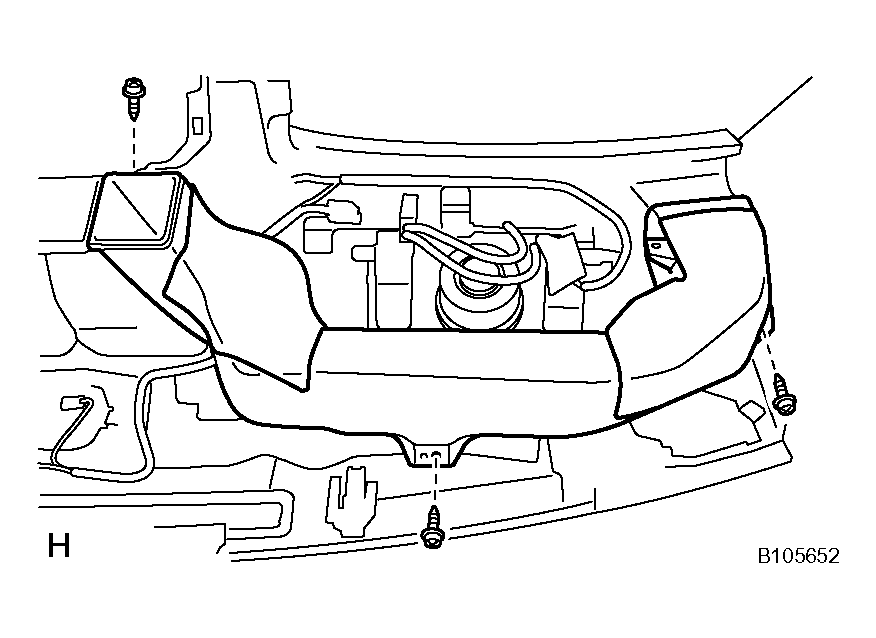

      Fig 5: Identifying No. 1 Heater To Register Duct
      G04023225Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE NO. 2 HEATER TO REGISTER DUCT
    1. Remove the 4 screws and duct.

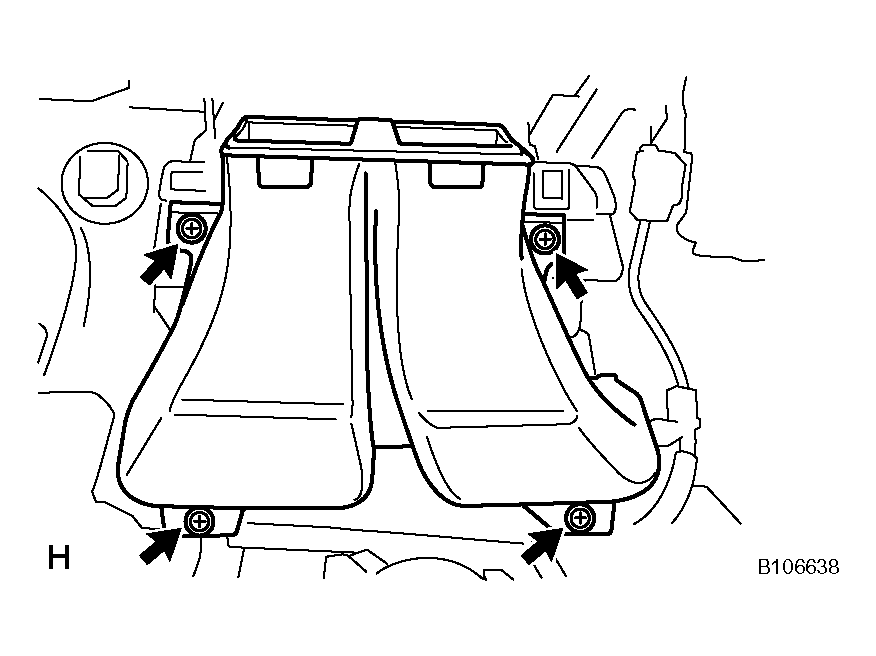

      Fig 6: Identifying No. 2 Heater To Register Duct
      G04023226Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE INSTRUMENT PANEL NO. 2 REGISTER ASSEMBLY
    1. Using a screwdriver, detach the 4 claws.

      HINT:

      Tape the screwdriver tip before use.

    2. Using a screwdriver, detach the 6 clips and remove the register.

      HINT:

      Tape the screwdriver tip before use.

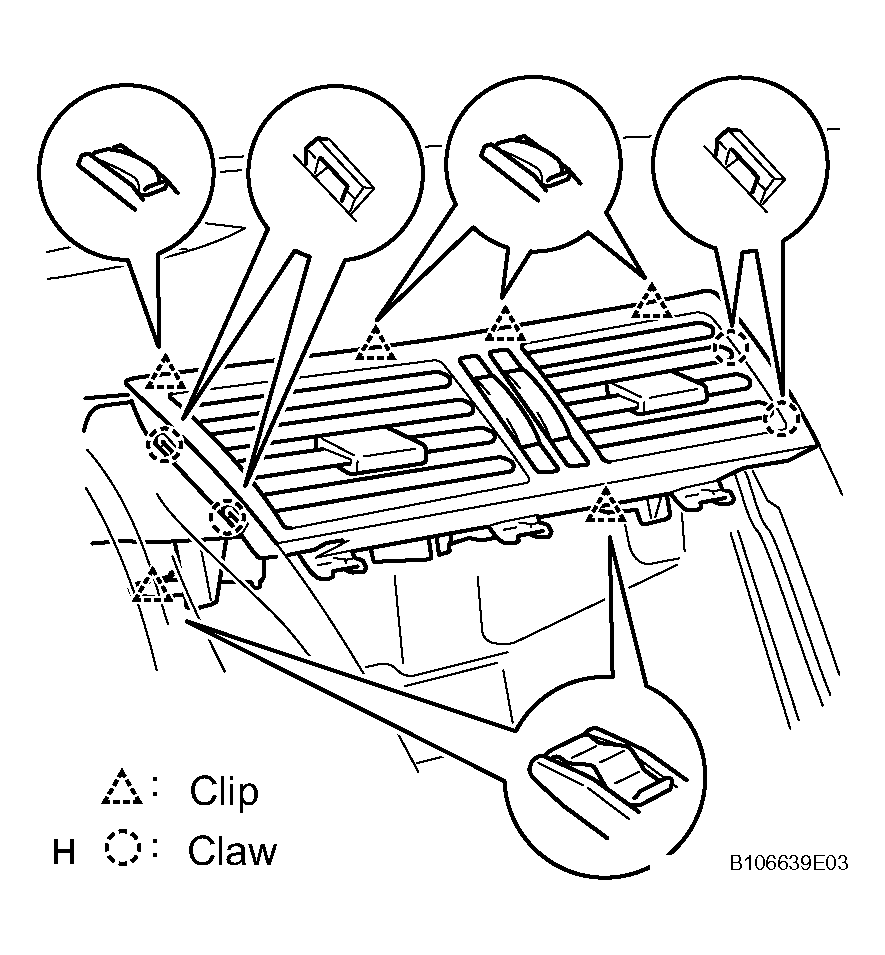

      Fig 7: Identifying Instrument Panel No. 2 Register
      G04023227Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE INSTRUMENT PANEL NO. 3 REGISTER ASSEMBLY
    1. Using a screwdriver, detach the 2 claws.

      HINT:

      Tape the screwdriver tip before use.

    2. Using a screwdriver, detach the 6 claws and remove the register.

      HINT:

      Tape the screwdriver tip before use.

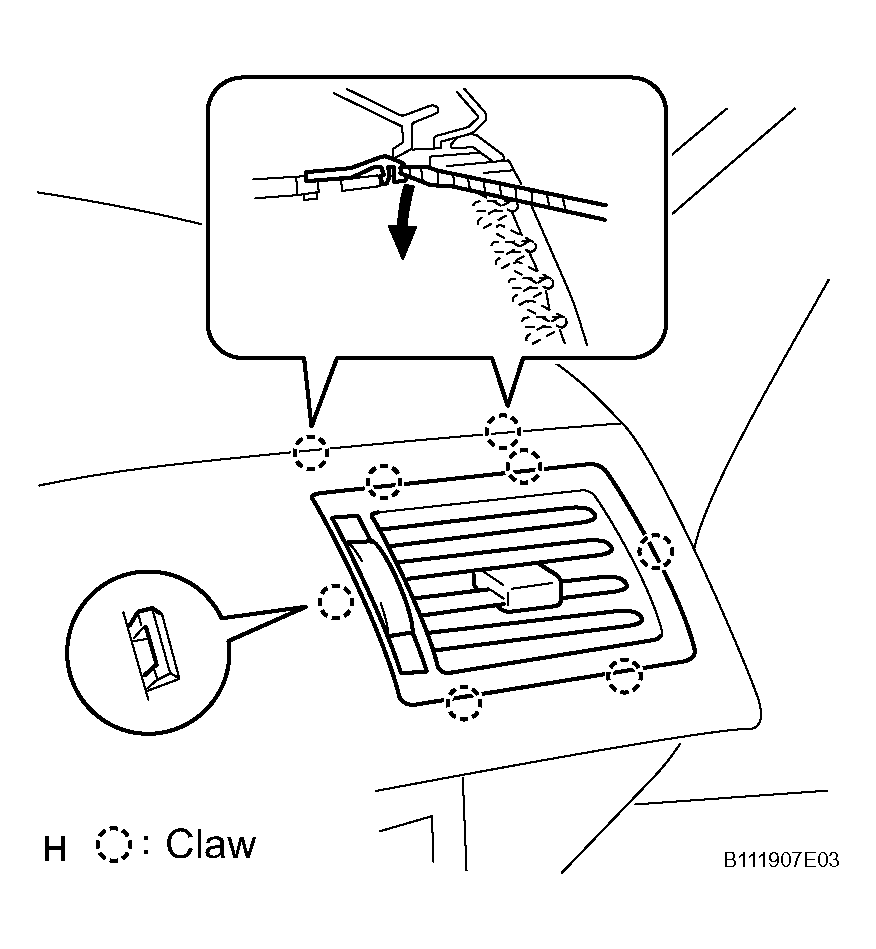

      Fig 8: Identifying Instrument Panel No. 3 Register
      G04023228Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE INSTRUMENT PANEL NO. 1 REGISTER ASSEMBLY
    1. Using a screwdriver, detach the 6 claws and remove the register.

      HINT:

      Tape the screwdriver tip before use.

  10. REMOVE FRONT PASSENGER AIRBAG ASSEMBLY (See  REMOVAL  )
    Fig 9: Identifying Front Passenger Airbag
    G04023229Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE INSTRUMENT PANEL NO. 2 SPEAKER PANEL SUB-ASSEMBLY
    1. Using a screwdriver, detach the 2 clips and 2 claws.

      HINT:

      Tape the screwdriver tip before use.

    2. Remove the speaker panel.
      Fig 10: Identifying Instrument Panel No. 2 Speaker Panel
      G04023230Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE INSTRUMENT PANEL NO. 1 SPEAKER PANEL SUB-ASSEMBLY
    1. Using a screwdriver, detach the 2 clips and 2 claws.

      HINT:

      Tape the screwdriver tip before use.

    2. Remove the speaker panel.
      Fig 11: Identifying Instrument Panel No. 1 Speaker Panel
      G04023231Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE NO.1 SPEAKER HOLE COVER
    1. Using a screwdriver, detach the 4 clips and remove the speaker panel.

      HINT:

      Tape the screwdriver tip before use.

  14. REMOVE FRONT NO. 2 SPEAKER RH (See  REMOVAL  )
  15. REMOVE FRONT NO. 2 SPEAKER LH (See  REMOVAL  )
    Fig 12: Identifying No.1 Speaker Hole Cover
    G04023232Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE FRONT STEREO COMPONENT SPEAKER (See  REMOVAL  )
  17. REMOVE ENGINE SWITCH
    1. Remove the engine switch.

      For 3GR-FSE (see REMOVAL )

      For 3UZ-FE (see REMOVAL )
