Front No. 2 Speaker: Removal

HINT:

• Use the same procedures for the LH side and RH side.
• The procedures listed below are for the LH side.

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
   CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
2. REMOVE NO. 2 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY
   1. Using a screwdriver, detach the 2 clips and 2 claws.

      HINT:

      Tape the screwdriver tip before use.

   2. Remove the speaker panel.
3. REMOVE FRONT NO. 2 SPEAKER ASSEMBLY
   Fig 1: Identifying No. 2 Instrument Panel Speaker Panel Sub-Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

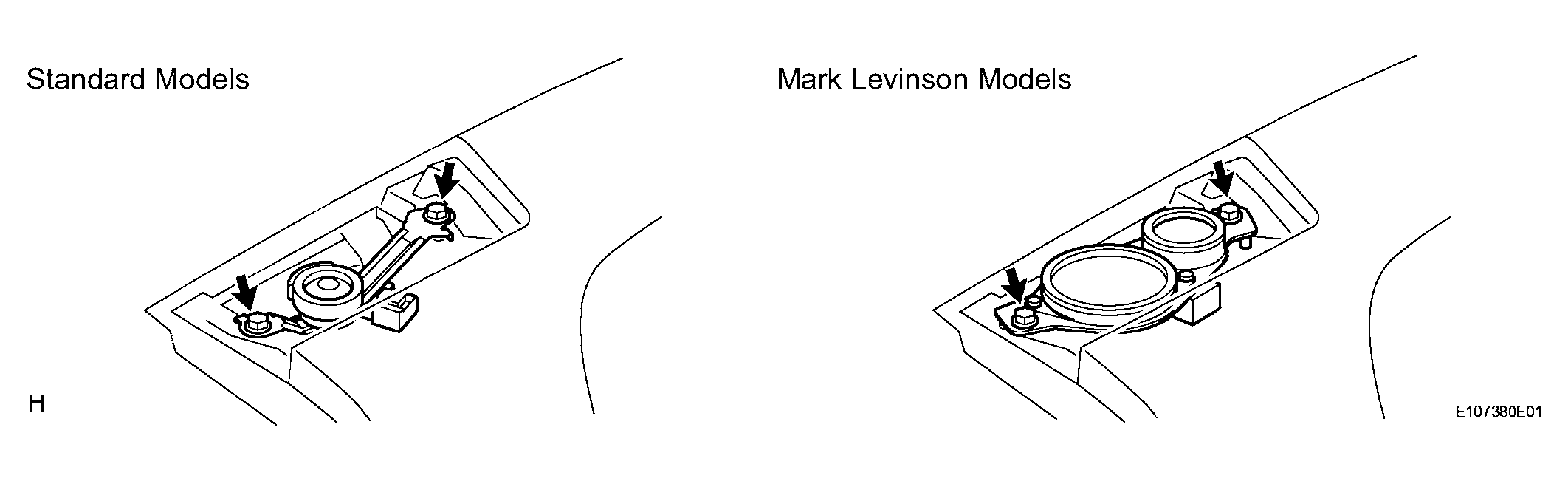

   Fig 2: Identifying Front No. 2 Speaker Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. Remove the 2 bolts.
   2. Disconnect the connector and remove the speaker.

      HINT:

      Do not touch the cone part of the speaker.
