Engine Switch: Removal

WARNING: This page is about a different car, the 2006 Lexus GS 430. However, it is still accessible from the selected car via links, so may be relevant.
  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    NOTE: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag activation.
  2. REMOVE FRONT CONSOLE UPPER PANEL GARNISH ( REMOVAL  )
  3. REMOVE FRONT CONSOLE UPPER PANEL ASSEMBLY ( REMOVAL  )
  4. REMOVE INSTRUMENT PANEL FINISH PANEL END LH ( REMOVAL  )
  5. REMOVE FRONT DOOR SCUFF PLATE LH ( REMOVAL  )
  6. REMOVE FRONT DOOR OPENING TRIM COVER LH ( REMOVAL  )
  7. REMOVE INSTRUMENT SIDE PANEL LH (See  REMOVAL  )
  8. REMOVE INSTRUMENT PANEL NO. 1 SAFETY PAD SUB-ASSEMBLY (See  REMOVAL  )
  9. REMOVE DRIVER SIDE KNEE AIRBAG ASSEMBLY (See  REMOVAL  )
  10. REMOVE INSTRUMENT PANEL NO. 1 UNDER COVER SUB-ASSEMBLY (See  REMOVAL  )
  11. REMOVE ENGINE SWITCH
    1. Disconnect the switch connector.
    2. Detach the 2 claws and remove the switch.

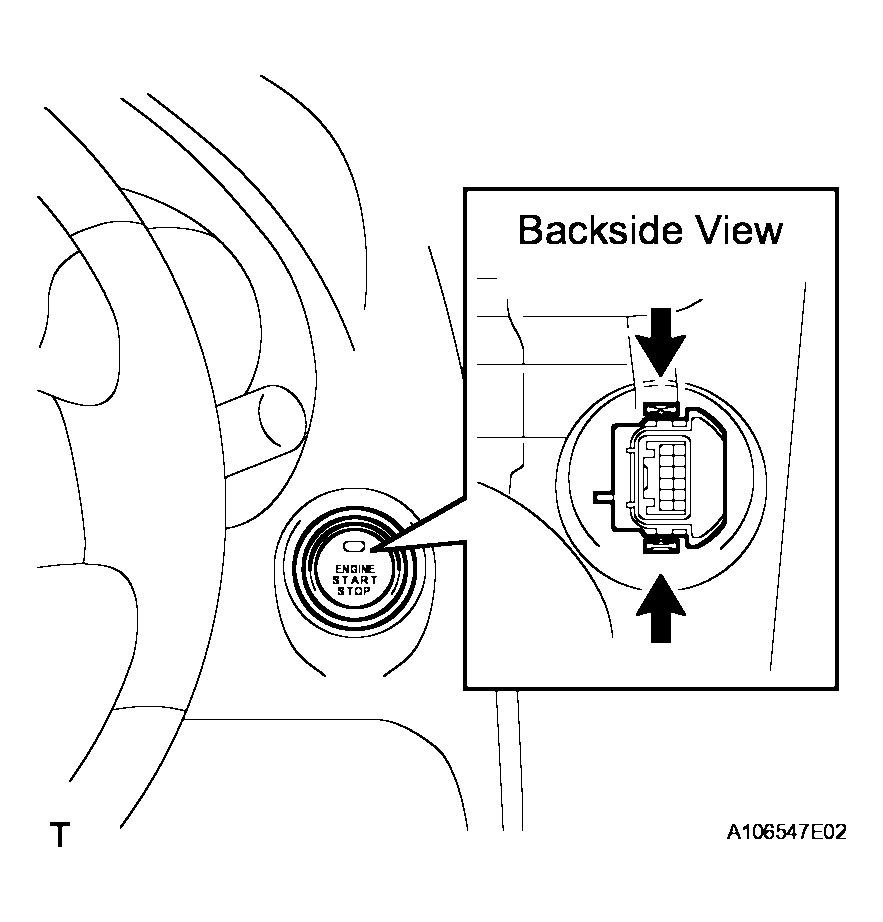

      Fig 1: Identifying Engine Switch
      G04028140Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
