Module/Frame Assembly: Removal

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Move glass panel to fully closed position.
  2. Disconnect and isolate negative battery cable.
  3. Remove sunroof opening trim lace. (Refer to BODY/SUNROOF/OPENING TRIM LACE - REMOVAL) .
  4. Remove control switch. (Refer to BODY/SUNROOF/CONTROL SWITCH - REMOVAL) .
  5. Remove headliner. (Refer to BODY/INTERIOR/HEADLINER - REMOVAL) .
  6. Disconnect wire harness push in fasteners and electrical connector from vehicle harness. See Fig 1.
  7. Disconnect drain tubes from sunroof housing.
  8. Cut foam support pad at rear of module if necessary.
  9. Remove two module bracket bolts and loosen the remaining fasteners.
  10. With the aid of a helper, remove fasteners attaching sunroof module assembly to roof panel. See Fig 2.
  11. Remove the sunshade. (Refer to BODY/SUNROOF/SUNSHADE - REMOVAL) .
  12. Remove the drive motor. (Refer to BODY/SUNROOF/DRIVE MOTOR - REMOVAL) .
  13. Remove the wire harness.
  14. Remove the trough guides. (Refer to BODY/SUNROOF/GUIDE ASSEMBLY - REMOVAL) .

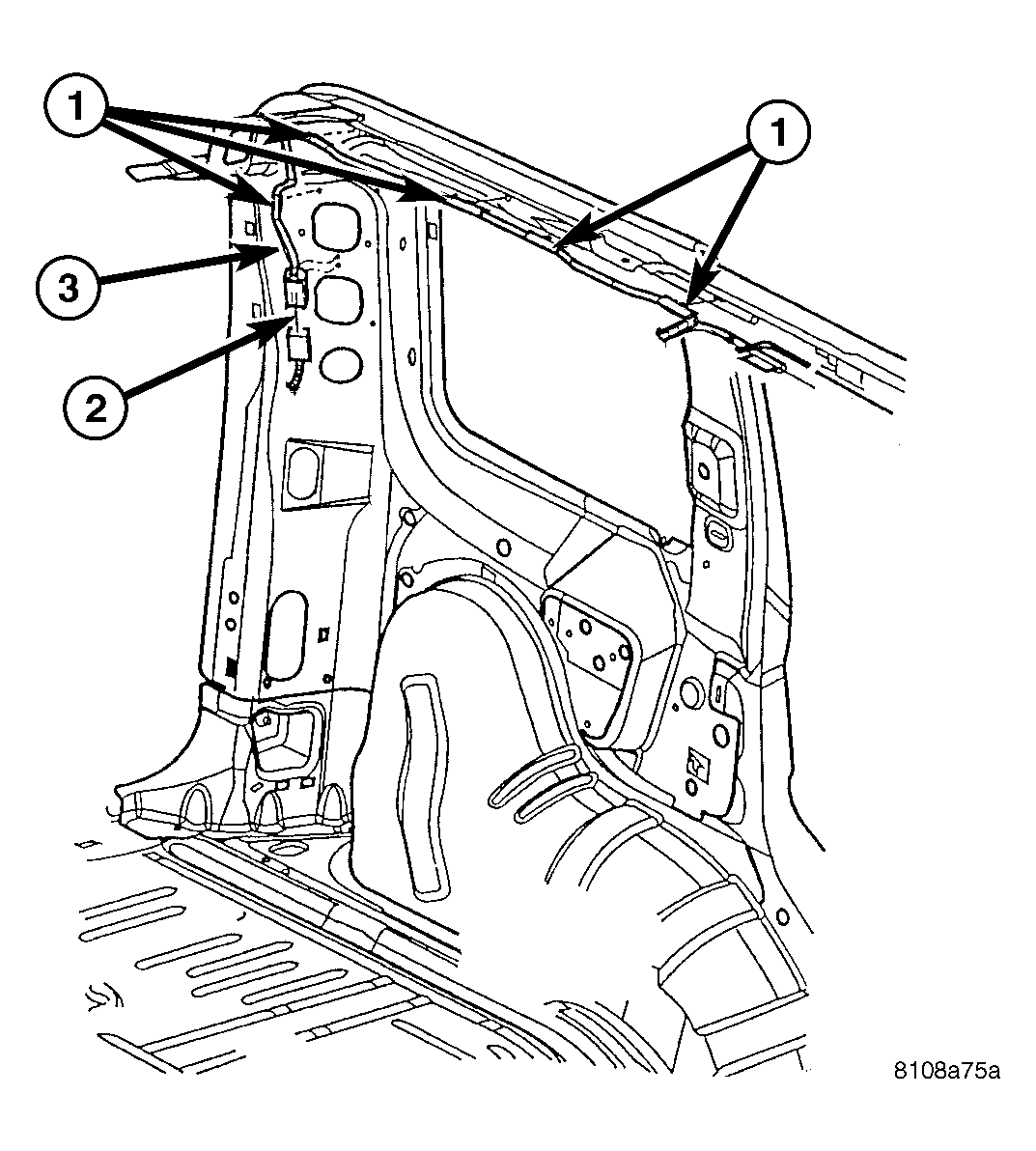

Fig 1: Wire Harness
GC0025868Courtesy of DAIMLERCHRYSLER CORP.
1 - CLIPS
2 - ELECTRICAL CONNECTOR
3 - WIRE HARNESS

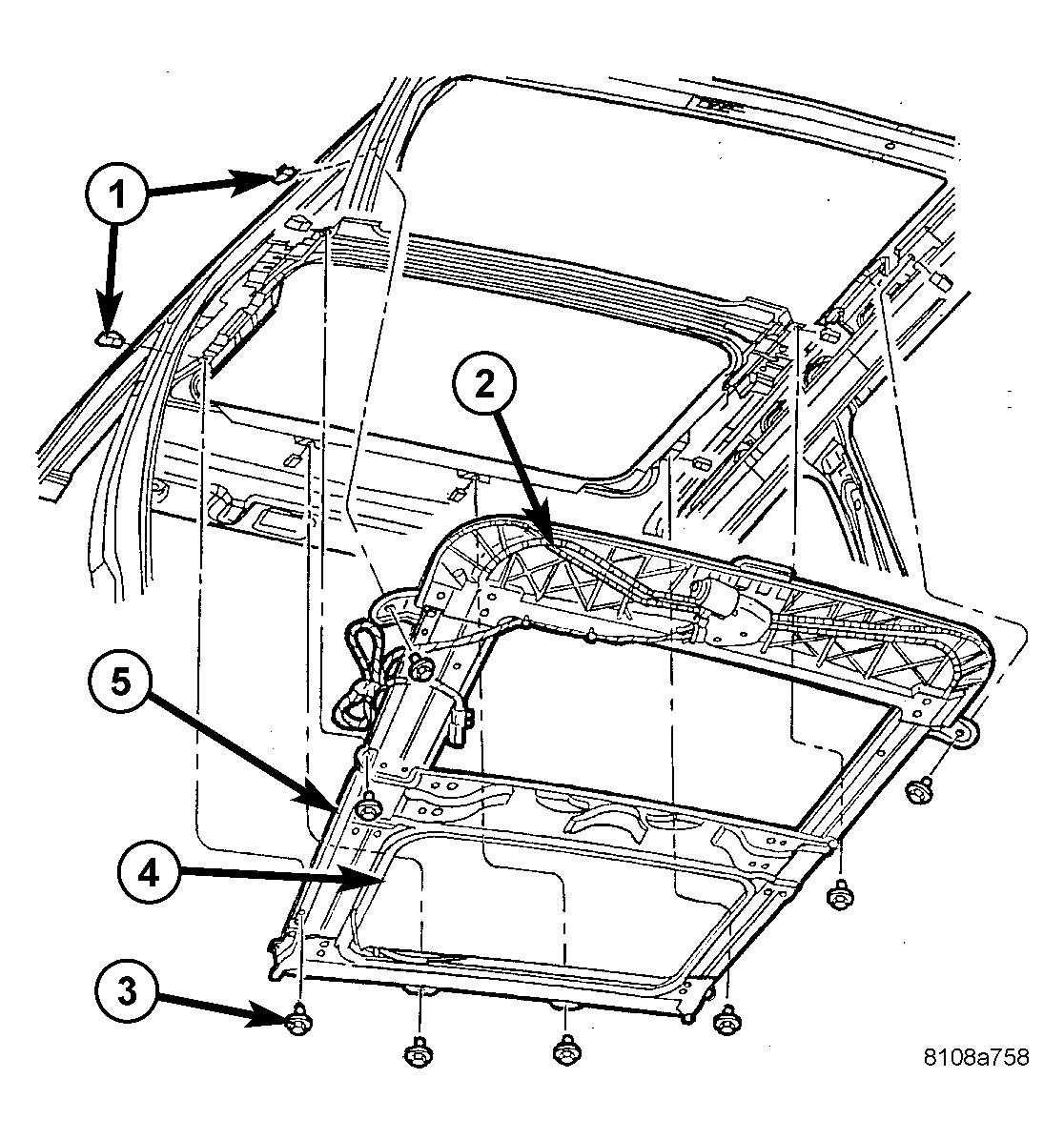

Fig 2: Module Assembly
GC0025867Courtesy of DAIMLERCHRYSLER CORP.
1 - U-NUTS
2 - DRIVE MOTOR
3 - BOLTS
4 - GLASS OPENING
5 - MODULE ASSEMBLY
