Trough Guide Assembly: Removal

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

Remove trough. (Refer to BODY/SUNROOF/TROUGH - REMOVAL) .
Disconnect the guide link. See Fig 1.

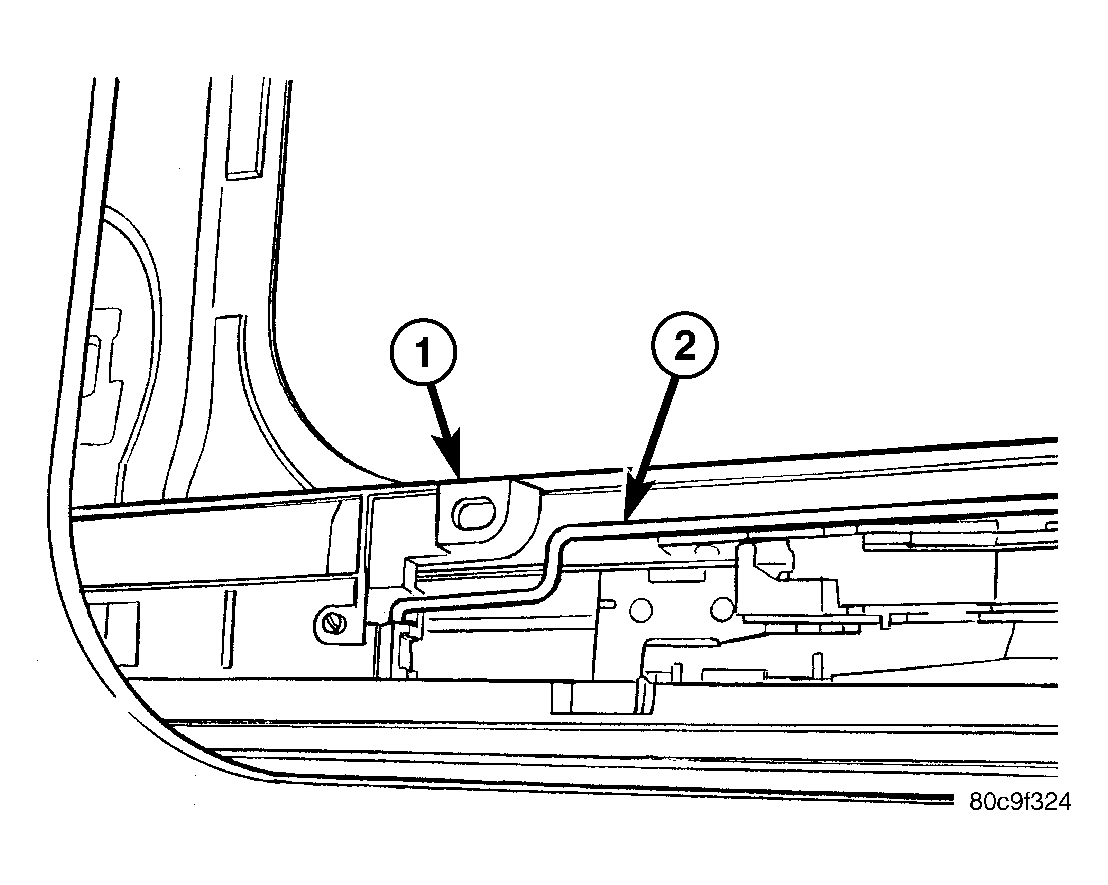

Fig 1: Trough Guides
Courtesy of DAIMLERCHRYSLER CORP.

1 - TROUGH GUIDE

2 - GUIDE LINK
Slide trough guide forward and disengage the sliders through the notches in the guide channels. See Fig 2.

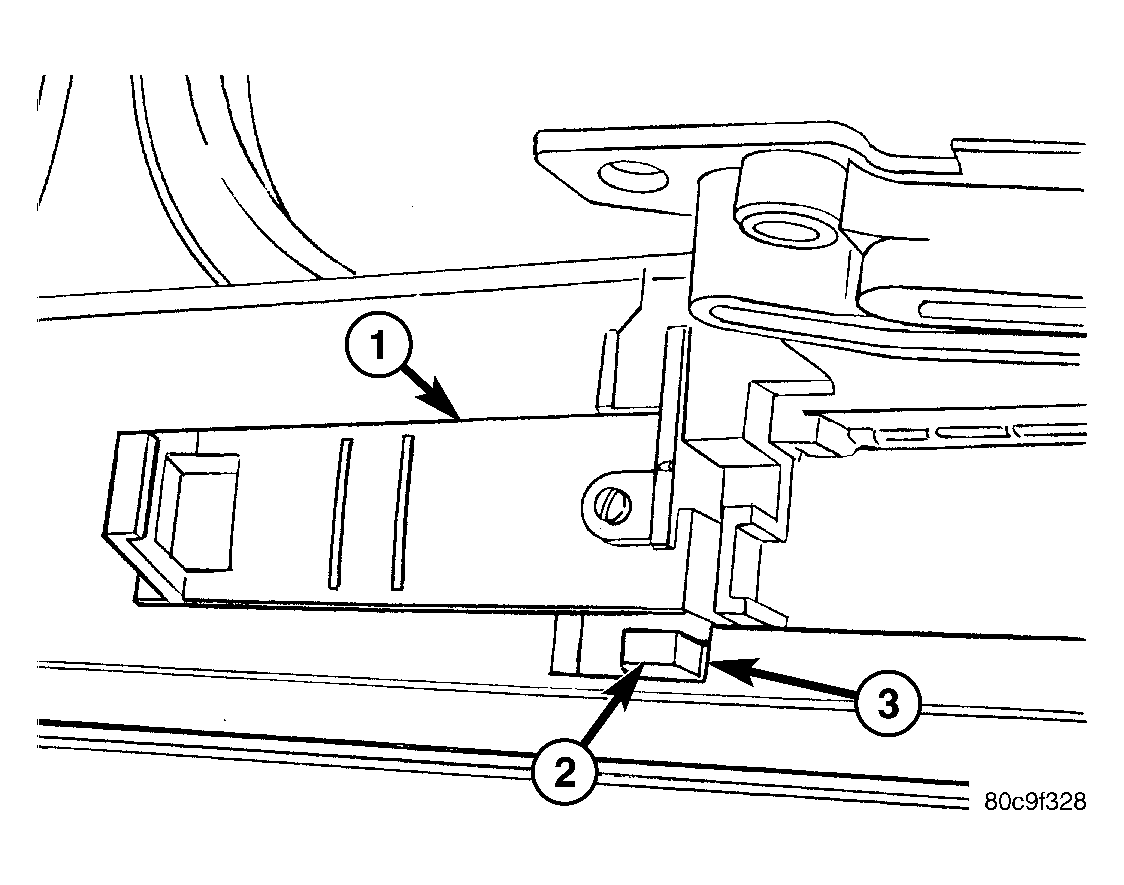

Fig 2: Trough Guide Removal

Courtesy of DAIMLERCHRYSLER CORP.

1 - TROUGH GUIDE

2 - SLIDER

3 - NOTCH
