Rear Side Door Window Reveal Molding Replacement

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

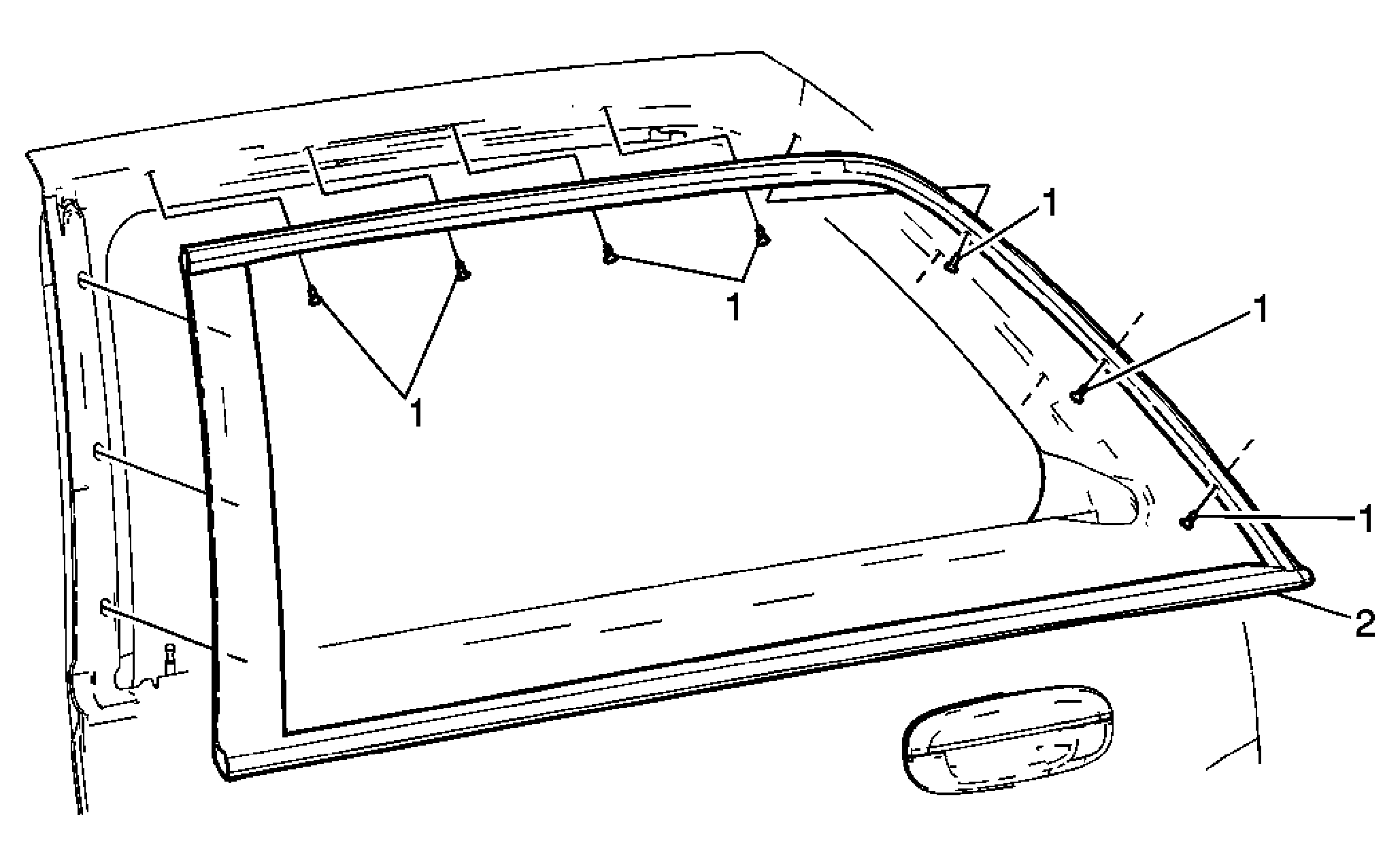

Fig 1: Reveal Molding Replacement - Rear Door Window

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Place the window in the full up position. Remove the rear door trim panel. Refer to Rear Side Door Trim Panel Replacement . Remove the rear door inner belt sealing strip. Refer to Sealing Strip Replacement - Rear Door Window Belt Inner . Remove the rear door window garnish molding. Refer to Rear Side Door Opening Frame Garnish Molding Replacement . Remove the rear door water deflector. Refer to Rear Side Door Water Deflector Replacement . Remove the rear door window regulator. Refer to Rear Side Door Window Regulator Replacement . Remove the rear door window. Refer to Rear Side Door Window Replacement . Remove the rear door stationary window division channel. Refer to Rear Side Door Stationary Window and Front Channel Replacement .
1	Screw, Rear Door Window Reveal Molding (Qty: 7) Tighten: 1.3 N.m (12 lb in)
2	Reveal Molding, Rear Door Window Reveal Tip: Use a plastic flat-bladed tool to release the reveal molding retainers from the front of the door window frame. Pull the reveal molding from the window frame.

Callout

Component Name

NOTE: Refer to Fastener Notice .

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedures

Place the window in the full up position.
Remove the rear door trim panel. Refer to Rear Side Door Trim Panel Replacement .
Remove the rear door inner belt sealing strip. Refer to Sealing Strip Replacement - Rear Door Window Belt Inner .
Remove the rear door window garnish molding. Refer to Rear Side Door Opening Frame Garnish Molding Replacement .
Remove the rear door water deflector. Refer to Rear Side Door Water Deflector Replacement .
Remove the rear door window regulator. Refer to Rear Side Door Window Regulator Replacement .
Remove the rear door window. Refer to Rear Side Door Window Replacement .
Remove the rear door stationary window division channel. Refer to Rear Side Door Stationary Window and Front Channel Replacement .

Screw, Rear Door Window Reveal Molding (Qty: 7)

Tighten: 1.3 N.m (12 lb in)

Reveal Molding, Rear Door Window Reveal
Tip:

Use a plastic flat-bladed tool to release the reveal molding retainers from the front of the door window frame.
Pull the reveal molding from the window frame.
