Rear Side Door Opening Frame Garnish Molding Replacement

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

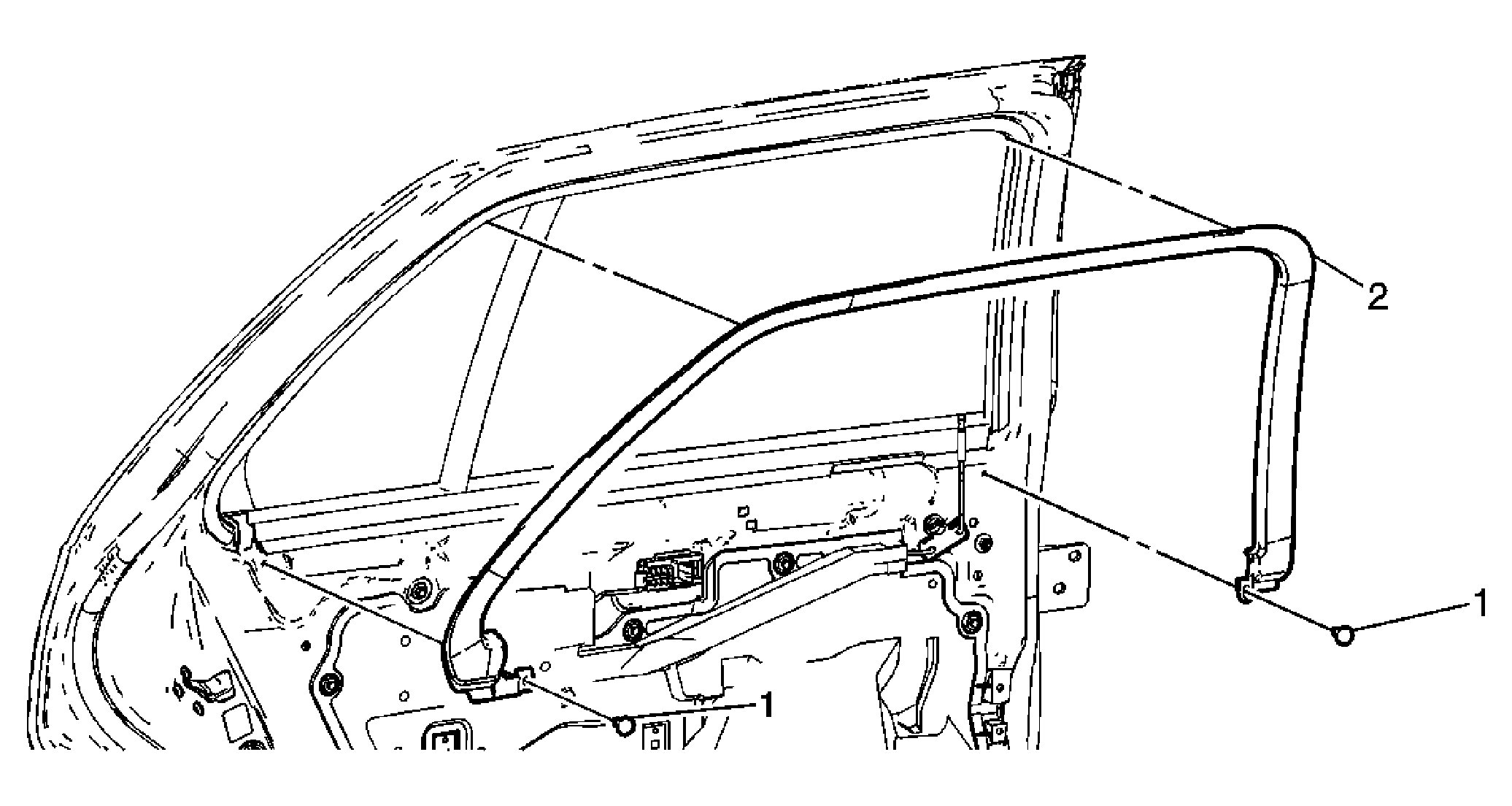

Fig 1: Garnish Molding Replacement - Rear Door Frame

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure: Remove the rear door trim panel. Refer to Rear Side Door Trim Panel Replacement .
1	Retainer, Garnish Molding (Qty: 2) Tip: Use a plastic flat-bladed tool to remove the push-in retainers from the door.
2	Garnish Molding, Rear Door Tip: Pull the garnish molding off of the door window flange.
