Rear Side Door Stationary Window and Front Channel Replacement

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

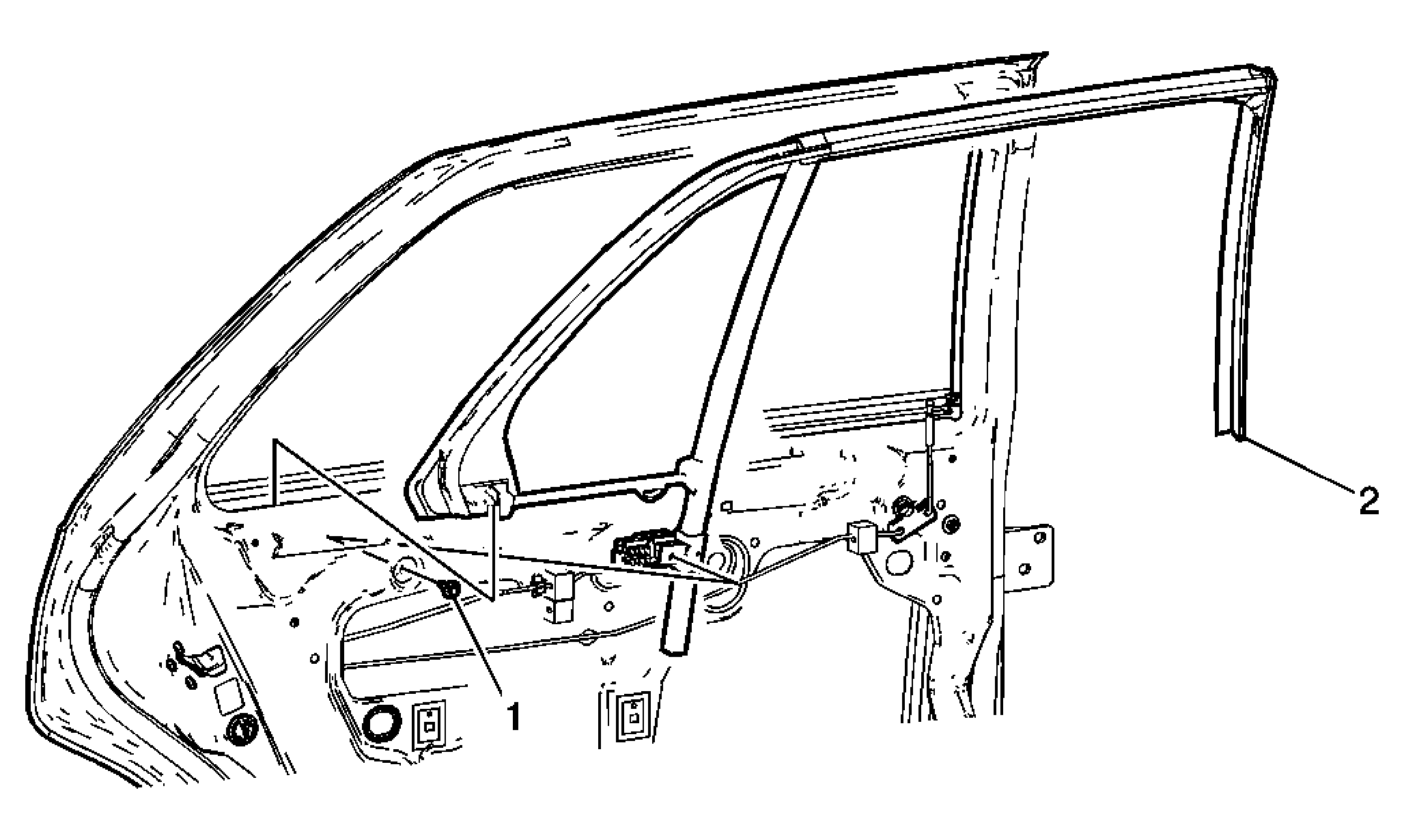

Fig 1: Window/Division Channel - Rear Door Stationary

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Place the window in the full up position. Remove the rear door trim panel. Refer to Rear Side Door Trim Panel Replacement . Remove the rear door inner belt sealing strip. Refer to Sealing Strip Replacement - Rear Door Window Belt Inner . Remove the rear door window garnish molding. Refer to Rear Side Door Opening Frame Garnish Molding Replacement . Remove the rear door water deflector. Refer to Rear Side Door Water Deflector Replacement . Remove the rear door window regulator. Refer to Rear Side Door Window Regulator Replacement . Remove the rear door window. Refer to Rear Side Door Window Replacement .
1	Bolt, Rear Door Stationary Window Division Post Tighten: 9 N.m (80 lb in)
2	Window, Rear Door Stationary Tip: Pull the stationary window sealing strip from the door frame. Tip the stationary window forward to remove it from the door.

Callout

Component Name

NOTE: Refer to Fastener Notice .

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedures

Place the window in the full up position.
Remove the rear door trim panel. Refer to Rear Side Door Trim Panel Replacement .
Remove the rear door inner belt sealing strip. Refer to Sealing Strip Replacement - Rear Door Window Belt Inner .
Remove the rear door window garnish molding. Refer to Rear Side Door Opening Frame Garnish Molding Replacement .
Remove the rear door water deflector. Refer to Rear Side Door Water Deflector Replacement .
Remove the rear door window regulator. Refer to Rear Side Door Window Regulator Replacement .
Remove the rear door window. Refer to Rear Side Door Window Replacement .

Bolt, Rear Door Stationary Window Division Post

Tighten: 9 N.m (80 lb in)

Window, Rear Door Stationary
Tip:

Pull the stationary window sealing strip from the door frame.
Tip the stationary window forward to remove it from the door.
