Preliminary Procedure
- Remove the front seat. Refer to Front Seat Replacement - Bucket
.
- Remove the front seat adjuster outer finish cover. Refer to Front Seat Cushion Outer Trim Panel Replacement
.
- Remove the front seat adjuster inner finish cover. Refer to Front Seat Cushion Inner Trim Panel Replacement
.
|

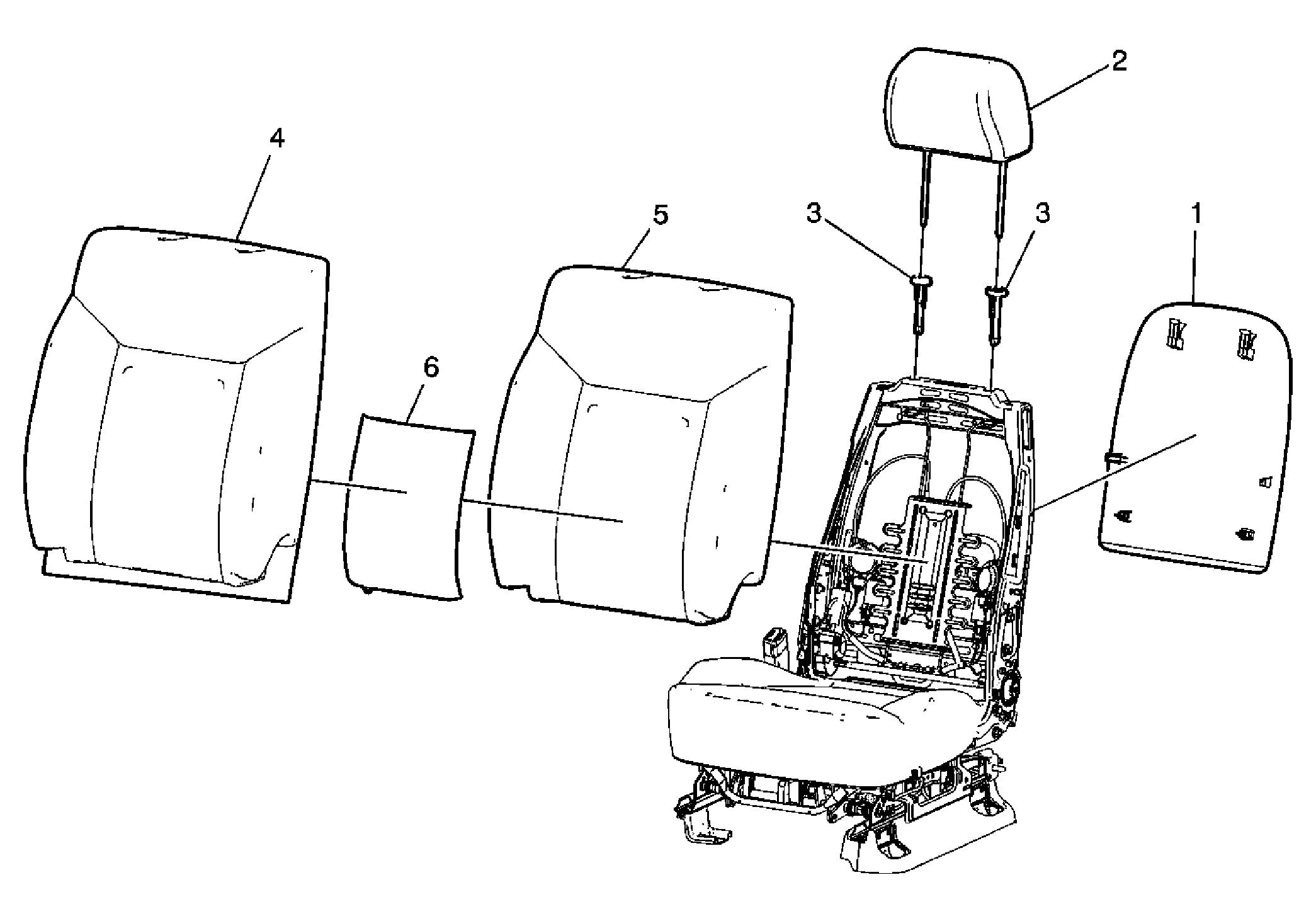

| 1 |
Front Seat Back Cushion Finish Panel
Refer to Driver Seat and Passenger Seat Back Cushion Finish Panel Replacement
. |
| 2 |
Front Seat Head Restraint Assembly Procedure
- Depress the button on the head restraint guide to raise the head restraint to the full up position.
- Insert a small diameter tool into the hole on the inboard side of the other head restraint guide and pull upward to remove.
|
| 3 |
Front Seat Head Restraint Guide (Qty: 2) Procedure
- Squeeze the bottom of the guide together and push up to remove from the seat back.
- Note the location and orientation of each guide for installation purposes.
|
| 4 |
Seat Back Cushion Cover Procedure
- Disengage the j-channel retainers from the seat back cushion frame.
- Disconnect the electrical connectors that attach to the seat back cushion, if equipped.
- Remove the seat back cushion cover and pad from the seat cushion frame as an assembly.
- Pull the cover away from the pad to disengage the retainers
|
| 5 |
Seat Back Cushion Pad |
| 6 |
Front Seat Back Cushion Heater
Tip:
The heater is retained to the pad with adhesive, carefully peel the heater from the seat back cushion to remove. |
