Front Seat Replacement - Bucket

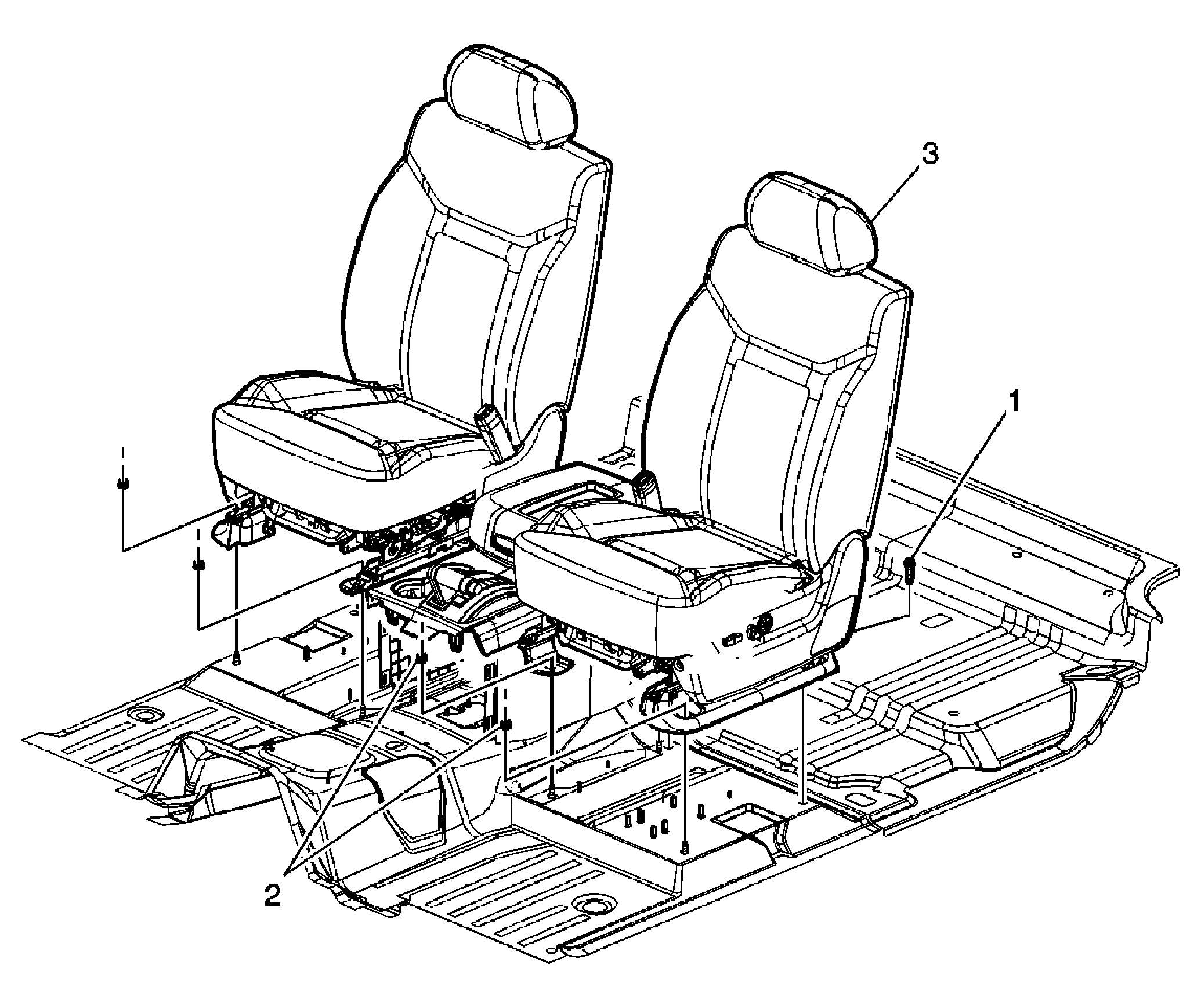

Fig 1: Front Seat Components
GM1950026Courtesy of GENERAL MOTORS CORP.
Callout Component Name

Preliminary Procedure

  1. Remove front seat adjuster track finish covers. Refer to Front Seat Adjuster Track Finish Cover Replacement .
  2. Disconnect the front seat retractor anchor by removing the nut. Refer to Seat Belt Retractor Pretensioner Replacement - Front .
1 Front Seat Bolt (Qty: 2)
NOTE: Refer to Fastener Notice .

Tighten:  55 N.m (41 lb ft)
2 Front Seat Nut (Qty: 2)

Tighten:  55 N.m (41 lb ft)
3 Front Seat Assembly

Procedure

  1. Remove the cover over the front seat electrical connector.
  2. Disconnect the electrical harness.
