Front Seat Cushion Inner Trim Panel Replacement

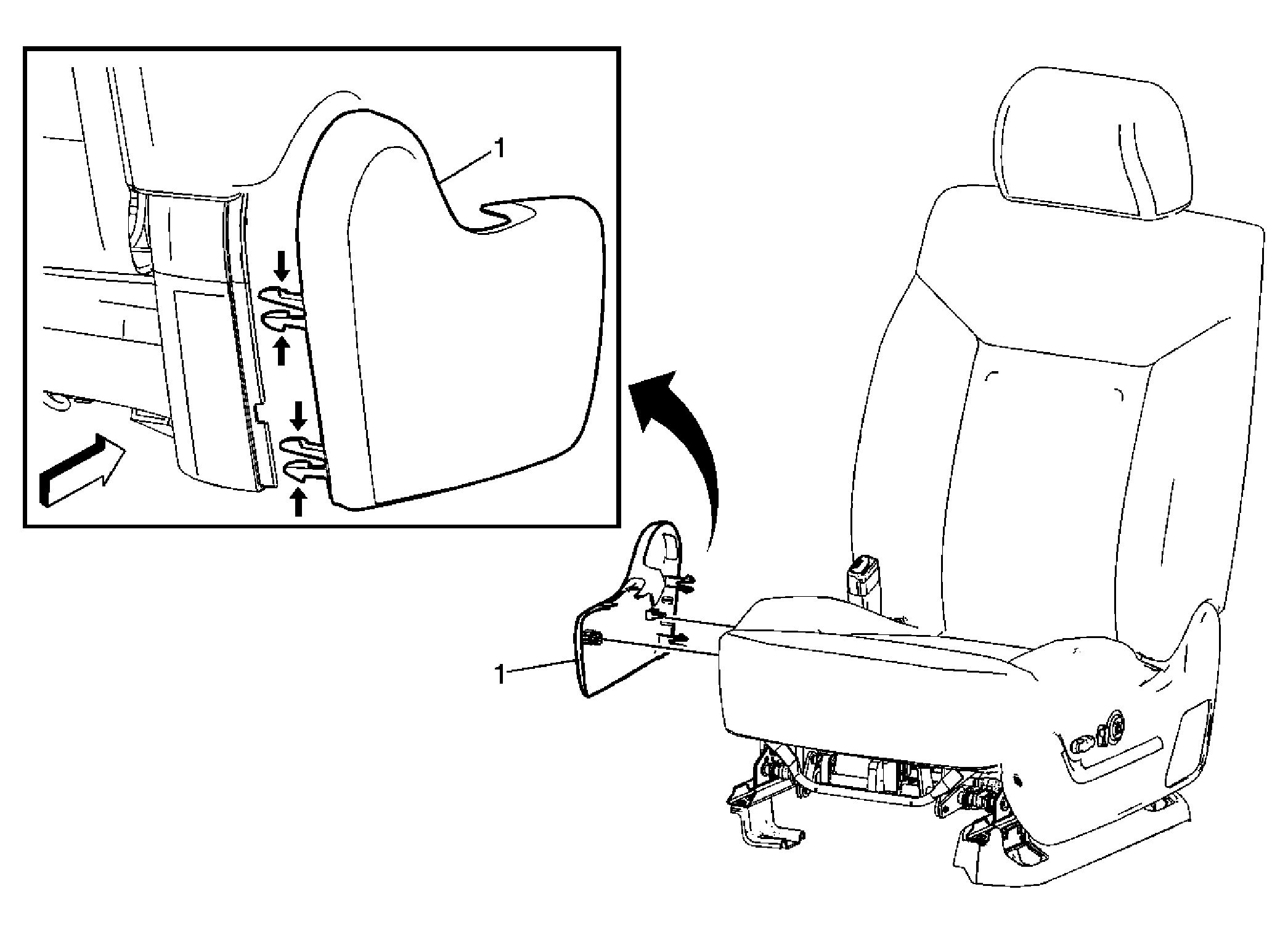

Fig 1: Front Seat Cushion Inner Trim Panel
GM1950038Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Front Seat Adjuster Inner Finish Cover

Procedure

  1. Disengage the bezel around the seat belt buckle.
  2. Squeeze the tabs in the rear of the cover together to disengage the inner trim cover from the rear trim cover.
  3. Pull outward to release the retainers from the seat assembly.
