VSA System Description - System Diagram

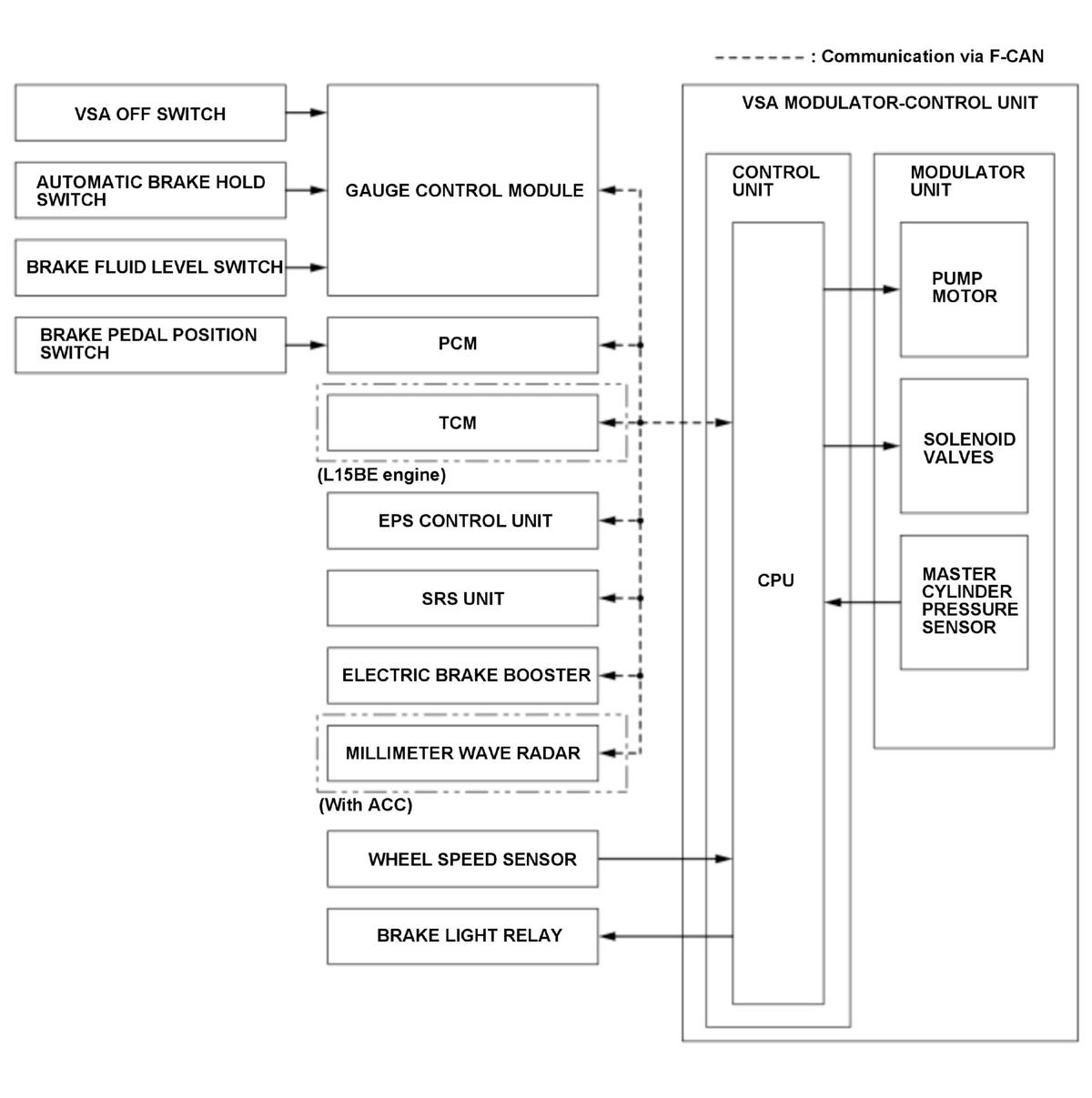

The system diagram of the VSA system is shown below.

For locations of each component on vehicle, refer to Component Location Index:

Courtesy of HONDA, U.S.A., INC.

F-CAN Communication Data

VSA System Receiving Signal

Transmitting Unit	Signal Name
PCM	VSA control enable/disable signal Accelerator pedal position signal Engine speed signal Engine torque signal Vehicle speed signal Brake pedal position switch signal Starting assist brake function activation request *1 Service check signal System failure Information
TCM *2	Vehicle speed signal Shift position signal
Gauge control module	VSA OFF switch signal Brake fluid level switch signal Automatic brake hold switch signal
SRS unit	Yaw rate signal Lateral acceleration signal Longitudinal acceleration signal Driver's seat belt buckle switch status
EPS control unit	Steering angle signal
Electric brake booster	System operating state signal System failure Information Brake pedal stroke sensor state signal
Millimeter wave radar *3	Deceleration request signal System operating state signal System failure Information

*1: With auto idle stop system

*2: L15BE engine

*3: With ACC

VSA System Transmitting Signal

Transmitting Unit	Signal Name
VSA modulator-control unit	Engine torque control request signal Shift control request signal Wheel speed signals Master cylinder pressure signal Indicator drive signal Buzzer request signal Automatic brake hold request signal Target brake pressure signal *1 System operating state signal System failure Information

*1: With ACC
