Fuel and Emissions Systems Component Location Index (2.4 L Engine)

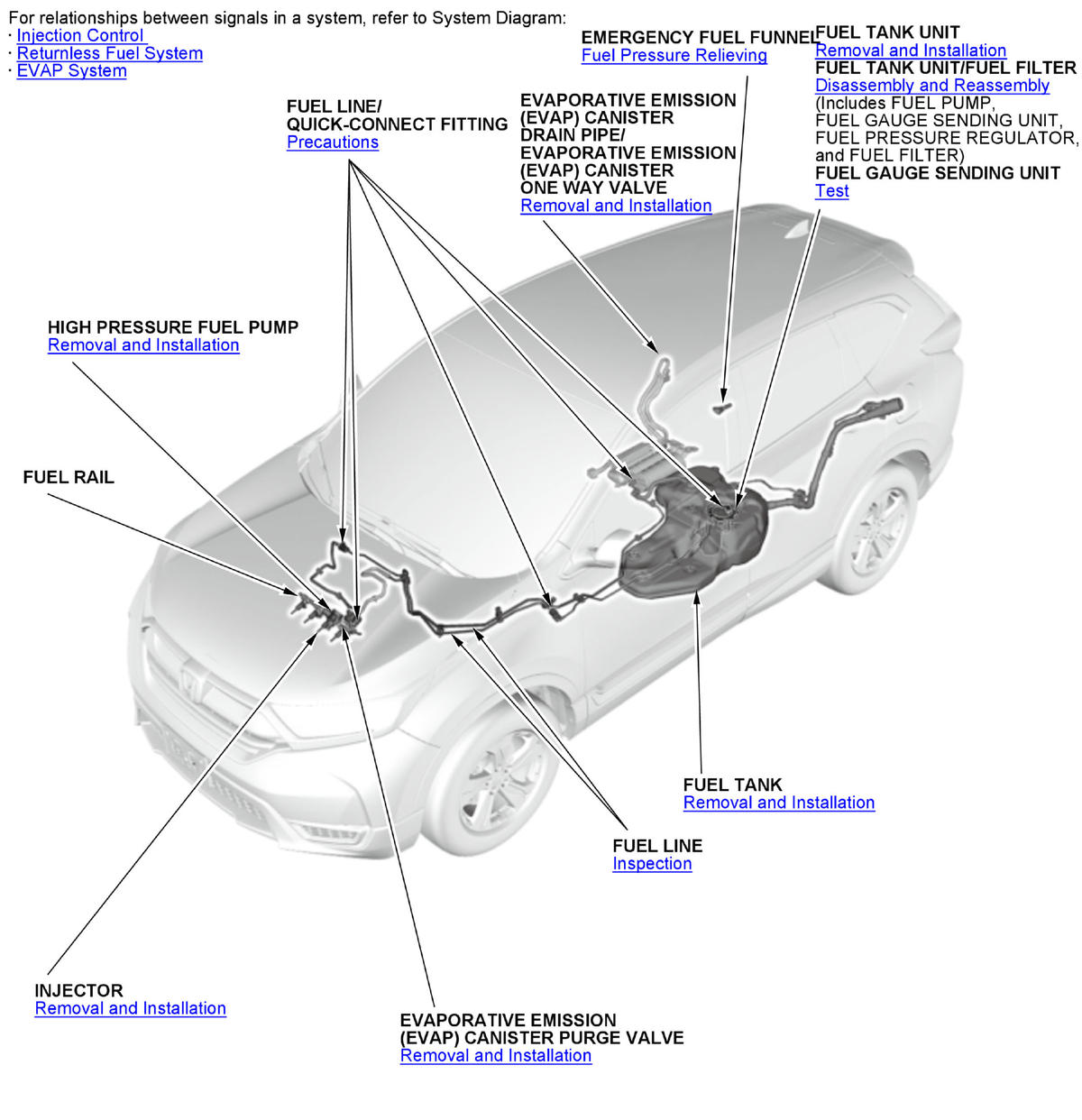

1.5 L engine

Courtesy of HONDA, U.S.A., INC.

1.5 L engine

Courtesy of HONDA, U.S.A., INC.

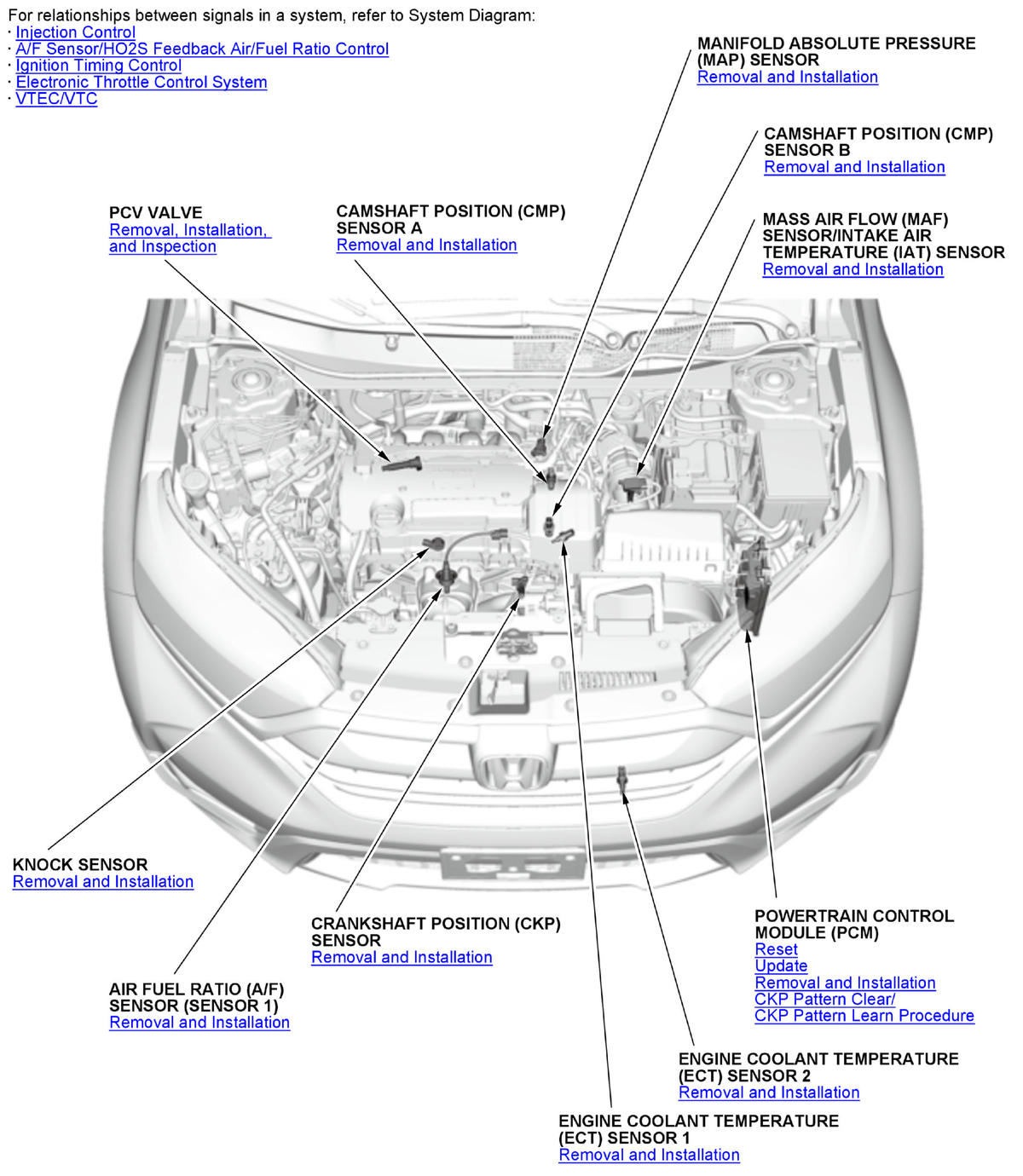

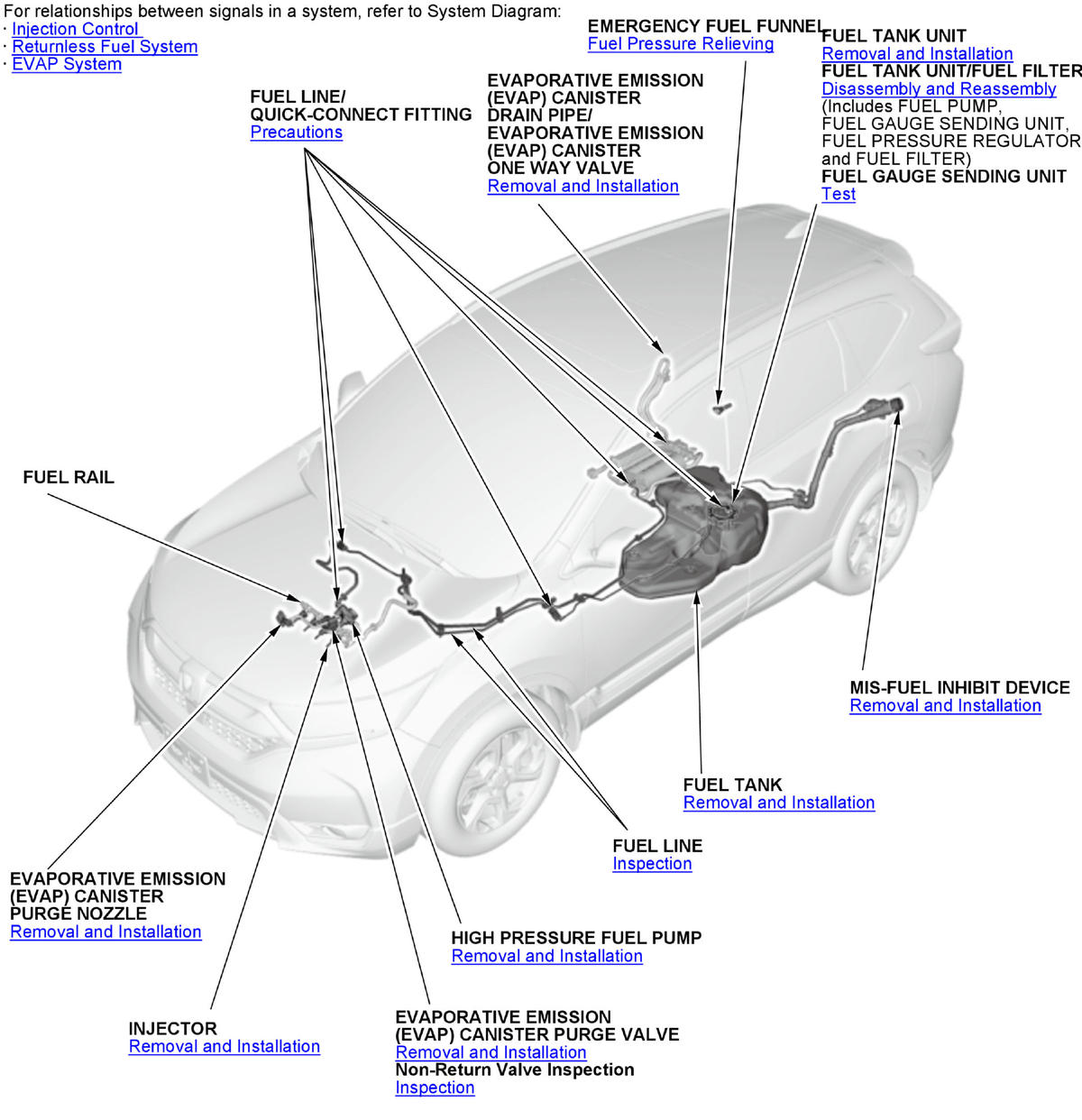

2.4 L engine

Courtesy of HONDA, U.S.A., INC.

2.4 L engine

Courtesy of HONDA, U.S.A., INC.

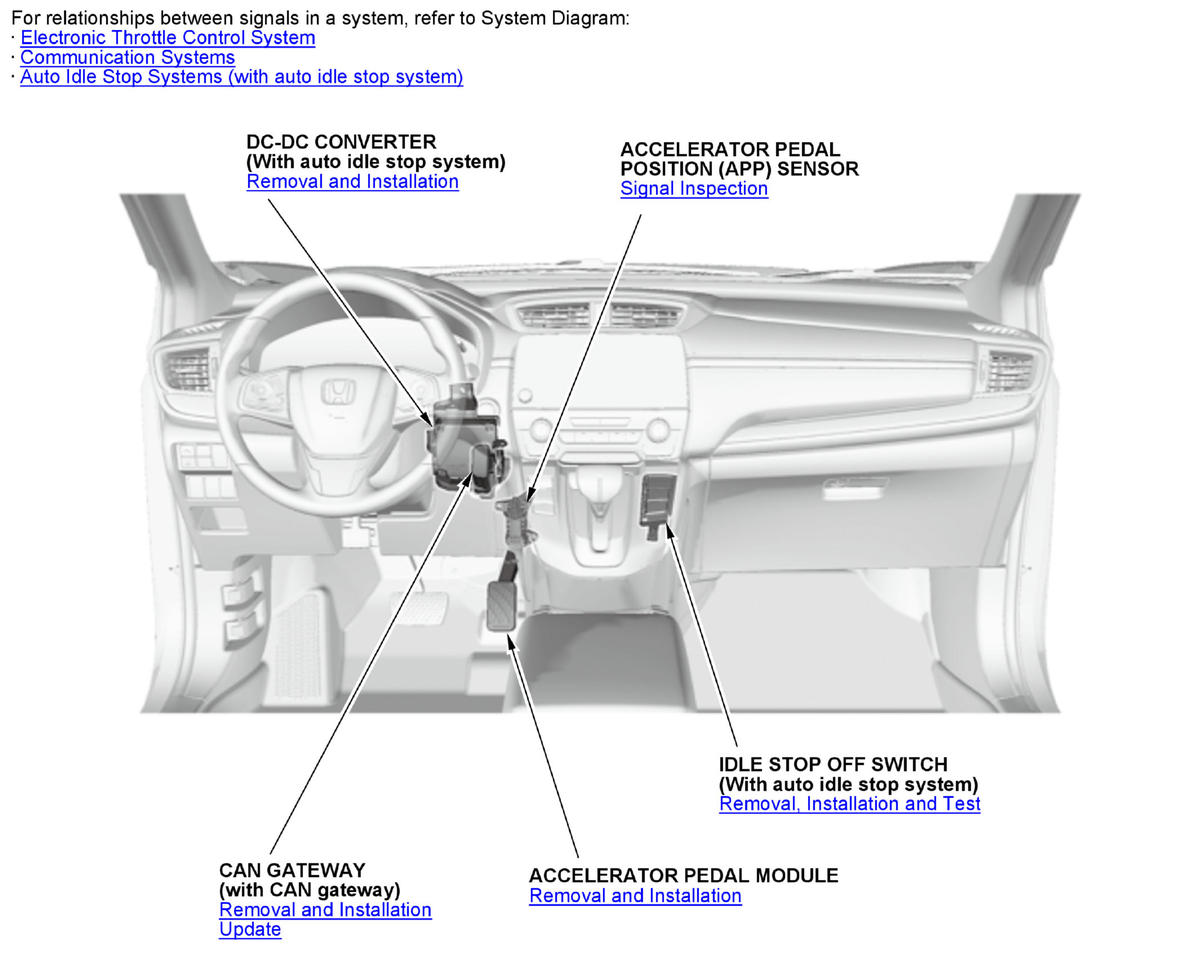

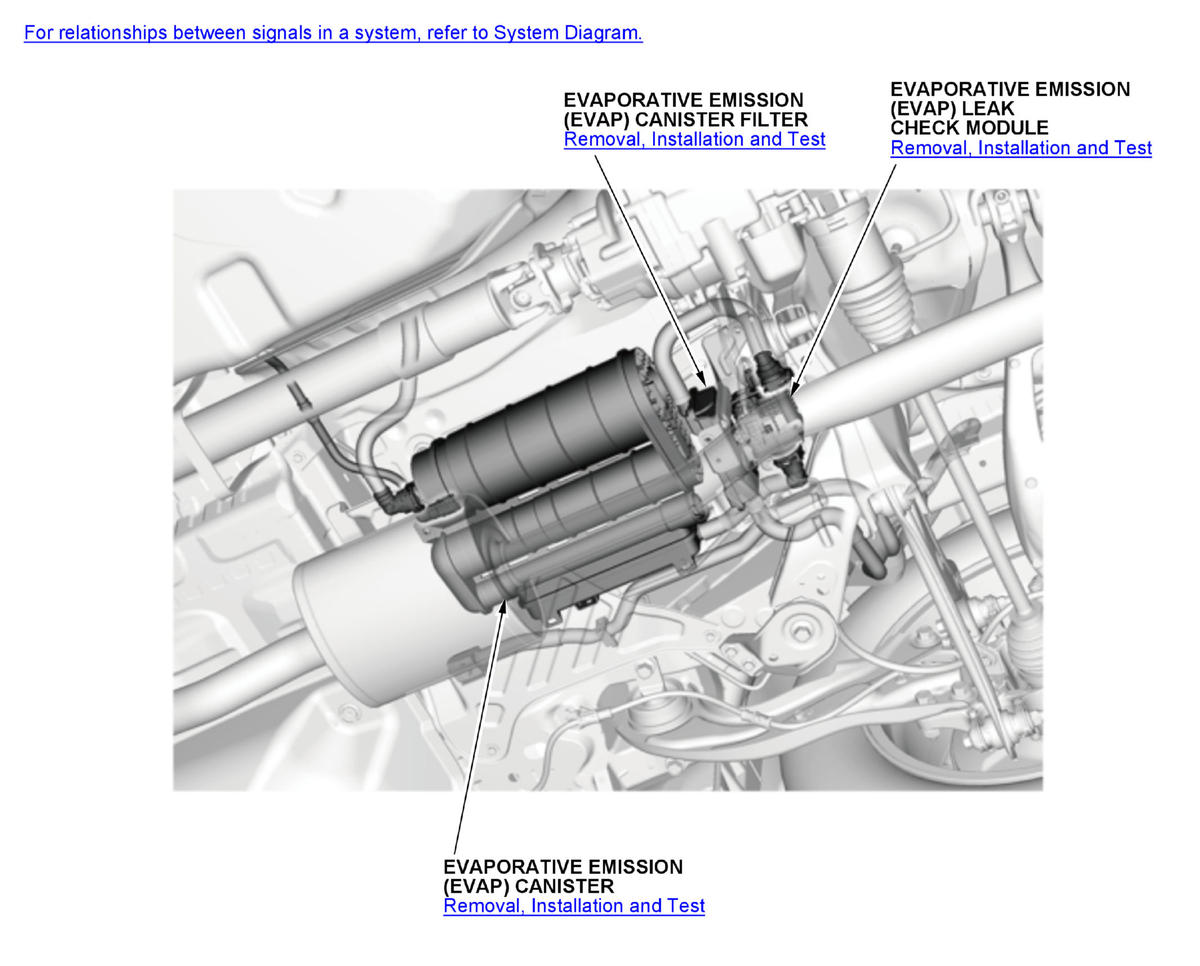

Courtesy of HONDA, U.S.A., INC.

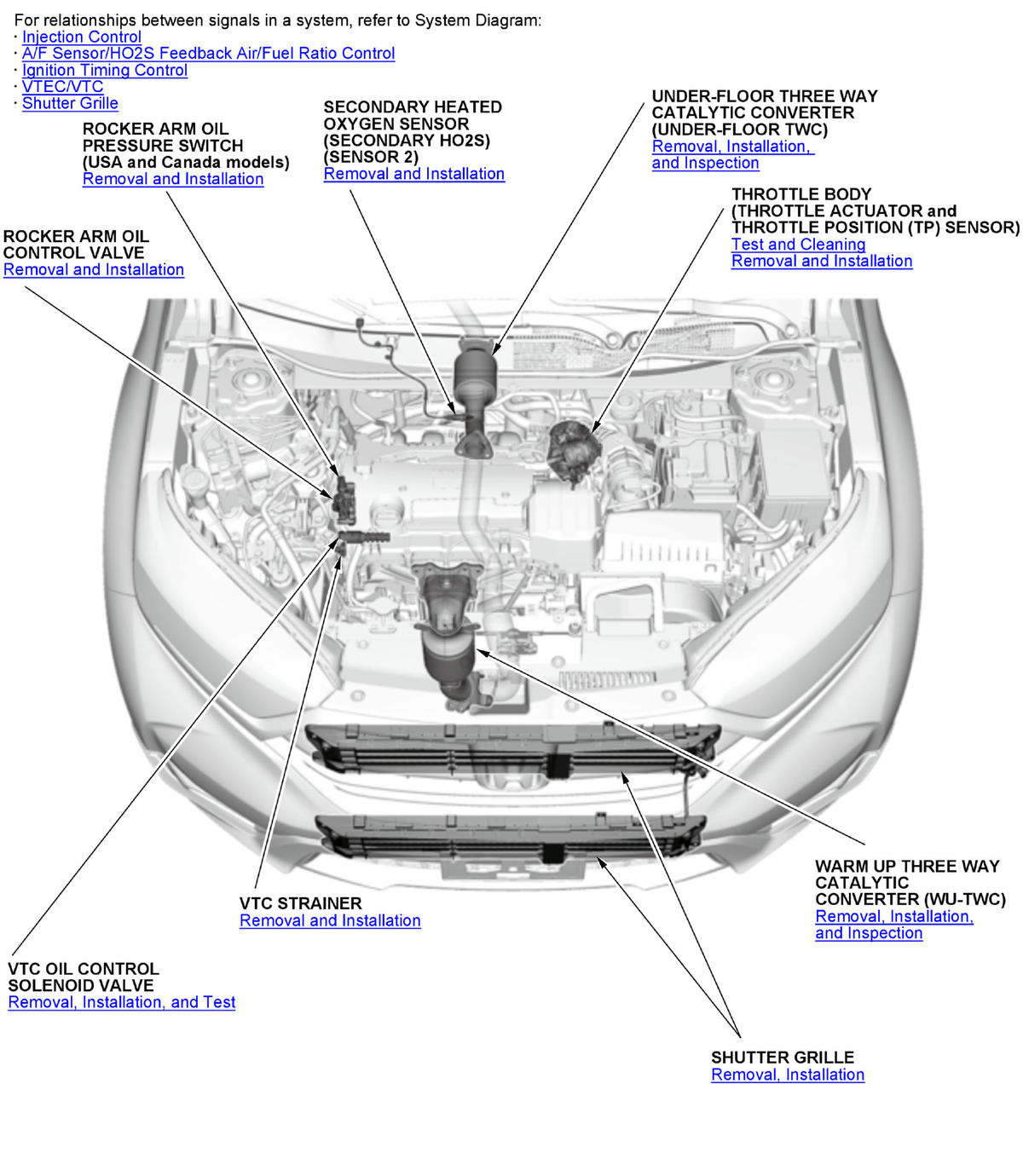

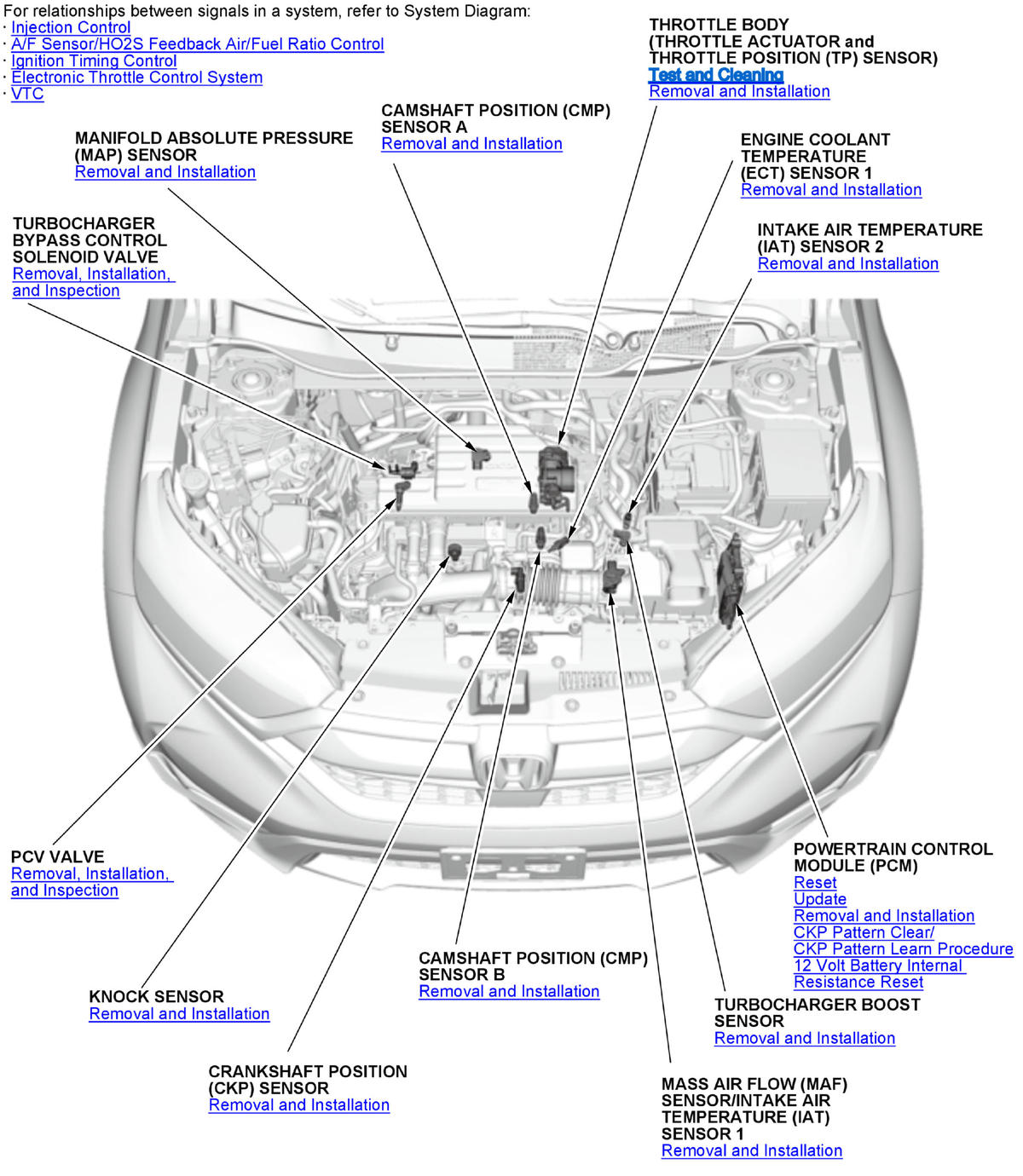

1.5 L engine (USA and Canada models)

Courtesy of HONDA, U.S.A., INC.

1.5 L engine (Mexico models)

Courtesy of HONDA, U.S.A., INC.

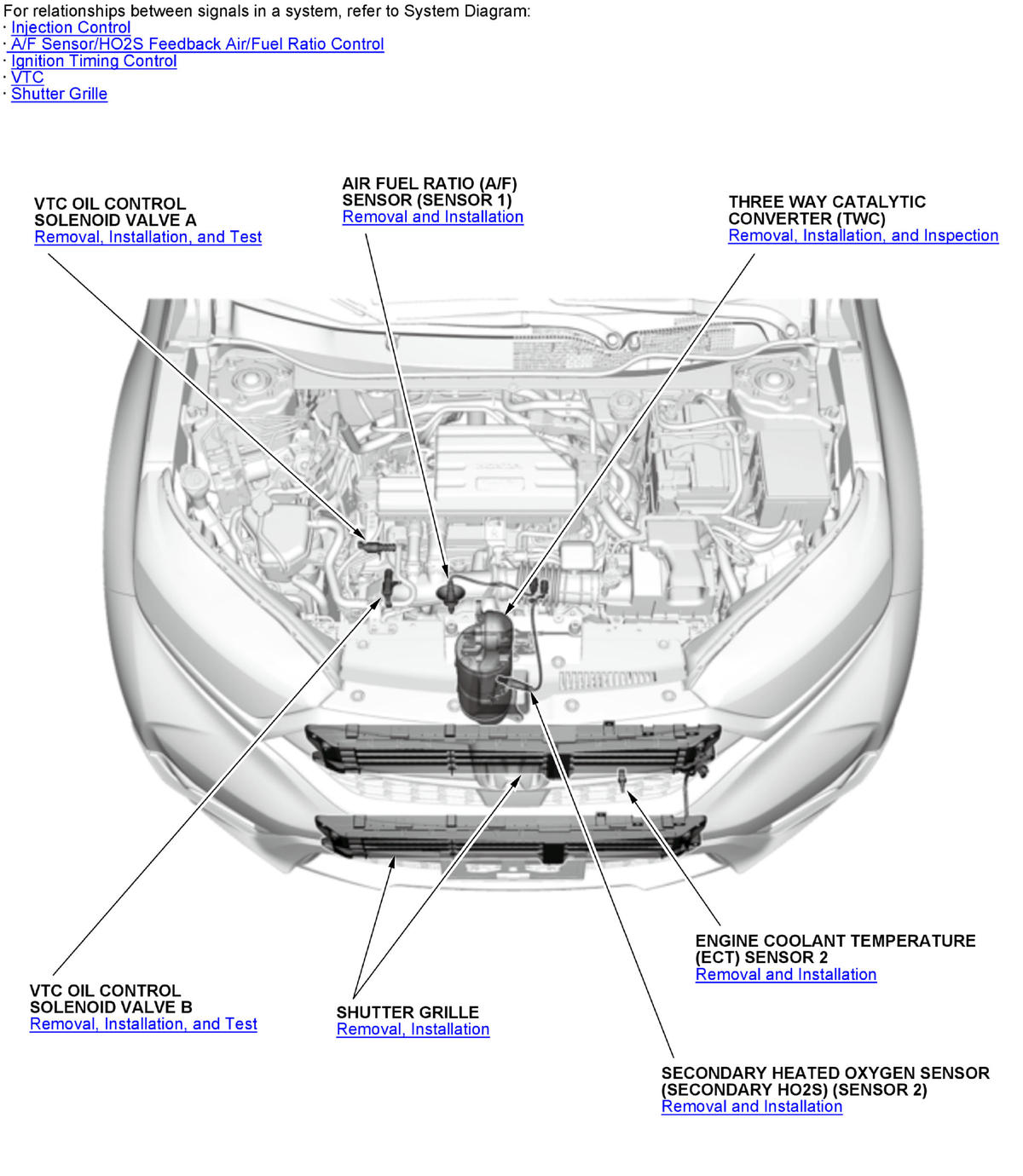

2.4 L engine (USA models)

Courtesy of HONDA, U.S.A., INC.

2.4 L engine (Mexico models)

Courtesy of HONDA, U.S.A., INC.

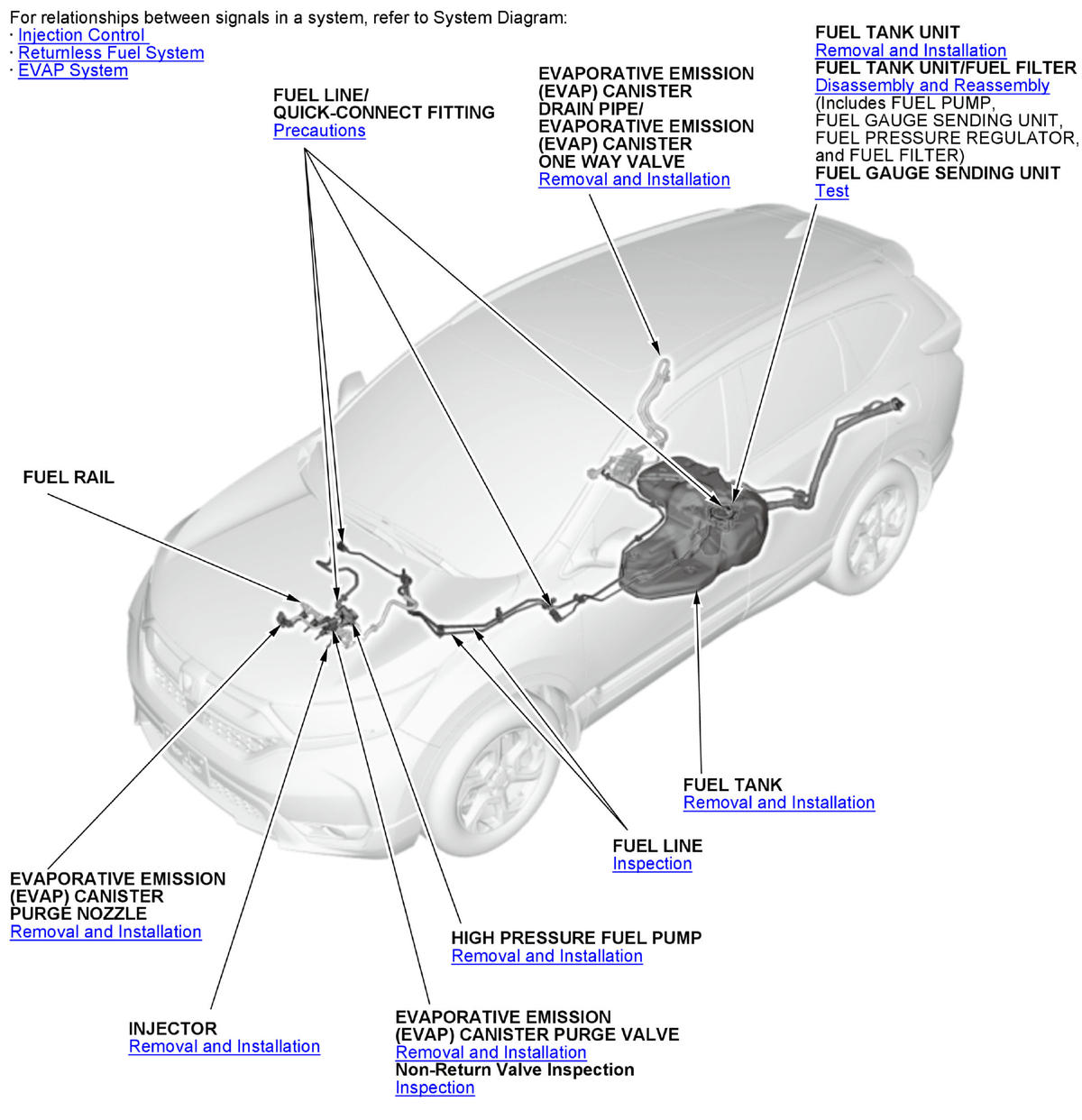

1.5 L engine (USA and Canada models)

Courtesy of HONDA, U.S.A., INC.

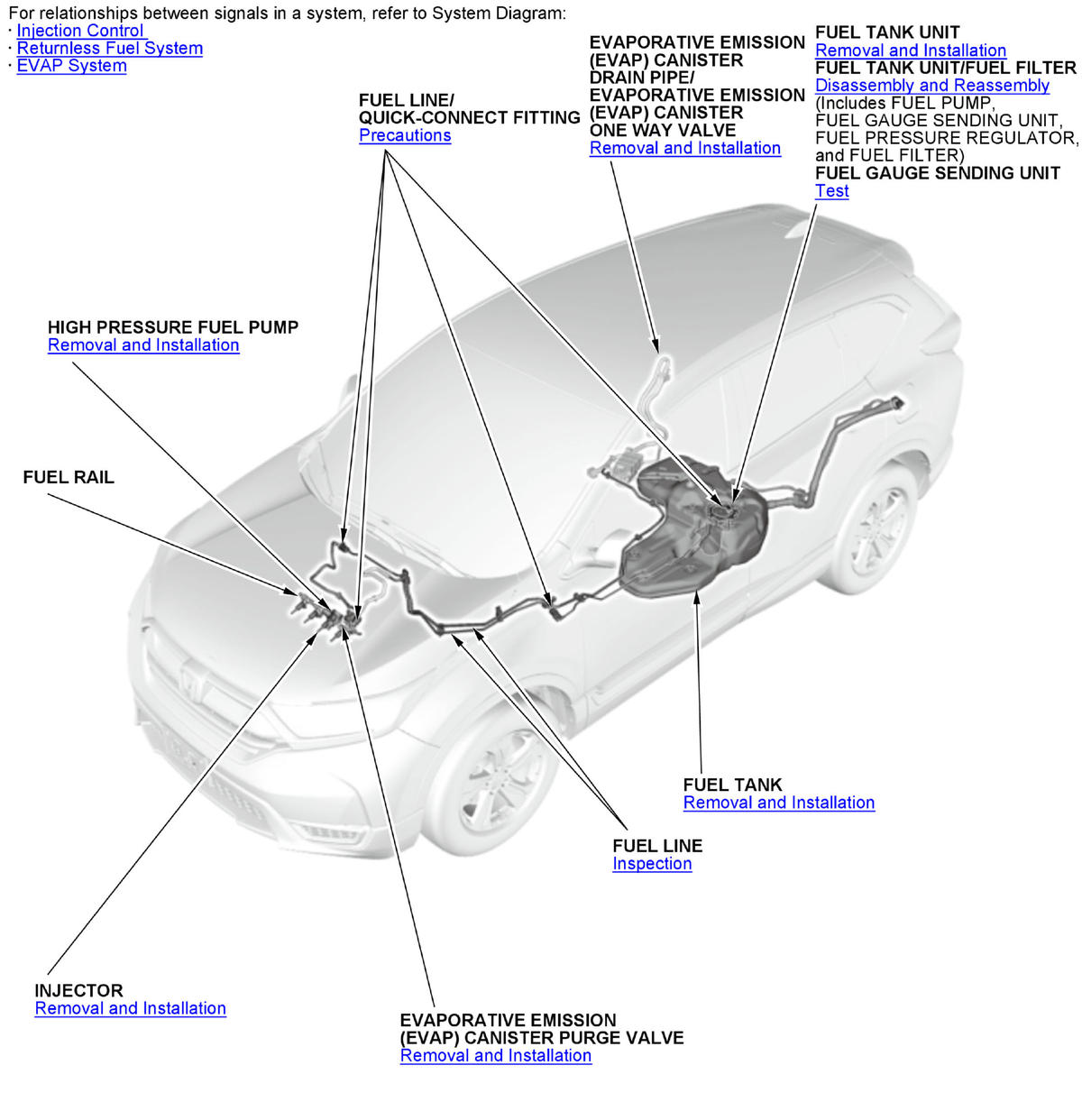

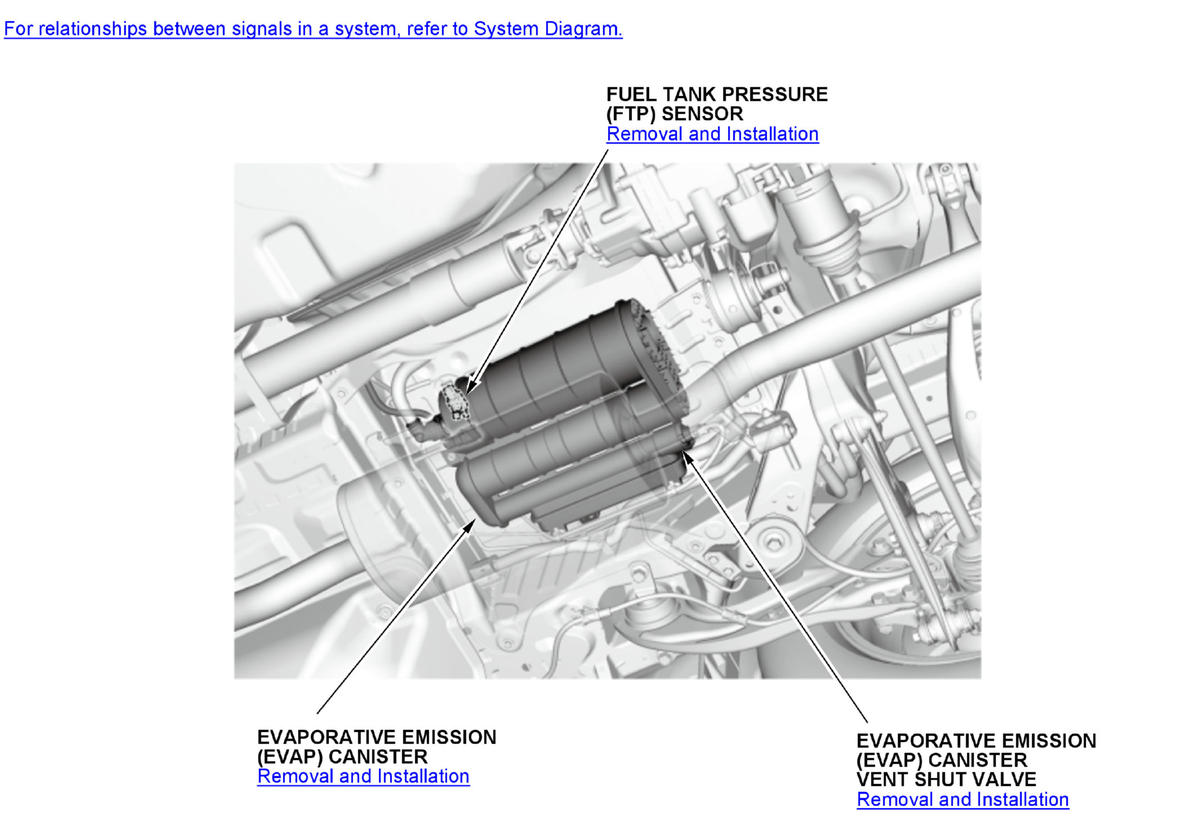

2.4 L engine (USA models)

Courtesy of HONDA, U.S.A., INC.

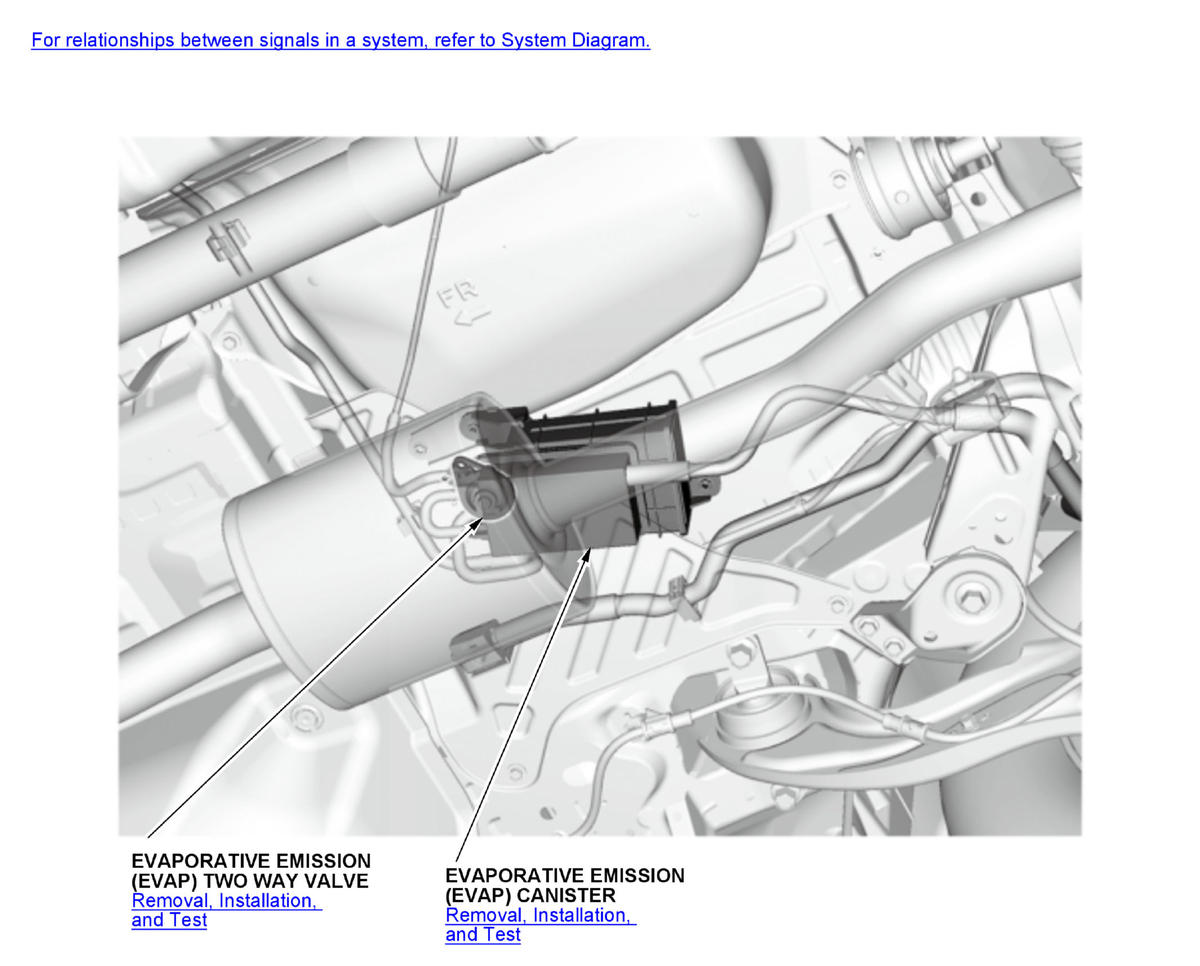

Mexico models

Courtesy of HONDA, U.S.A., INC.
