SRS Component Location Index(Power Seat)

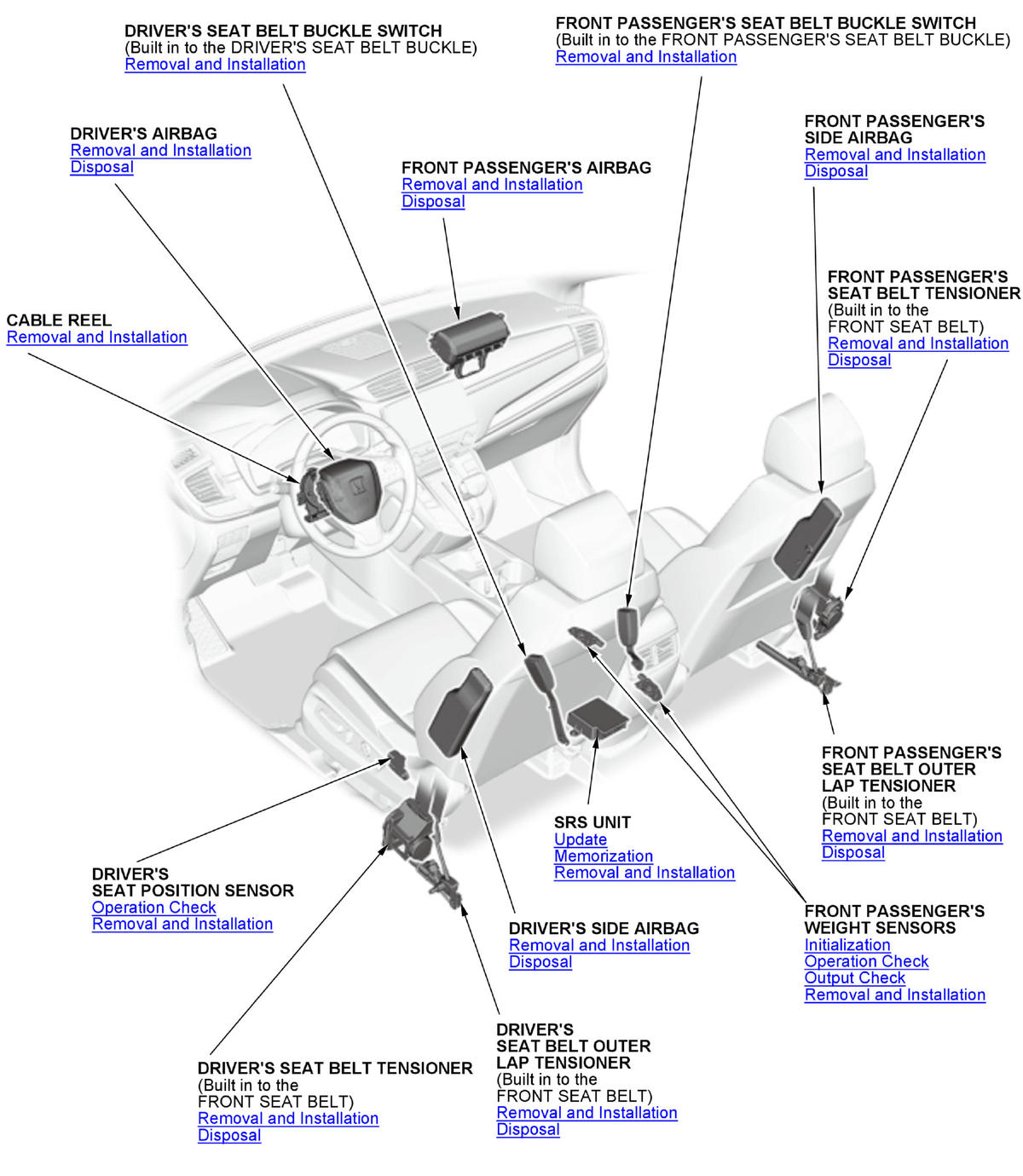

GHH431260

Courtesy of HONDA, U.S.A., INC.

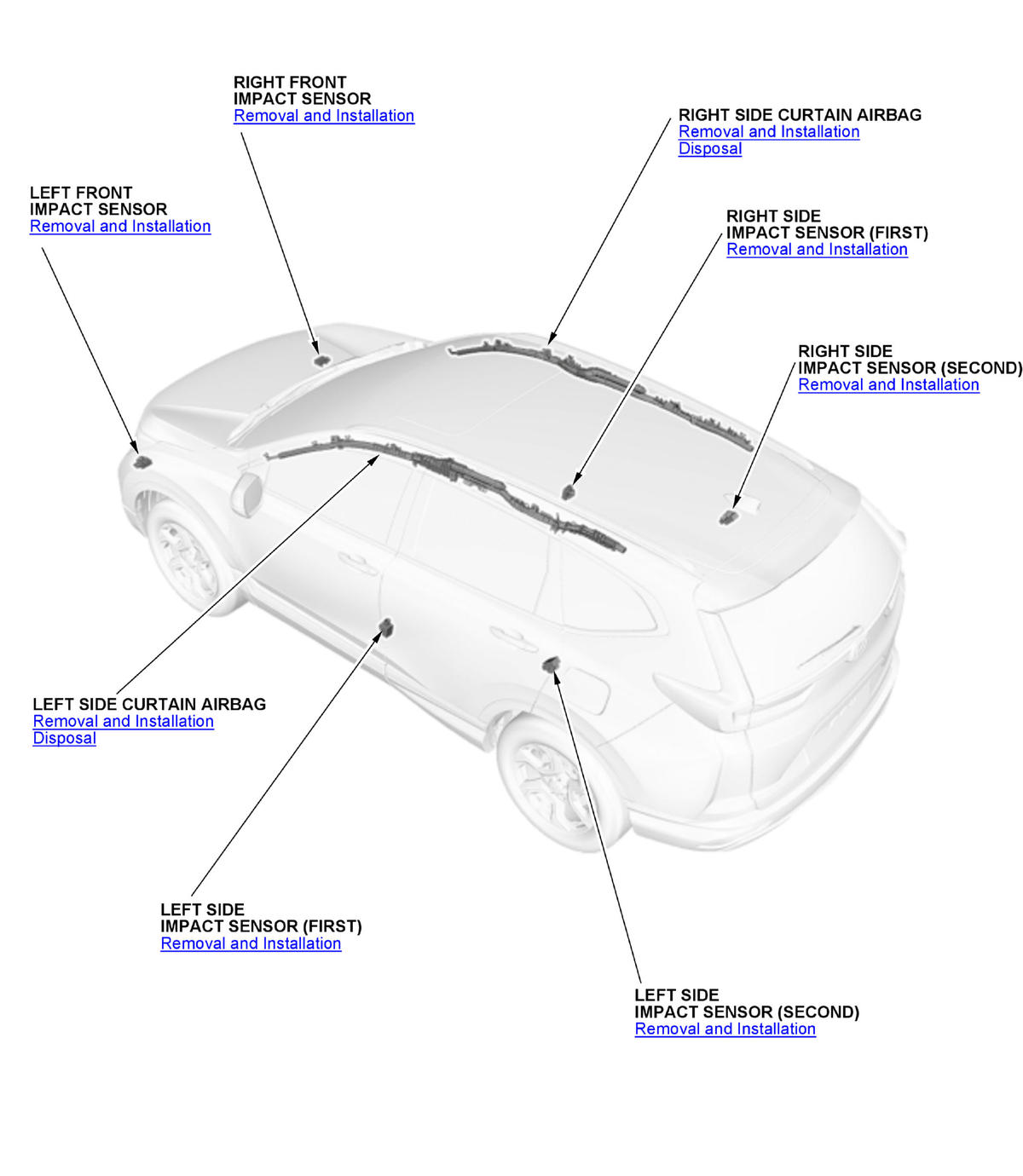

GHH431261

Courtesy of HONDA, U.S.A., INC.

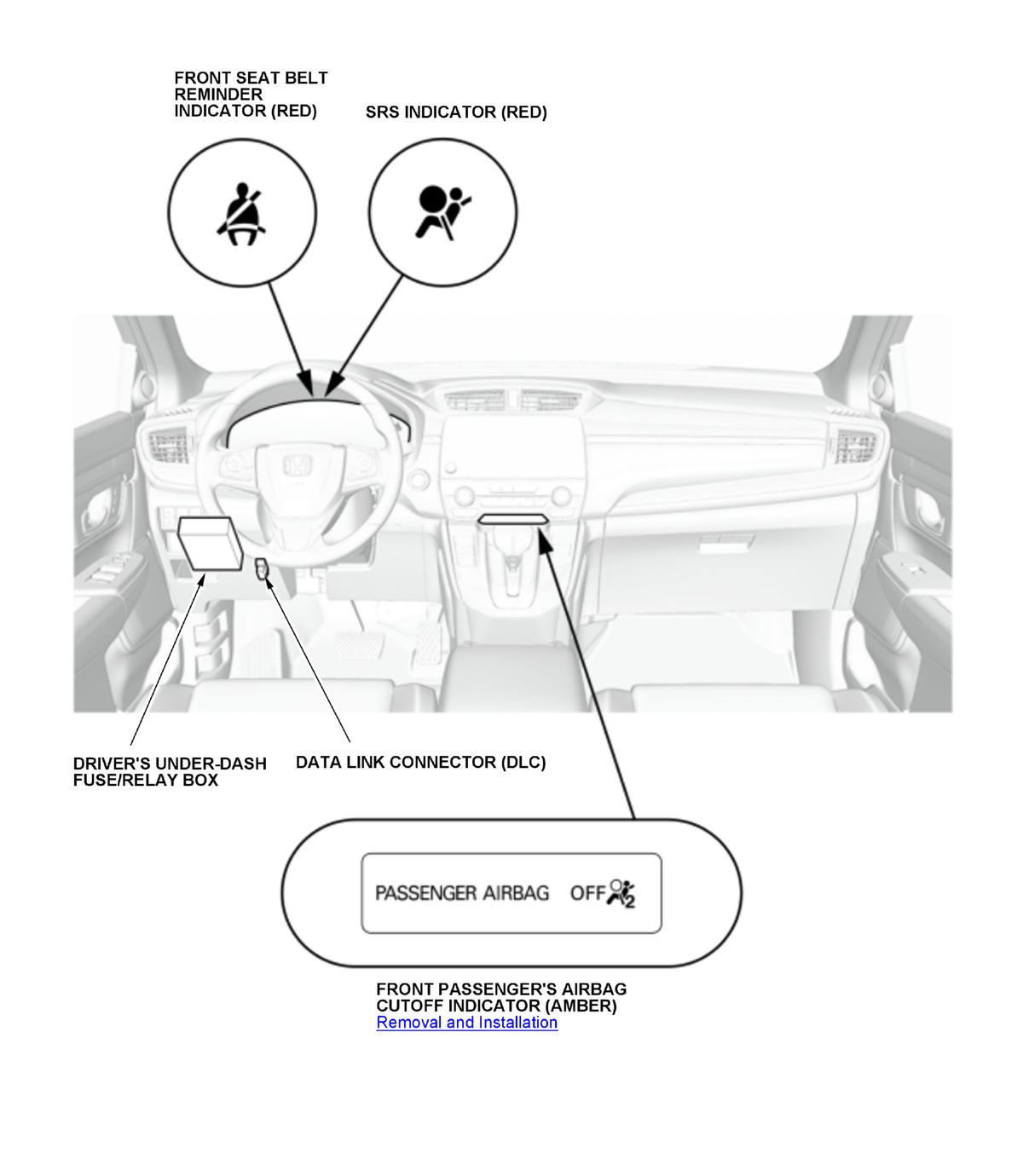

GHH431262

Courtesy of HONDA, U.S.A., INC.
