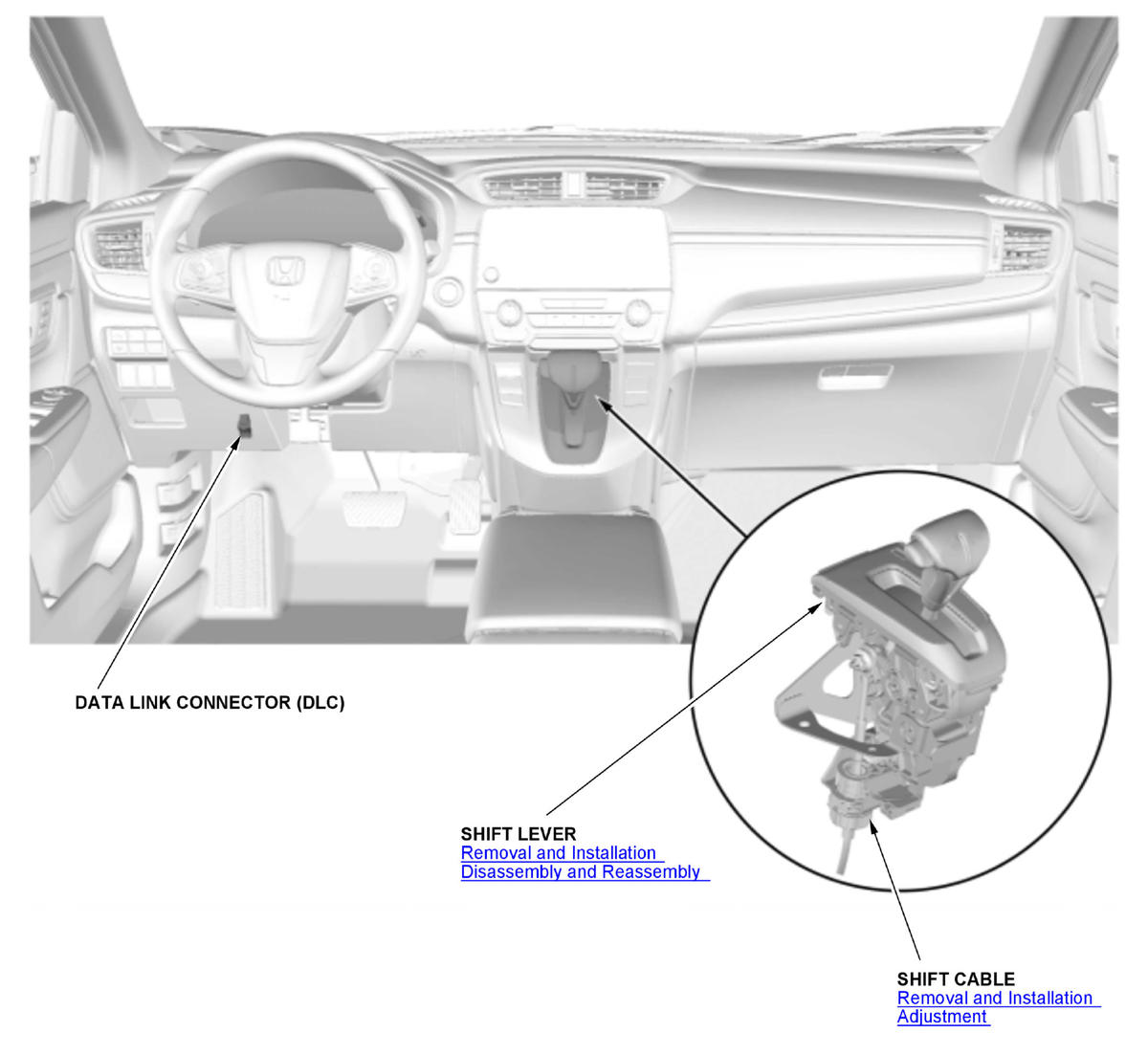

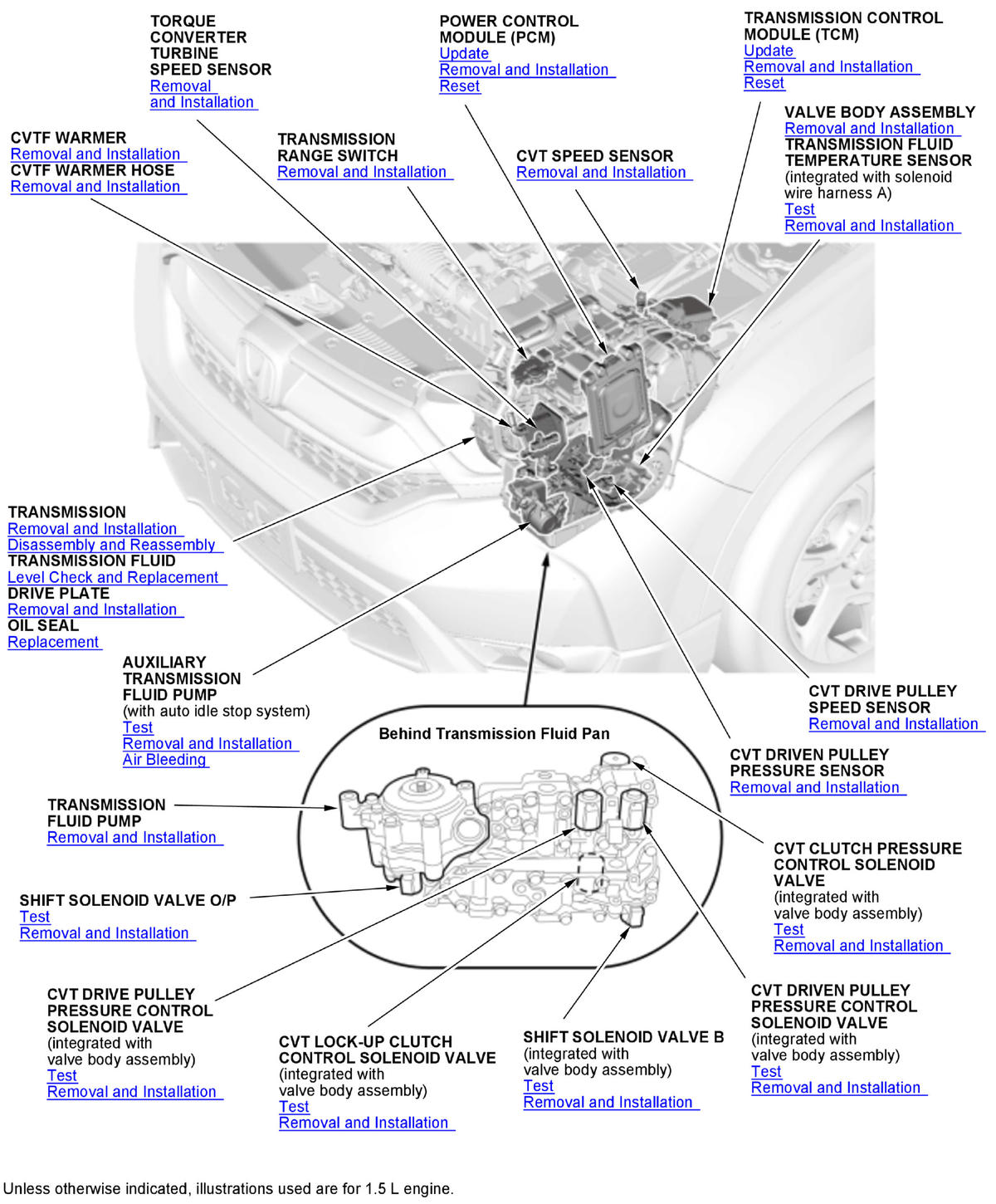

CVT System Component Location Index (1.5 L Engine)

GHH423316

Courtesy of HONDA, U.S.A., INC.

GHH423317

Courtesy of HONDA, U.S.A., INC.
