Gauges Component Location Index(With Auto Idle Stop System)

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

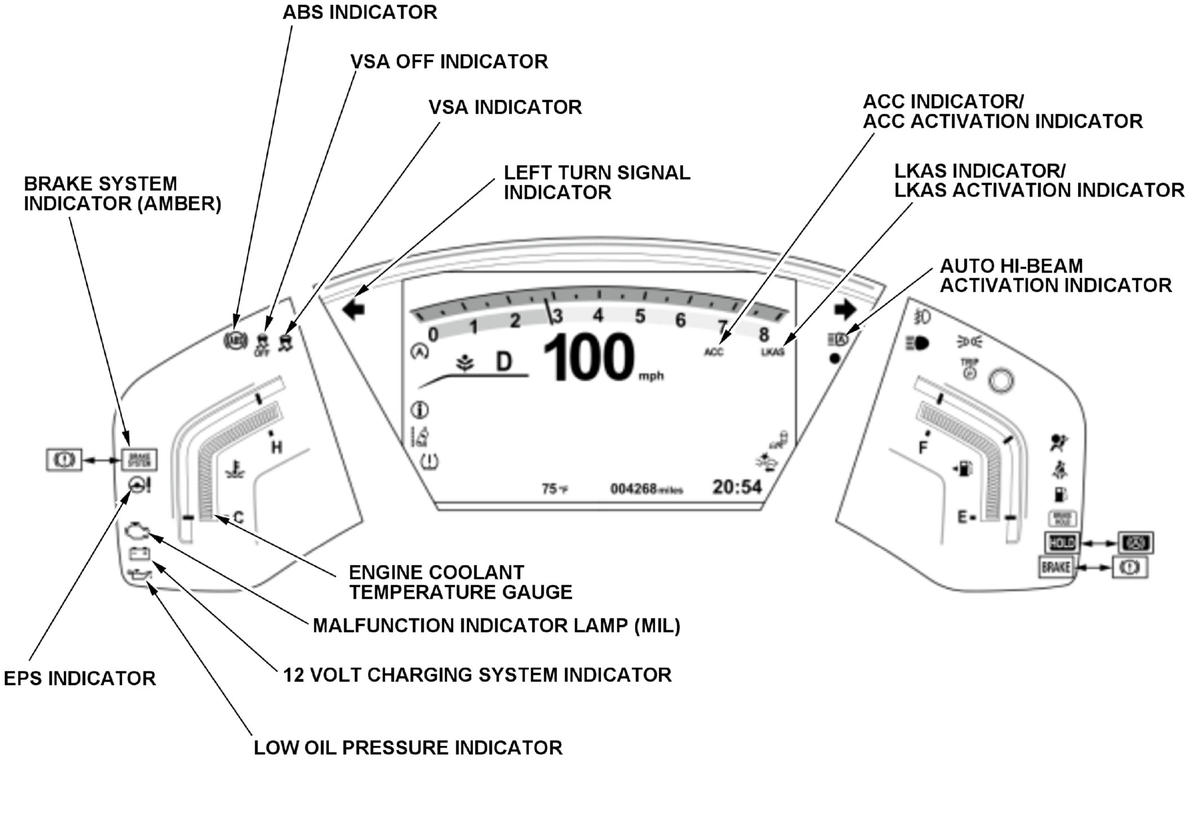

1/3 (With Multi-information display (MID))

Courtesy of HONDA, U.S.A., INC.

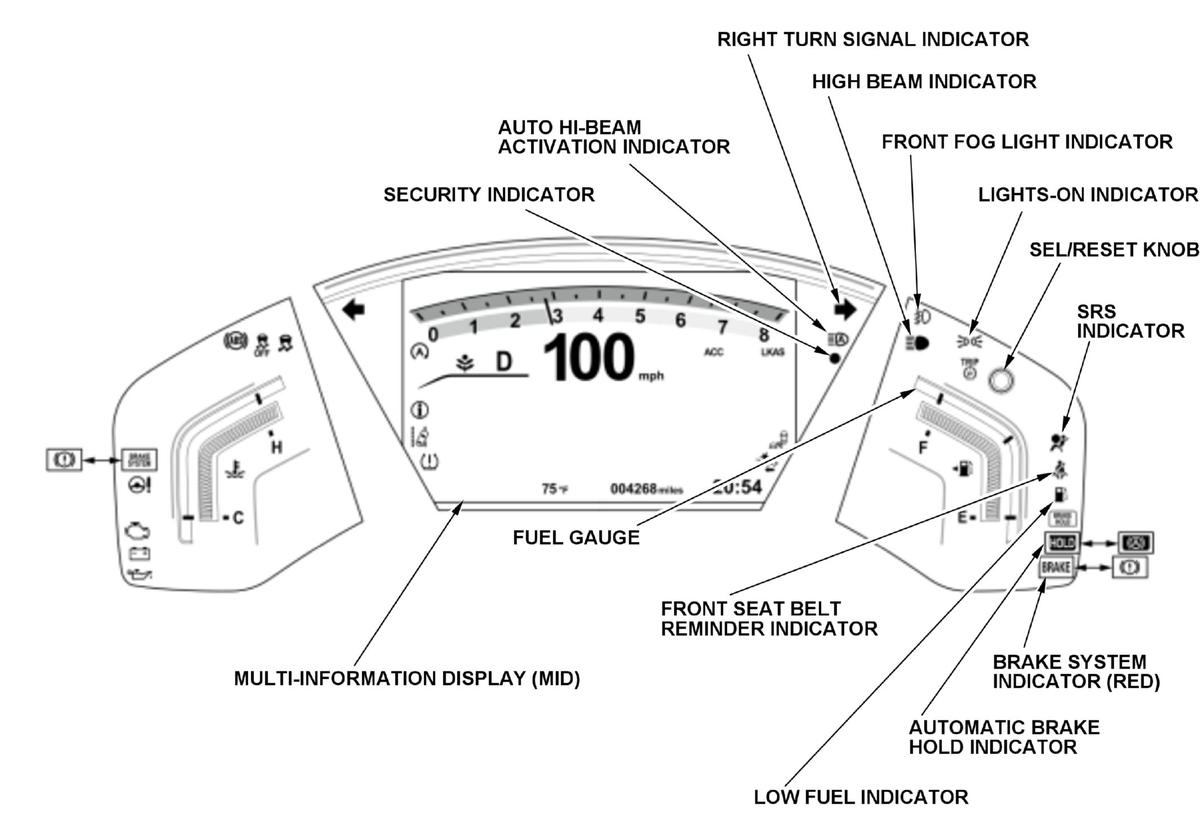

2/3 (With Multi-information display (MID))

Courtesy of HONDA, U.S.A., INC.

3/3 (With Multi-information display (MID))

Courtesy of HONDA, U.S.A., INC.

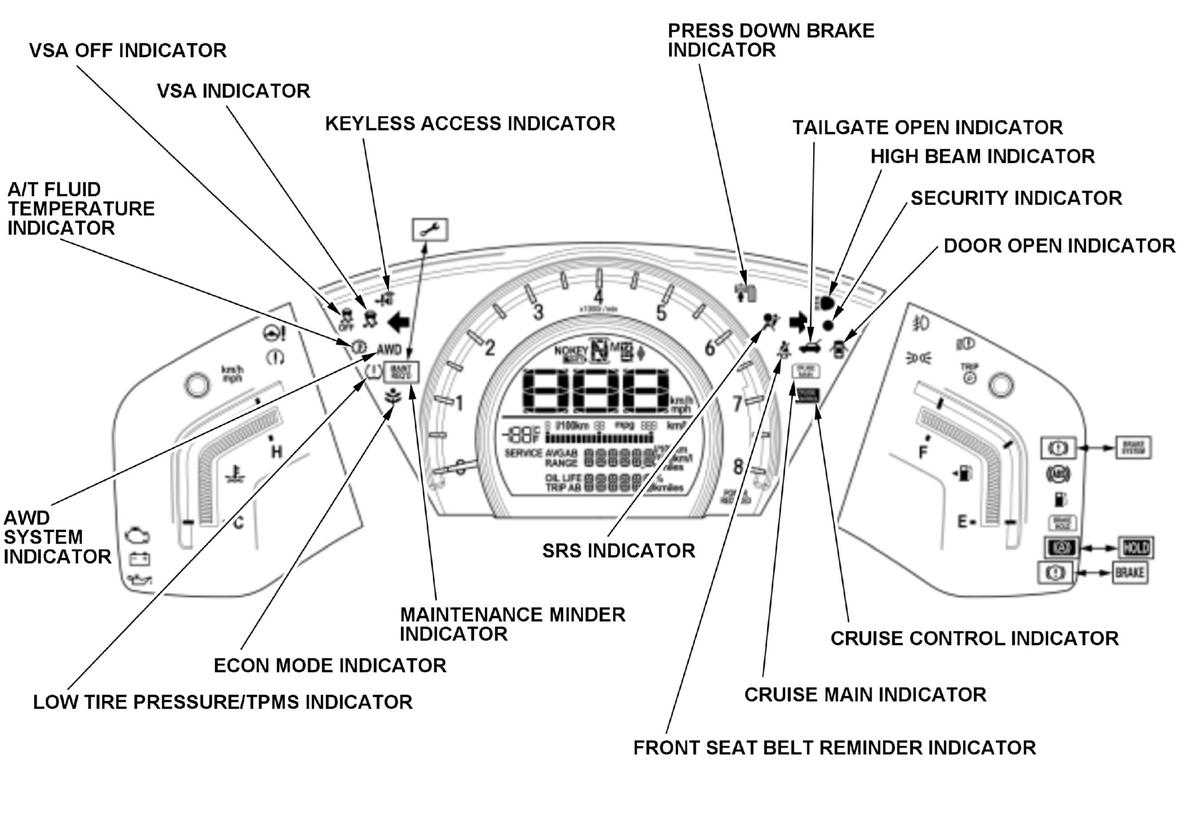

1/4 (Without Multi-information display (MID))

Courtesy of HONDA, U.S.A., INC.

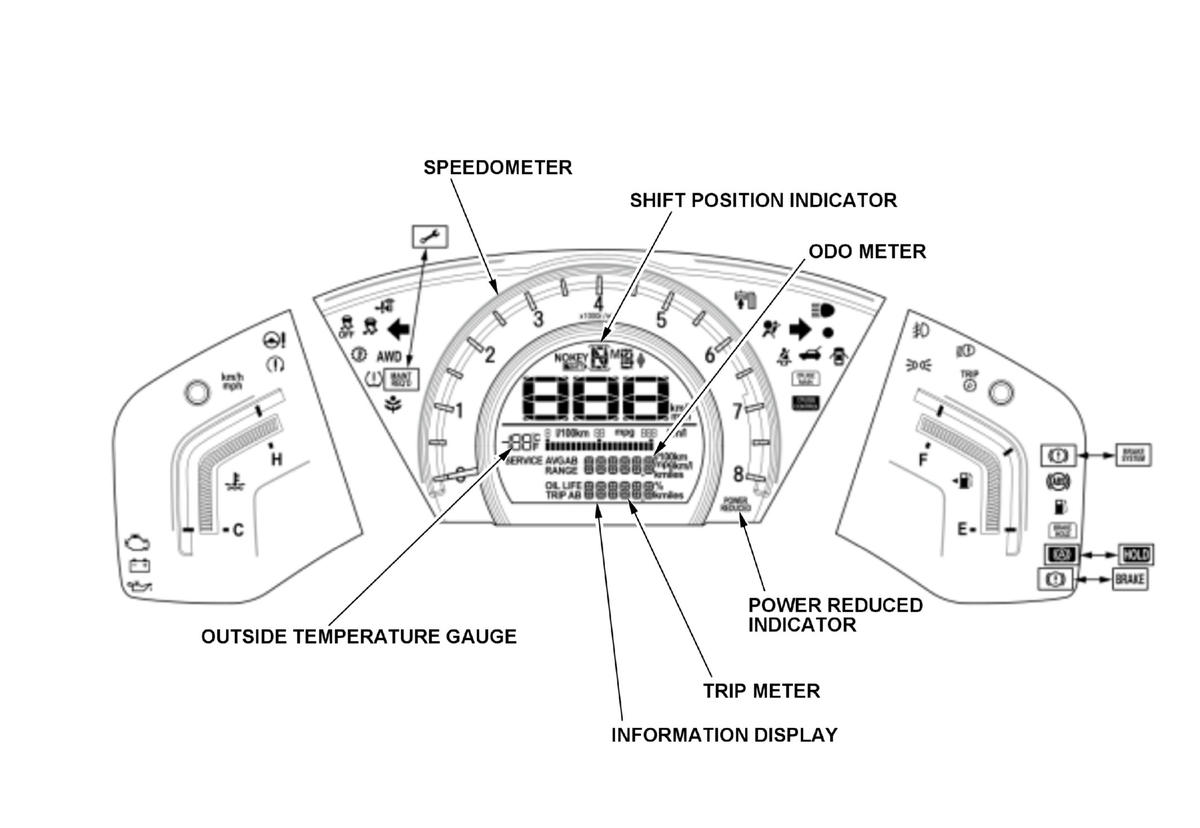

2/4 (Without Multi-information display (MID))

Courtesy of HONDA, U.S.A., INC.

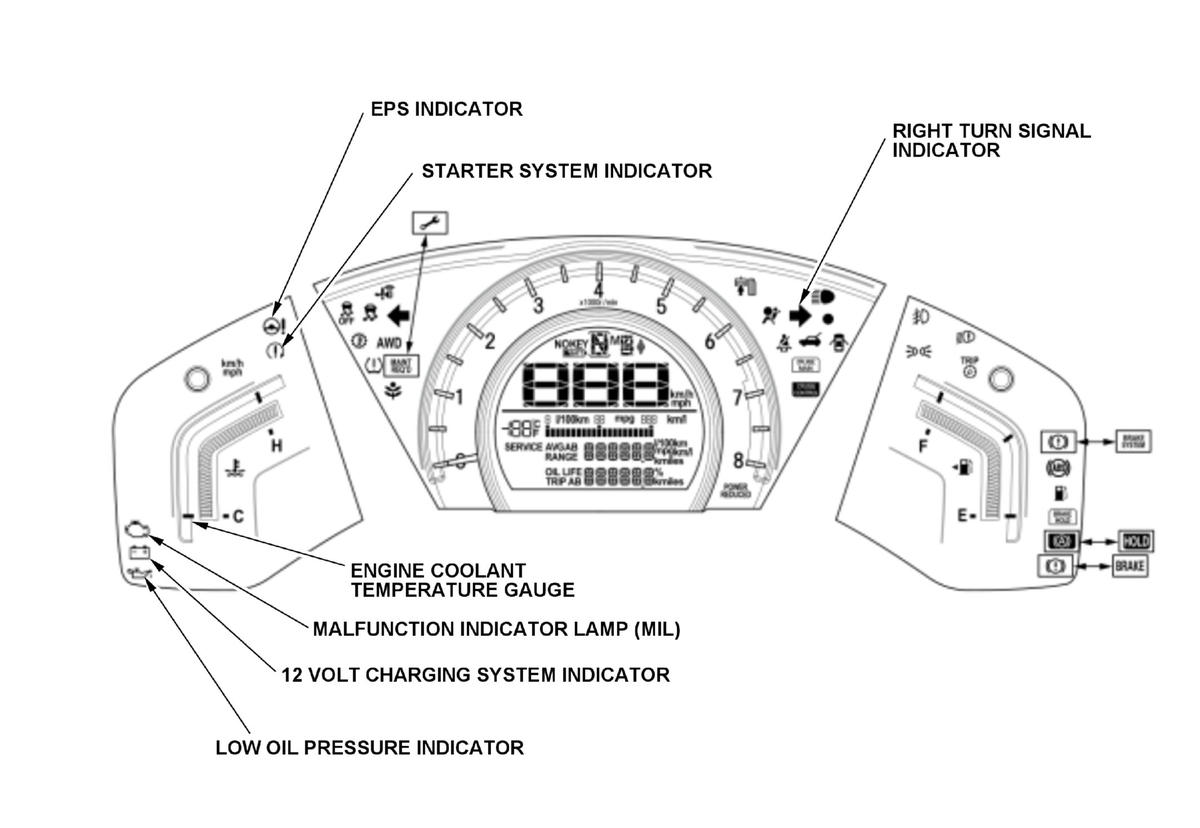

3/4 (Without Multi-information display (MID))

Courtesy of HONDA, U.S.A., INC.

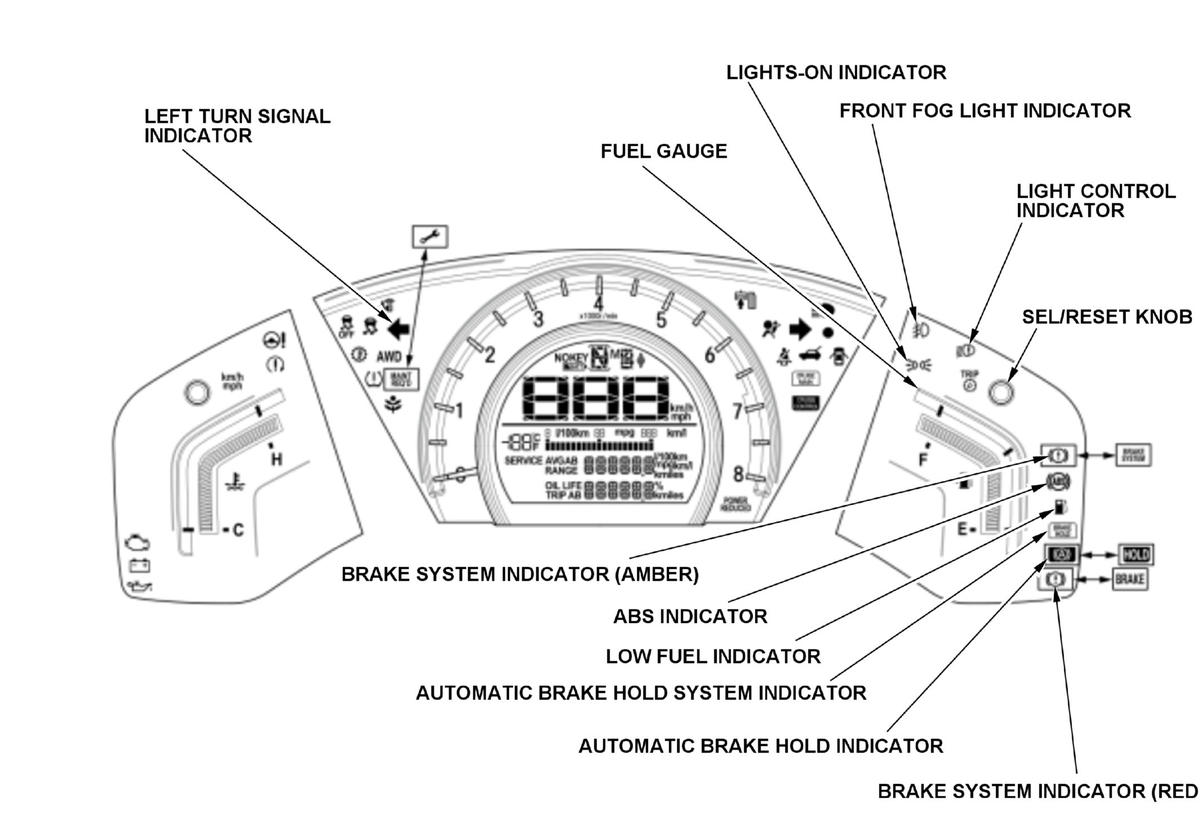

4/4 (Without Multi-information display (MID))

Courtesy of HONDA, U.S.A., INC.
