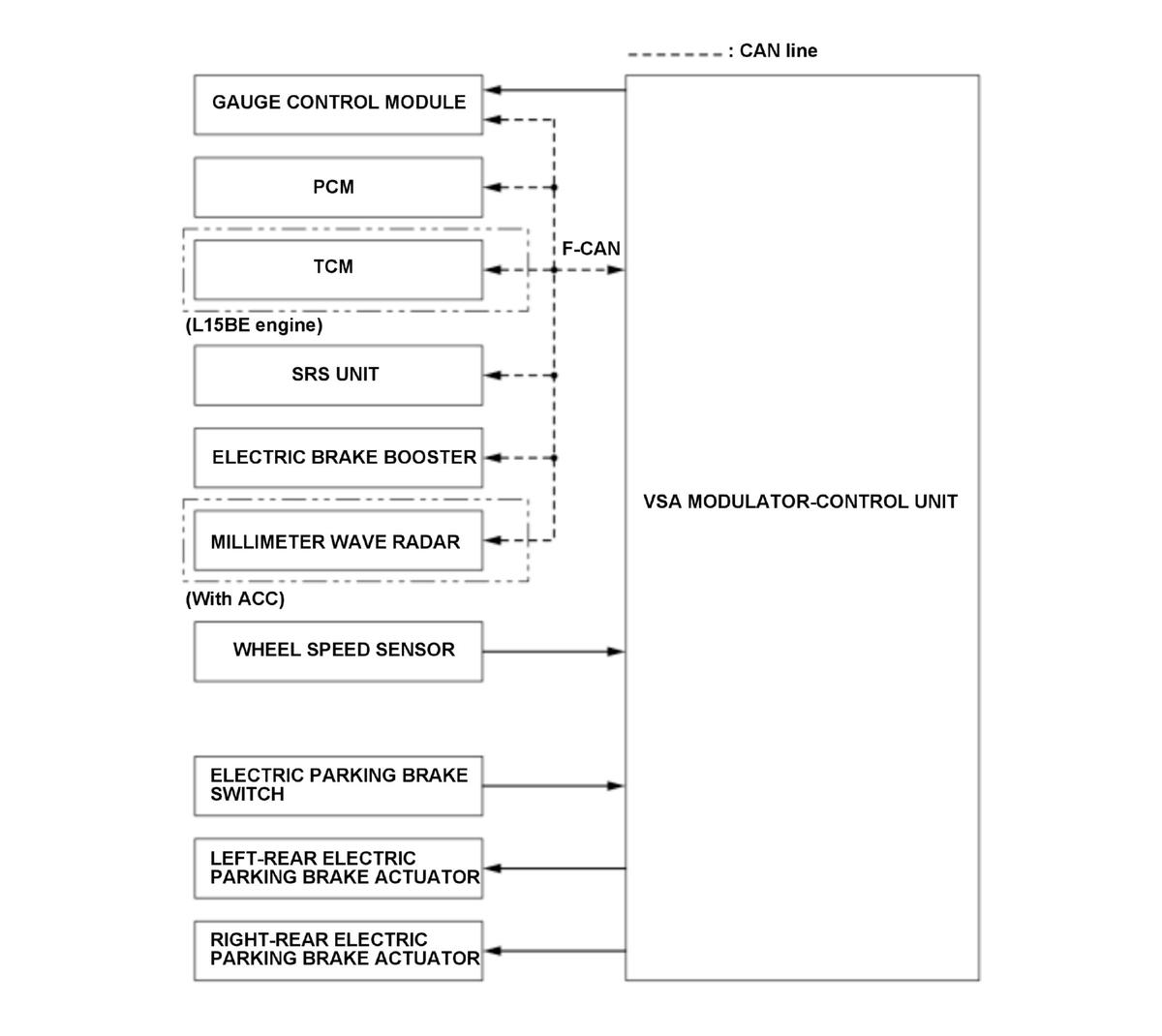

Electric Parking Brake System Description - System Diagram

This system diagram shows the inputs and outputs of the electric parking brake system.

For locations of each component on vehicle, refer to Component Location Index:

Courtesy of HONDA, U.S.A., INC.

F-CAN Communication Data

Electric Parking Brake System Receiving Signal

Transmitting Unit	Signal Name
PCM	Accelerator pedal position signal Engine speed signal Engine torque signal

*1: L15BE engine

*2: With ACC

Transmitting Unit	Signal Name
TCM* 1	Shift position signal
Gauge control module	Odometer data
SRS unit	Driver's seat belt buckle switch status Longitudinal acceleration signal
Electric brake booster	Parking brake apply request signal
Millimeter wave radar *2	Parking brake apply request signal

*1: L15BE engine

*2: With ACC

Electric Parking Brake System Transmitting Signal

Transmitting Unit	Signal Name
VSA modulator-control unit	Indicator drive signal Parking brake status signal System operating status signal System failure Information
