Transmission Removal

Special Tools Required

• Engine Support Hanger, A and Reds AAR-T1256*
• 2008 V6 Attachment Arm SIL02C000033*
• Engine Hanger Balance Bar VSB02C000019*
• Subframe Adapter VSB02C000016*

*: Available through the Honda Tool and Equipment Program 888-424-6857.

1. Open the hood, and secure it with the hood support rod (A) in the wide-open position (B).

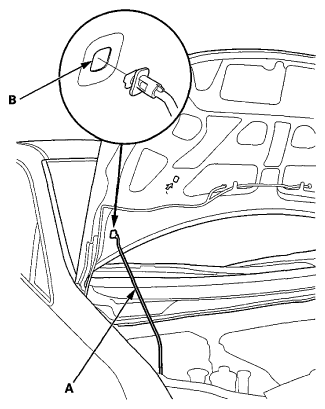

   Fig 1: Identifying Hood Support Rod In Wide-Open Position

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
2. Remove the engine cover.
3. Drain the power steering fluid from the reservoir (see FLUID CHECK/REPLACEMENT ).
4. Set the front wheels in the straight ahead position, and lock the steering wheel.
5. Remove the air intake scoop (A).

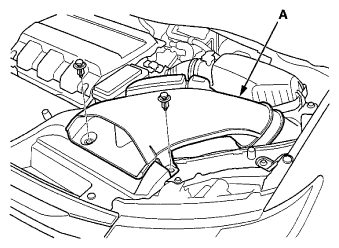

   Fig 2: Identifying Air Intake Scoop

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
6. Do the battery removal procedure (see BATTERY REMOVAL AND INSTALLATION ).
7. Remove the front bulkhead cover (see FRONT BULKHEAD COVER REPLACEMENT ).
8. Remove the cowl cover (see COWL COVER REPLACEMENT ).
9. Remove the air cleaner (see AIR CLEANER ELEMENT INSPECTION/REPLACEMENT ).
10. Remove the intake air duct.
    Fig 3: Identifying Intake Air Duct

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
11. Remove the bolt (A) securing the main under-hood fuse box (B), then remove the harness clamps (C) from the battery base. Remove the main under-hood fuse box.

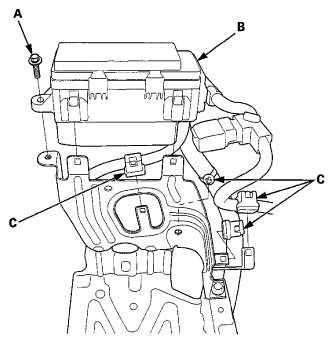

    Fig 4: Identifying Main Under-Hood Fuse Box, Bolt And Harness Clamps

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
12. Remove the mounting bolts (A), and loosen the mounting bolts (B), then remove the harness clamps (C) and the battery base (D).
    Fig 5: Identifying Mounting Bolts, Harness Clamps And Battery Base

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
13. Remove the steering joint cover (A).

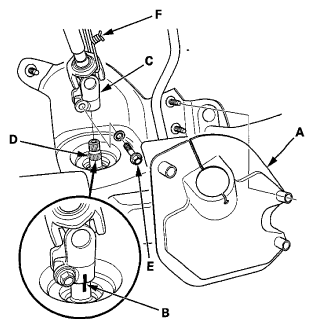

    Fig 6: Identifying Steering Joint Cover, Steering Joint, Steering Gearbox Pinion Shaft And Steering Joint Bolt

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
14. Make reference marks (B) across the steering joint (C) and the steering gearbox pinion shaft (D). If the center, guide is still installed, take care not to displace it. If the center guide is no longer installed, or is displaced during when the joint is disconnected, refer to the reference marks to reinstall the joint. Loosen the steering joint bolt (E), then install the steering wheel holder tool (see step 15 on REMOVAL ).
15. Remove the steering joint bolt, then disconnect the steering joint from the steering gearbox pinion shaft.
    NOTE: Hold the lower slide shaft on the column with a piece of wire (F) between the joint yoke of the lower slide shaft and the joint yoke of the upper shaft to prevent the slider shaft from pulling out.
16. Cover the drive belt auto-tensioner, the alternator, and the A/C compressor with several shop towels to protect them from spilled power steering fluid. Remove the power steering pump outlet hose (A) from the power steering pump, and remove the hose clamp bolt (B). Cover the opening of the pump and the pump outlet hose with a piece of tape to prevent foreign material from entering either the pump or the outlet hose. Take care not to spill fluid on the vehicle. Wipe off any spilled fluid at once.
    Fig 7: Identifying Power Steering Pump Outlet Hose And Hose Clamp Bolt

    Courtesy of AMERICAN HONDA MOTOR CO., INC.

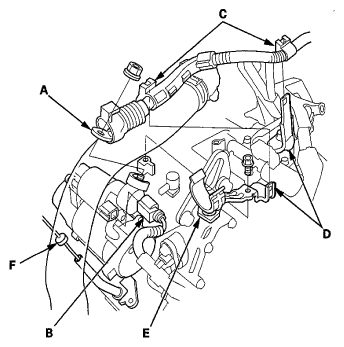

17. Remove the positive starter cable (A), and disconnect the S terminal connector (B) from the starter.
    Fig 8: Identifying Positive Starter Cable, S Terminal Connector, Harness Clamps, Brackets And Upper Radiator Hose Bracket

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
18. Remove the harness clamps (C) from their brackets (D), and remove the upper radiator hose bracket (E).
19. Remove the ATF dipstick (F).
20. Remove the starter (A) with the harness clamp bracket (B) and the gasket (C) from the transmission.

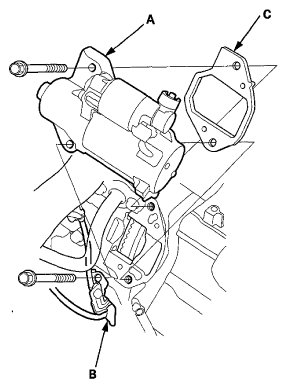

    Fig 9: Identifying Starter, Harness Clamp Bracket And Transmission Gasket

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
21. Insert the dipstick back into the dipstick guide tube.
22. Remove the spring clip (A) and the control pin (B), then separate the shift cable end (C) from the selector control lever (D).

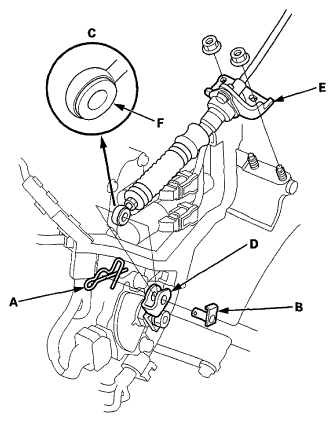

    Fig 10: Identifying Spring Clip, Control Pin, Shift Cable End And Selector Control Lever

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
23. Remove the nuts securing the shift cable bracket (E).
24. Check the bushing (F) in the shift cable end for proper fit and wear. If the bushing is loose or worn, replace the shift cable (see SHIFT CABLE REPLACEMENT  ).
25. Disconnect these connectors:
    • A/T clutch pressure control solenoid valve A connector (A)
    • A/T clutch pressure control solenoid valve B connector (B)
    • Transmission fluid pressure switch C (4th clutch) connector (C)
    • Shift solenoid wire harness connector (D)

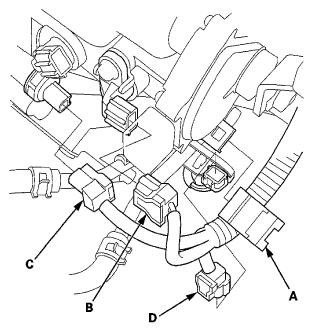

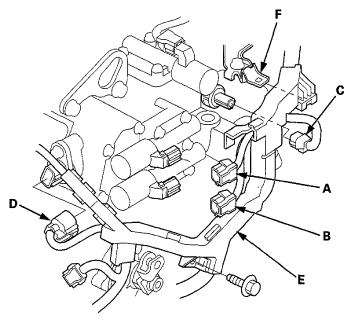

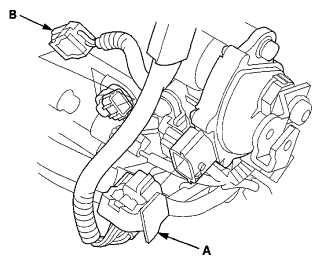

      Fig 11: Identifying A/T Clutch Pressure Control Solenoid Valve Connectors, Shift Solenoid Wire Harness Connector, Harness Cover And Bracket

      Courtesy of AMERICAN HONDA MOTOR CO., INC.
26. Remove the bolt securing the harness cover (E), and remove the harness cover from its bracket (F).
27. Disconnect these connectors:
    • Transmission range switch connector (A)
    • Input shaft (mainshaft) speed sensor connector (B)
      Fig 12: Identifying Transmission Range Switch Connector And Input Shaft (Mainshaft) Speed Sensor Connector

      Courtesy of AMERICAN HONDA MOTOR CO., INC.
28. Remove the harness clamp (A) from its bracket.
    Fig 13: Identifying Harness Clamp, Output Shaft (Countershaft) Speed Sensor Connector And ATF Temperature Sensor Connector

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
29. Disconnect these connectors:
    • Output shaft (countershaft) speed sensor connector (B)
    • Transmission fluid pressure switch B (3rd clutch) connector (C)
    • ATF temperature sensor connector (D)
30. Disconnect the A/T clutch pressure control solenoid valve C connector (A).

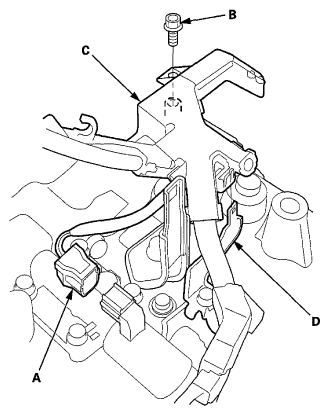

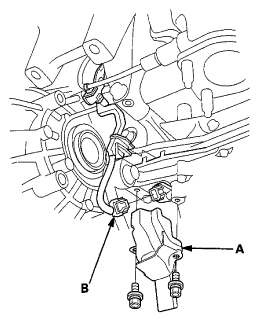

    Fig 14: Identifying A/T Clutch Pressure Control Solenoid Valve C Connector, Harness Cover Mounting Bolt, Harness Cover And Bracket

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
31. Remove the harness cover mounting bolt (B), and remove the harness cover (C) from its bracket (D).
32. Disconnect the transmission fluid pressure switch A (2nd clutch) connector.
    Fig 15: Identifying Transmission Fluid Pressure Switch A (2nd Clutch) Connector

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
33. Disconnect the ATF cooler hoses (A) from the ATF cooler lines (B). Turn the ends of the cooler hoses up to prevent ATF from flowing out, then plug the cooler hoses and lines.

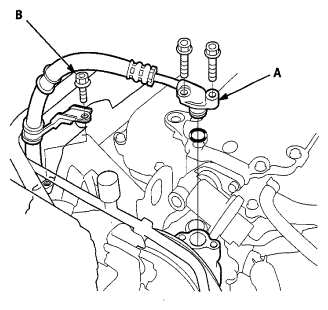

    Fig 16: Identifying ATF Cooler Hoses And ATF Cooler Lines

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
34. Check for any signs of leakage at the hose joints.
35. Remove the bolt (A) securing the connector bracket (B) from the front cylinder head; use the bracket bolt hole (C) to attach the engine hanger balance bar front arm.
    Fig 17: Identifying Connector Bracket, Bolt And Bracket Bolt Hole

    Courtesy of AMERICAN HONDA MOTOR CO., INC.

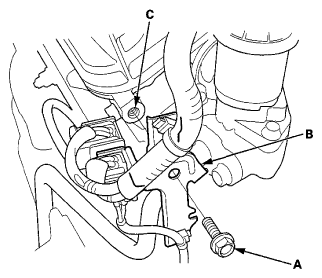

36. Remove the bolt (A) securing the harness bracket (B) from the rear cylinder head; use the bracket bolt hole (C) to attach the 2008 V6 attachment arm.
    Fig 18: Identifying Harness Bracket, Bolt And Bracket Bolt Hole

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
37. Install the engine hanger balance bar (VSB02C000019). Attach the front arm (A) to the front cylinder head with a 10 mm (0.39 in) spacer (B) and a 10 x 1.25 mm bolt (C). Remove the rear arm from the engine hanger balance bar, then install the 2008 V6 attachment arm (SIL02C000033). Attach the 2008 V6 attachment arm to the rear cylinder head with a 10 mm (0.39 in) spacer (D) and an 8 x 1.25 mm bolt (E).

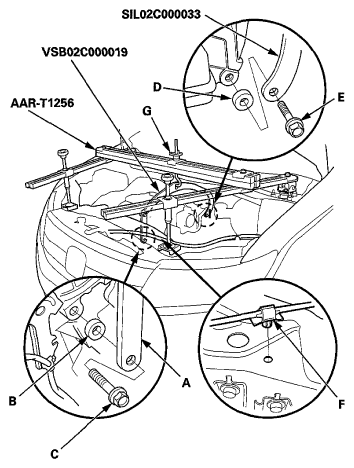

    Fig 19: Installing Engine Hanger Balance Bar (VSB02C000019)

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
38. Remove the hood opener cable clip (F). Install the engine support hanger (AAR-T1256) onto the vehicle as shown, and attach the hook to the slotted hole in the engine hanger balance bar. Tighten the wing nut (G) by hand, and lift and support the engine.
    NOTE:

    • Be careful when working around the windshield.
    • Be careful not to damage the hood opener cable when installing the engine support hanger at the front bulkhead.
    • AAR-T1256 two sets required for stacking two cross section bars.
39. Remove the dipstick.
40. Remove the front subframe damper (A).
    Fig 20: Identifying Front Subframe Damper

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
41. Remove the front engine mount stop (A), then remove the bolt (B) securing the front engine mount.

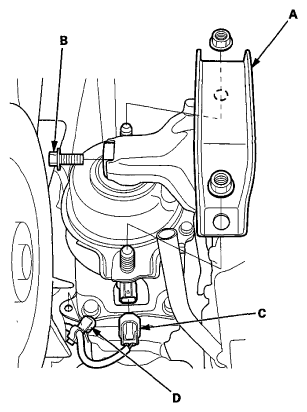

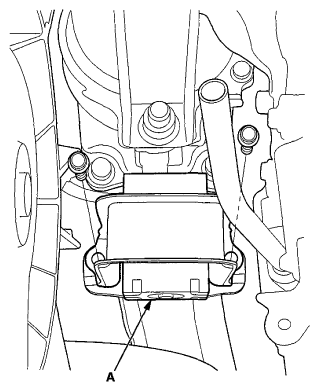

    Fig 21: Identifying Front Engine Mount Stop, Front Engine Mount Securing Bolt, Front Engine Mount Actuator Connector And Harness Clamp

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
42. Disconnect the front engine mount actuator connector (C), and remove the harness clamp (D) from its bracket.
43. Insert the dipstick back into the dipstick guide tube.
44. Remove the upper transmission housing mounting bolts.
    Fig 22: Identifying Upper Transmission Housing Mounting Bolts

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
45. Raise the vehicle on a lift, and make sure it is securely supported.
46. Remove the front wheels.
47. Remove the front inner fender on both sides (see FRONT INNER FENDER REPLACEMENT ).
48. Remove the front splash shield (see FRONT SPLASH SHIELD REPLACEMENT ).
49. Remove the drain plug (A), and drain the automatic transmission fluid (ATF).
    Fig 23: Drain Plug And Sealing Washer With Torque Specifications

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
50. Reinstall the drain plug with a new sealing washer (B).
51. Remove the torque converter cover (A), and remove the drive plate bolts (B) (8) while rotating the crankshaft pulley.
    Fig 24: Identifying Torque Converter Cover And Drive Plate Bolts

    Courtesy of AMERICAN HONDA MOTOR CO., INC.

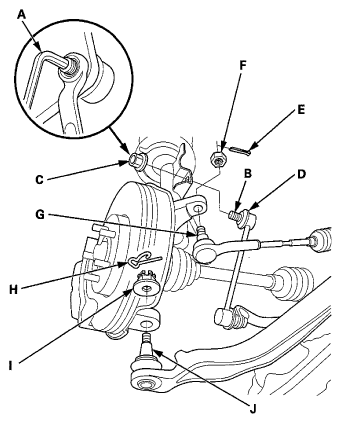

52. Insert a hex wrench (A) in the top of the stabilizer link ball joint pin (B), and remove the nut (C), then remove the stabilizer link (D) from the knuckle on both sides.
    Fig 25: Inserting Hex Wrench In Top Of Stabilizer Link Ball Joint Pin

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
53. Remove the cotter pin (E) and the nut (F), and remove the tie-rod end ball joint (G) from the knuckle on both sides (see BALL JOINT REMOVAL ).
54. Remove the lock pin (H) and the castle nut (I), and remove the lower arm ball joint (J) from the knuckle on both sides (see BALL JOINT REMOVAL ).
55. Remove exhaust pipe A (see EXHAUST PIPE AND MUFFLER REPLACEMENT ).
56. Disconnect the power steering fluid hose (A) from the power steering fluid line (B) Turn the end of the hose up to prevent power steering fluid from flowing out, then plug the hose and cap the line.
    Fig 26: Identifying Power Steering Fluid Hose And Power Steering Fluid Line

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
57. Disconnect the power steering pressure switch connector.
    Fig 27: Identifying Power Steering Pressure Switch Connector

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
58. Disconnect the rear engine mount actuator connector.
    Fig 28: Identifying Rear Engine Mount Actuator Connector

    Courtesy of AMERICAN HONDA MOTOR CO., INC.

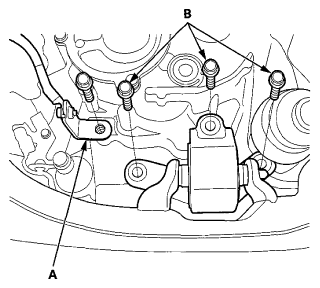

59. Remove the transmission ground cable bracket (A).
    Fig 29: Identifying Transmission Ground Cable Bracket And Lower Transmission Mount Bolts

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
60. Remove the lower transmission mount bolts (B).
61. Remove the bolt (A) securing the power steering heat shield.
    Fig 30: Identifying Power Steering Heat Shield Securing Bolt And Rear Engine Mounting Base Securing Bolts

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
62. Remove the bolts (B) securing the rear engine mounting base.

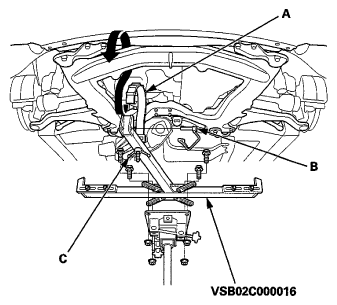

63. Attach the subframe adapter (VSB02C000016) to the front subframe by looping the strap (A) over the front of the front subframe, then secure the strap with the stop (B), then tighten the wing nut (C).

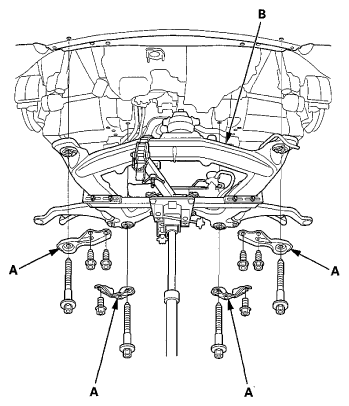

    Fig 31: Attaching Subframe Adapter (VSB02C000016) To Front Subframe

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
64. Raise the jack and line up the slots in the arms with the bolt holes on the corner of the jack base, then attach them with the bolts.
65. Remove the six bolts securing the stiffeners (A) and the four bolts securing the front subframe (B), then lower the front subframe.
    NOTE: Check that the front subframe is free of the hoses and the electrical wiring.
    Fig 32: Placing Jack Under Transmission

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
66. Place the jack under the transmission.
67. Remove the left side driveshaft from the differential. Coat all precision machined surfaces with clean engine oil, then put plastic bag over the left driveshaft end. Support the left side driveshaft with nylon strap.
    NOTE: Plug the left side driveshaft hole (A) to prevent dirt and solvent from entering the transmission.
    Fig 33: Identifying Left Side Driveshaft Hole

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
68. Remove the rear warm up three way catalytic converter (WU-TWC) bracket (A), and remove the right side driveshaft (B).
    NOTE: Plug the right side driveshaft hole (C) to prevent dirt and solvent from entering the transmission.
    Fig 34: Identifying Rear Warm Up Three Way Catalytic Converter (WU-TWC) Bracket, Right Side Driveshaft And Right Side Driveshaft Hole

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
69. Coat all precision finished surfaces with clean engine oil, then put plastic bags over right side driveshaft. Support the right side driveshaft with nylon strap.

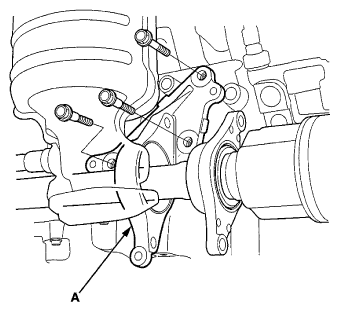

70. Remove the driveshaft support base (A).
    Fig 35: Identifying Driveshaft Support Base

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
71. Remove the crankshaft position (CKP) sensor cover (A), and disconnect the CKP sensor connector (B).
    Fig 36: Identifying Crankshaft Position (CKP) Sensor Cover And CKP Sensor Connector

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
72. Remove the front engine mount bracket.
    Fig 37: Identifying Front Engine Mount Bracket

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
73. Check that the transmission is completely free of the hoses and the electrical wiring.

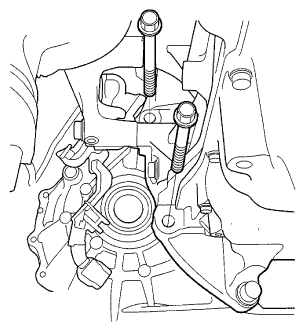

74. Remove the front transmission housing mounting bolt (A) using a socket 22 mm long.
    Fig 38: Identifying Front Transmission Housing Mounting Bolt

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
75. Remove the front transmission housing mounting bolt (B).
76. Remove the rear transmission housing mounting bolts.
    NOTE: Be careful not to damage the CKP sensor.
    Fig 39: Identifying Rear Transmission Housing Mounting Bolts

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
77. Remove the lower transmission housing mounting bolts.
    Fig 40: Identifying Lower Transmission Housing Mounting Bolts

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
78. Check once again that the transmission is free of hoses and electrical wiring.
79. Slide the transmission away from the engine to remove it from the vehicle.
80. Remove the torque converter (A), the O-ring (B), and the dowel pins (C).

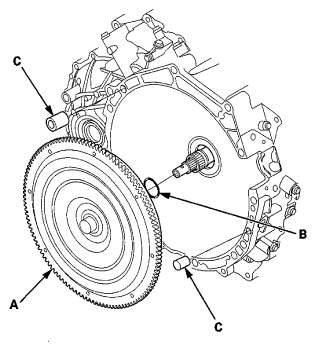

    Fig 41: Identifying Torque Converter, O-Ring And Dowel Pins

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
81. Inspect the drive plate, and replace it if it is damaged (see DRIVE PLATE REMOVAL AND INSTALLATION  ).

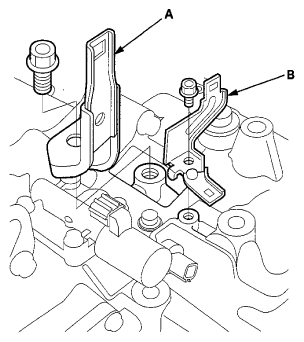

82. Remove the clamp bracket (A) and the harness cover bracket (B) from the transmission.
    Fig 42: Identifying Clamp Bracket And Harness Cover Bracket

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
