Drive Plate Removal and Installation

WARNING: This page is about a different car, the 2013 Honda Odyssey, 2012 Honda Odyssey, and 2011 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the transmission assembly (see TRANSMISSION REMOVAL  ).
  2. Remove the drive plate (A) and the washer (B) from the engine crankshaft.

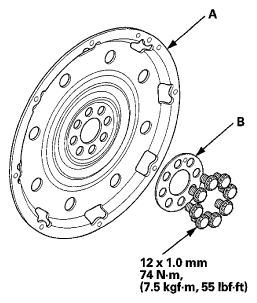

    Fig 1: Drive Plate And Washer With Torque Specifications
    G06967007Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the drive plate and the washer on the engine crankshaft, and tighten the eight bolts in a crisscross pattern in at least two steps.
  4. Install the transmission assembly (see TRANSMISSION INSTALLATION  ).
