Front Inner Fender Replacement

NOTE:

Put on gloves to protect your hands.
Take care not to scratch the body or the front bumper.
When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.

Remove the front wheel (see KNUCKLE/HUB BEARING UNIT REPLACEMENT ).
Remove the front inner fender (A).
1. Canada models: Remove the screws (B), then remove the front splash guard (C).
2. Remove the screws (D).
3. Remove the bolts (E).
4. Detach the clips (F, G, H).
  NOTE: To release the clips H, pry up on the center pin at the notch (I).

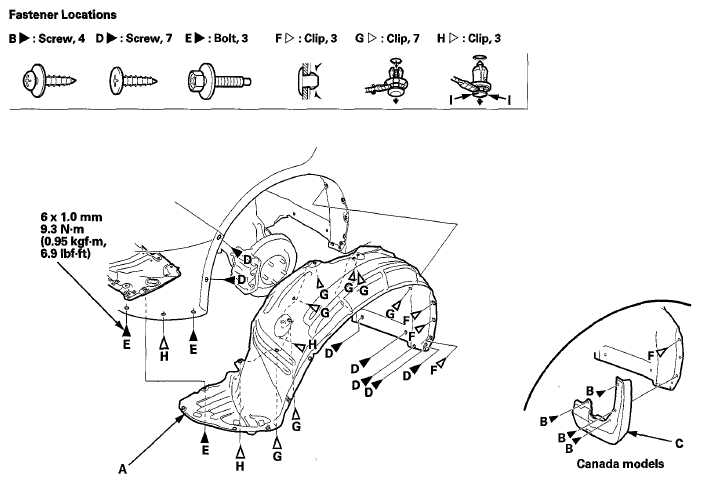

  Fig 1: Front Inner Fender Replacement Components With Torque Specifications
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the inner fender in the reverse order of removal, and note these items:
- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips into place securely.
