Front Bulkhead Cover Replacement

NOTE:

Take care not to scratch the front bumper or the body.
When prying with a flap-tip screwdriver, wrap it with protective tape to prevent damage.

Remove the air intake scoop (see step 1 on INTAKE AIR RESONATOR REMOVAL/INSTALLATION ).
Detach the clips, then remove the front bulkhead cover (A).
NOTE: To release the clips, pry up on the center pin at the notch (B).

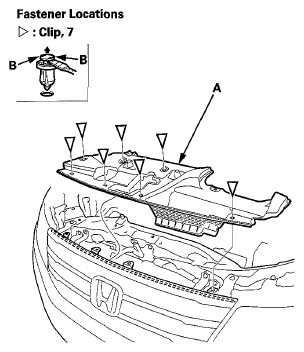

Fig 1: Identifying Front Bulkhead Cover Clips
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the cover in the reverse order of removal, and note these items:
- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips into place securely.
