Cowl Cover Replacement

Special Tools Required

KTC Trim Tool Set SOJATP2014*

*Available through the Honda Tool and Equipment Program; call 888-424-6857

NOTE:

Take care not to scratch the cowl cover or the body.
Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.

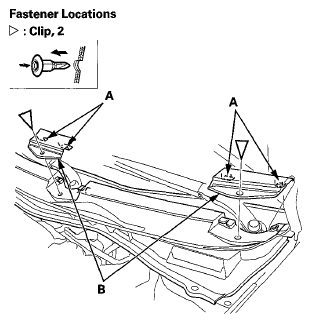

Detach the clips, and release the hooks (A), then remove the cowl top wiper covers (B).

Fig 1: Identifying Cowl Top Wiper Covers And Hooks
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the windshield wiper arms, (see WIPER ARM REPLACEMENT )
Detach the clips securing the cowl cover (A) with a appropriate trim tool.

Fig 2: Identifying Cowl Cover
Courtesy of AMERICAN HONDA MOTOR CO., INC.

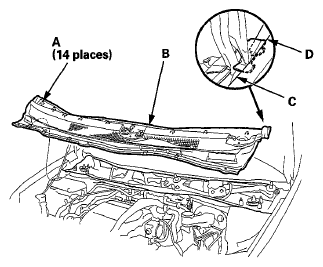

Release the hooks (A) (14 places) of the cowl cover (B) by pulling the cover forward. Pull out the cowl cover from the front fender (C) and the windshield side trim (D).

Fig 3: Identifying Cowl Cover Hooks And Windshield Side Trim
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the cover in the reverse order of removal, and note these items:
- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips and the hooks into place securely.
