Cam Chain Removal

NOTE: Keep the cam chain away from magnetic fields.
  1. Turn the crankshaft pulley so its top dead center (TDC) mark (A) lines up with the pointer (B).

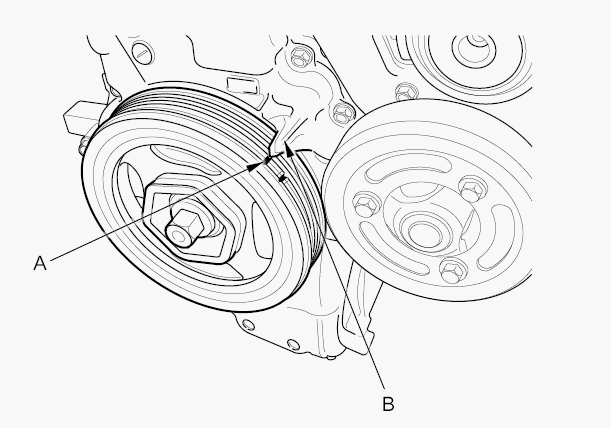

    Fig 1: Identifying Crankshaft Pulley To Top Dead Center (TDC)
    G00514294Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the cylinder head cover (see CYLINDER HEAD COVER REMOVAL  ).
  3. Set the No. 1 piston at top dead center (TDC). The "UP" mark (A) on the camshaft sprocket should be at the top, and the TDC grooves (B) on the camshaft sprocket should line up with the top edge of the head.
    Fig 2: Locating UP Mark On Camshaft Sprocket And TDC Grooves On Camshaft Sprocket
    G06949379Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the right front wheel.
  5. Remove the splash shield (see SPLASH SHIELD REPLACEMENT ).
  6. Loosen the water pump pulley mounting bolts.

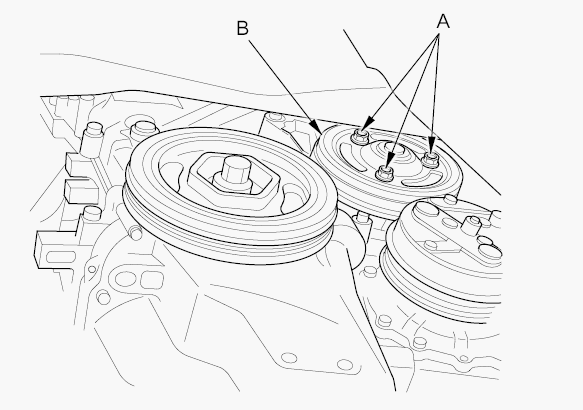

    Fig 3: Identifying Water Pump Pulley Mounting Bolts
    G00514295Courtesy of AMERICAN HONDA MOTOR CO., INC.
  7. Remove the drive belt (see DRIVE BELT REPLACEMENT ).
  8. Remove the water pump pulley (see step 6 on WATER PUMP REPLACEMENT ).
  9. Remove the crankshaft pulley (see REMOVAL  ).
  10. Remove the A/C line bracket mounting bolt.
    Fig 4: Locating A/C Line Bracket Mounting Bolt
    G06949380Courtesy of AMERICAN HONDA MOTOR CO., INC.
  11. Support the engine with a jack and a wood block under the oil pan.
  12. Remove the ground cable (A), then remove the side engine mount/bracket assembly (B).

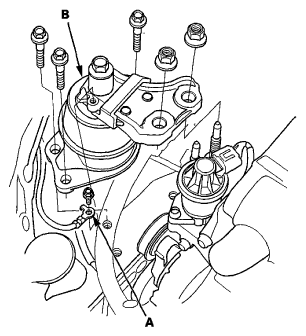

    Fig 5: Locating Ground Cable And Side Engine Mount/Bracket Assembly
    G06949381Courtesy of AMERICAN HONDA MOTOR CO., INC.
  13. Remove the cam chain case.

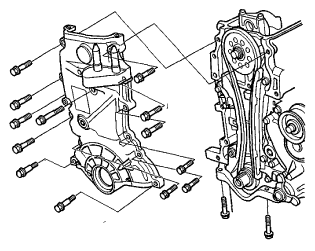

    Fig 6: Identifying Cam Chain Case
    G06949382Courtesy of AMERICAN HONDA MOTOR CO., INC.
  14. Measure the cam chain separation. If the distance is less than the service limit, replace the cam chain and the cam chain tensioner.

    Standard Distance: 19 mm (0.75 in)

    Service Limit: 15 mm (0.59 in)

    Fig 7: Measuring Cam Chain Separation
    G06949383Courtesy of AMERICAN HONDA MOTOR CO., INC.
  15. Apply new engine oil to the sliding surface of the cam chain tensioner slider (A).
    Fig 8: Applying Engine Oil To Sliding Surface Of Cam Chain Tensioner Slider
    G06949384Courtesy of AMERICAN HONDA MOTOR CO., INC.
  16. Hold the cam chain tensioner slider with a screwdriver, then remove the upper bolt (B), and loosen the lower bolt (C).
  17. Remove the cam chain tensioner slider.
    Fig 9: Identifying Cam Chain Tensioner Slider
    G06949385Courtesy of AMERICAN HONDA MOTOR CO., INC.
  18. Remove the cam chain tensioner (A) and the cam chain guide (B).
    Fig 10: Locating Cam Chain Tensioner And Cam Chain Guide
    G06949386Courtesy of AMERICAN HONDA MOTOR CO., INC.
  19. Remove the cam chain.
