Cylinder Head Cover Removal

  1. Remove the intake manifold chamber (see REMOVAL ).
  2. Disconnect the four ignition coil connectors (A).

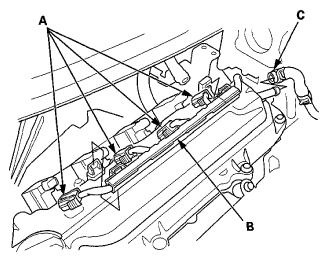

    Fig 1: Locating Ignition Coil Connectors
    G06949411Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the harness holder (B), and disconnect the breather hose (C).
  4. Remove the cylinder head cover.

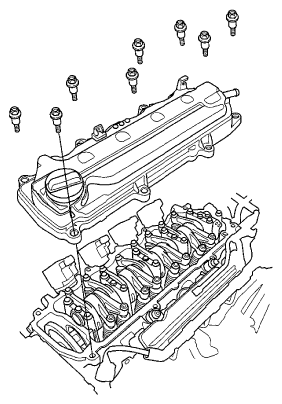

    Fig 2: Locating Harness Holder And Breather Hose
    G06949412Courtesy of AMERICAN HONDA MOTOR CO., INC.
