Drive Belt Replacement

Special Tools Required

Belt Tension Release Tool Snap-on YA9317* or equivalent, commercially available

1. Move the auto-tensioner (A) using the belt tension release tool (YA3317) in the direction shown to relieve tension from the drive belt, then remove the drive belt.

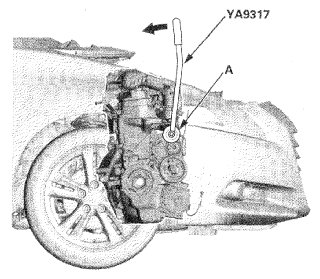

   Fig 1: Moving Auto-Tensioner Using Belt Tension Release Tool (YA3317)

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
2. Install the new belt in the reverse order of removal.
3. Cheek the position of the auto-tensioner indicator (A) is within the standard range (B) as shown. If it is out of the standard range, check the auto-tensioner (see DRIVE BELT AUTO-TENSIONER INSPECTION  ).

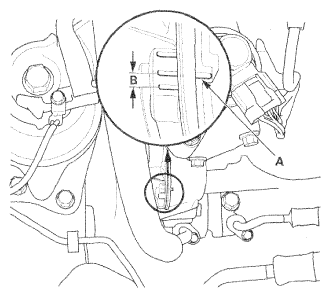

   Fig 2: Identifying Auto-Tensioner Position Within Standard Range
