Crankshaft Pulley Removal and Installation: Removal

  1. Raise the vehicle on the lift.
  2. Remove the right front wheel.
  3. Remove the splash shield (see SPLASH SHIELD REPLACEMENT ).
  4. Remove the drive belt (see DRIVE BELT REPLACEMENT ).

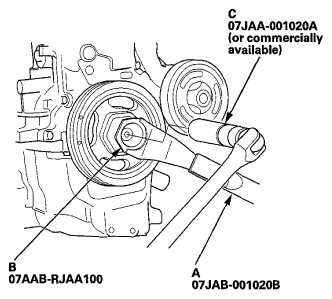

  5. Hold the pulley with the holder handle (A) and the crankshaft pulley holder (B).
    Fig 1: Holding Pulley With Holder Handle And Crankshaft Pulley Holder
    G06949375Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Remove the bolt with a socket, 19 mm (C) and a breaker bar, then remove the crankshaft pulley.
