Splash Shield Replacement

NOTE:

Put on gloves to protect your hands.
Take care not to scratch the body or the related parts.
When prying with a flat-tip screwdriver, wrapped it with protective tape to prevent damage.

From under the body, remove the clips (A, B) and the screws (C), then remove the engine undercover (D).
NOTE: To release the clips (A), pry up on the center pin at the notch (E).
Remove the splash shield (F).
1. From the wheel arch on both sides, remove the clips (G) that secure the splash shield and the front inner fender (H) to the body.
2. From under the front bumper (I), remove the clips (J) and the screws (K).
3. From under the body, remove the clips (L, M) that secure the splash shield to the body.
4. Release the hooks (N) of the splash shield from the front inner fender, then pull out the splash shield.
5. If necessary, remove the screws (0) from the splash shield, then remove the maintenance lid (P).
  NOTE: To release the clips (G, J, L), pry up on the center pin at the notch (E).

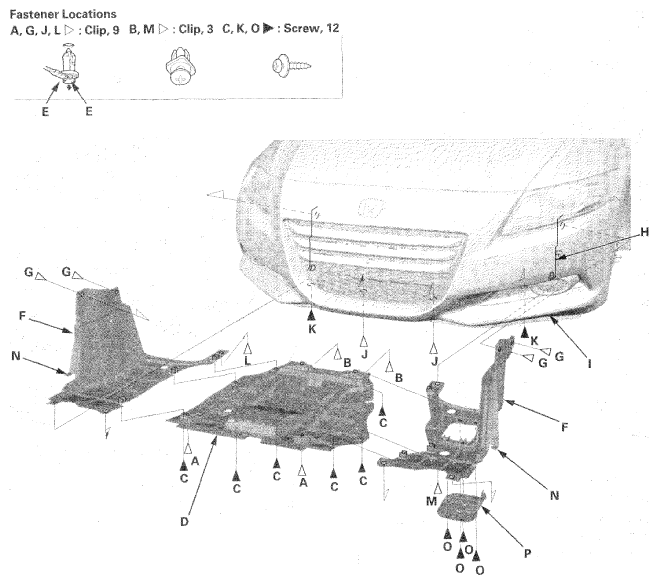

  Fig 1: Identifying Splash Shield, Front Inner Fender, Front Bumper, Maintenance Lid, Clips, Screws, Hooks And Notch
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the splash shield in the reverse order of removal, and note these items:
- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips and the hooks into place securely.
