Installation Procedure

  1. GM4628176Courtesy of GENERAL MOTORS COMPANY

    Make note of the routing of the instrument panel harness (1) around the bracket that support the passenger airbag. If it is improperly installed the harness will interfere with the installation of the passenger airbag.

  2. GM4628206Courtesy of GENERAL MOTORS COMPANY

    With the aid of an assistant, install the instrument panel tie bar (1) into the vehicle.

  3. Install the brake pedal assembly guide pins to the tie bar bracket.
  4. GM4628198Courtesy of GENERAL MOTORS COMPANY

    Seat the instrument panel tie bar on the body hinge pillar tie bar bracket (1) making sure the tab is engaged.

  5. GM4628190Courtesy of GENERAL MOTORS COMPANY

    Seat the instrument panel tie bar on the body hinge pillar tie bar bracket (1) making sure the tab is engaged.

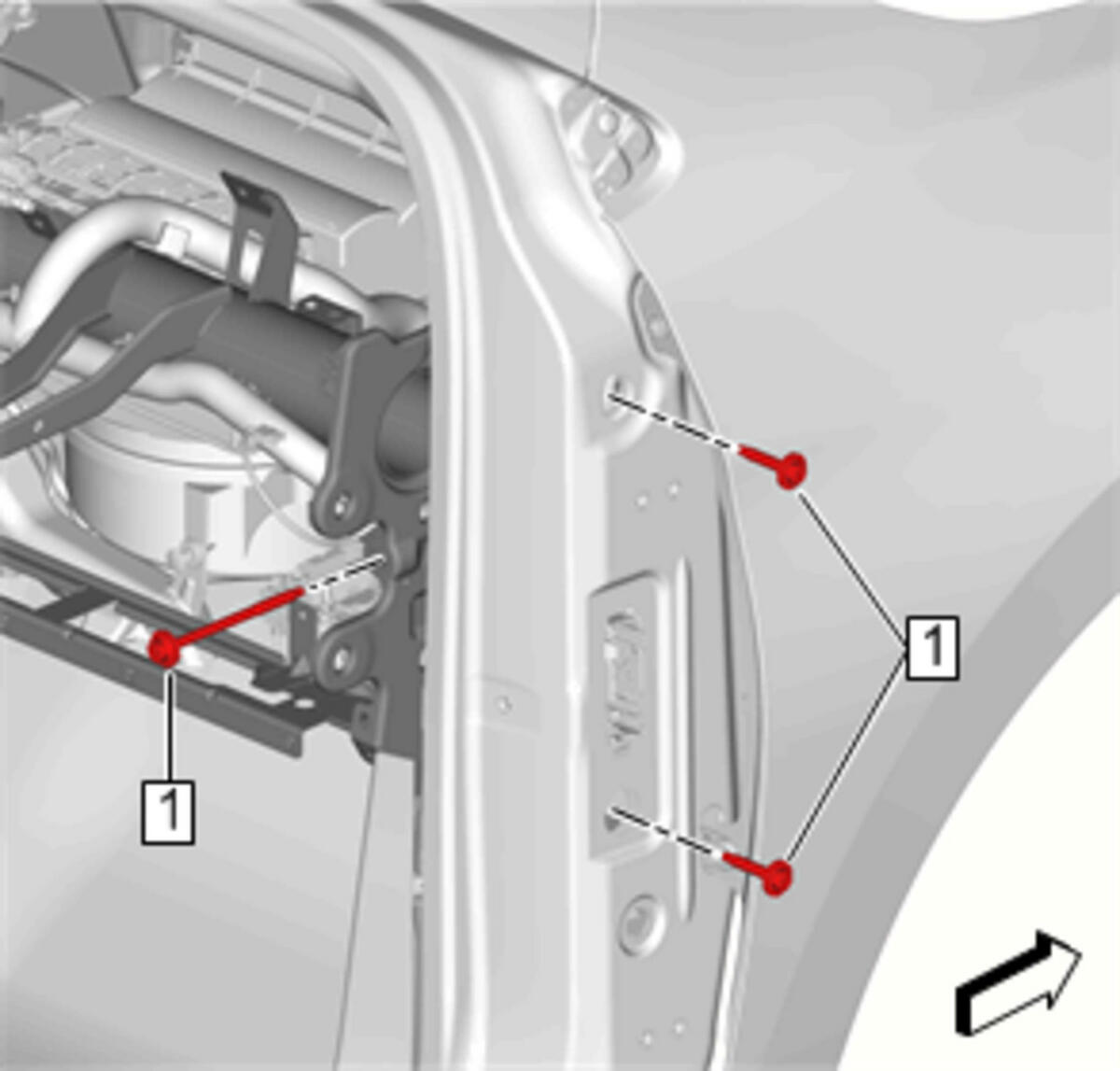

  6. GM4601635Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Instrument Panel Tie Bar Bolt (1) - Install and tighten [3x] 22 N.m (16 lb ft)

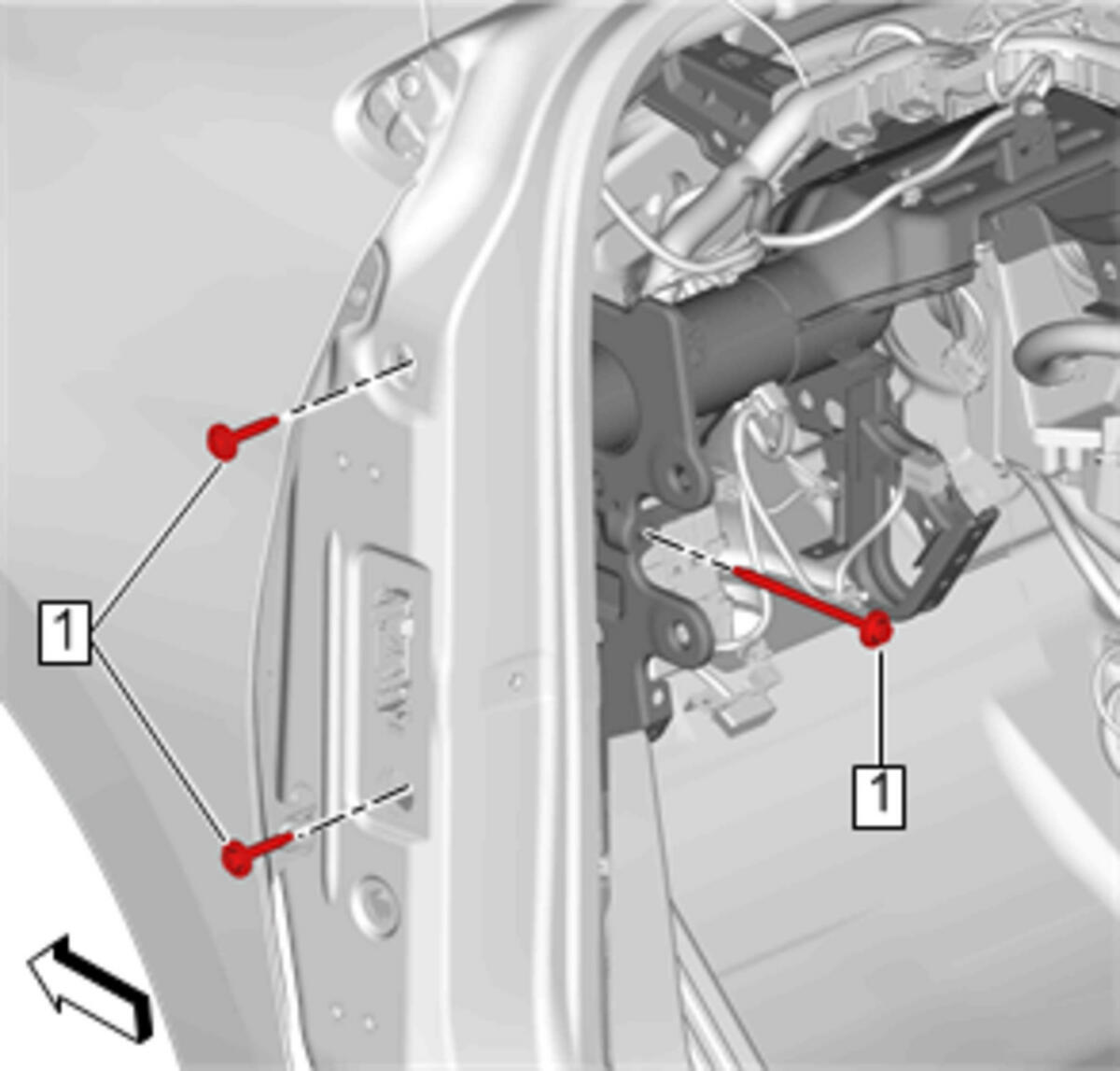

  7. GM4601633Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Tie Bar Bolt (1) - Install and tighten [3x] 22 N.m (16 lb ft)

  8. GM4628159Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Tie Bar Brace Bolt (1) - Install and tighten22 N.m (16 lb ft)

  9. GM3923967Courtesy of GENERAL MOTORS COMPANY

    Air Conditioning Evaporator and Blower Module Nut (1) @ Cowl Panel - Tighten9 N.m (80 lb in)

  10. GM4601626Courtesy of GENERAL MOTORS COMPANY

    Seat the HVAC module tabs into the tie bar.

  11. Heater and Air Conditioning Evaporator and Blower Module Bolt (1) - Install and tighten5 N.m (44 lb in)
  12. Instrument Panel Wiring Harness Ground Nut (2) - Install and tighten [3x] 9 N.m (80 lb in)
  13. Heater and Air Conditioning Evaporator and Blower Module Nut (3) - Install and tighten [2x] 5 N.m (44 lb in)
  14. GM4601624Courtesy of GENERAL MOTORS COMPANY

    Air Conditioning Evaporator and Blower Module Bolt (1) - Install and tighten8 N.m (71 lb in)

  15. GM4601623Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Wiring Harness Fuse Block Bracket Bolt (3) - Install and tighten [2x] 2.5 N.m (22 lb in)

  16. Instrument Panel Wiring Harness Junction Block (2) - Install
  17. If equipped, replace the zip tie (1) holding the harness together.
  18. GM4567730Courtesy of GENERAL MOTORS COMPANY

    Air Inlet Grille Panel (2) - Install - Air Inlet Grille Panel Replacement

  19. GM3903420Courtesy of GENERAL MOTORS COMPANY

    Install the left and right windshield wiper arm (3). Windshield Wiper Arm Replacement

  20. GM4567563Courtesy of GENERAL MOTORS COMPANY

    Install the left and right air inlet grille panel extension (1). Air Inlet Grille Panel Extension Replacement (Left Side) , or Air Inlet Grille Panel Extension Replacement (Right Side)

  21. GM4733769Courtesy of GENERAL MOTORS COMPANY

    Install the right instrument panel center lower bracket (3). Instrument Panel Center Lower Bracket Replacement (Equinox - Left Side) , or Instrument Panel Center Lower Bracket Replacement (Equinox - Right Side) , or Instrument Panel Center Lower Bracket Replacement (Terrain - Left Side) , or Instrument Panel Center Lower Bracket Replacement (Terrain - Right Side)

  22. GM4733746Courtesy of GENERAL MOTORS COMPANY

    Install the left instrument panel center lower bracket (3). Instrument Panel Center Lower Bracket Replacement (Equinox - Left Side) , or Instrument Panel Center Lower Bracket Replacement (Equinox - Right Side) , or Instrument Panel Center Lower Bracket Replacement (Terrain - Left Side) , or Instrument Panel Center Lower Bracket Replacement (Terrain - Right Side)

  23. GM4598967Courtesy of GENERAL MOTORS COMPANY

    Radio Bracket (2) - Install - Radio Bracket Replacement (Equinox) , or Radio Bracket Replacement (Terrain)

  24. Install the left and right front side door sill. Front Side Door Sill Garnish Molding Replacement (Equinox) , or Front Side Door Sill Garnish Molding Replacement (Terrain)
  25. Install the left and right front side door. Front Side Door Replacement
  26. GM4601501Courtesy of GENERAL MOTORS COMPANY

    Brake Pedal Bolt (1) - Install and tighten [2x] 22 N.m (16 lb ft)

  27. GM4601500Courtesy of GENERAL MOTORS COMPANY

    Brake Pedal Bolt (1) - Install and tighten22 N.m (16 lb ft)

  28. GM4711299Courtesy of GENERAL MOTORS COMPANY

    { If equipped }Instrument Panel Compartment Air Duct (1) - Install - Instrument Panel Compartment Air Duct Replacement (Equinox) , or Instrument Panel Compartment Air Duct Replacement (Terrain)

  29. GM4731361Courtesy of GENERAL MOTORS COMPANY

    Steering Column (1) - Install - Steering Column Replacement (Equinox) , or Steering Column Replacement (Terrain)

  30. GM4728069Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Center Air Outlet Duct (1) - Install - Instrument Panel Center Air Outlet Duct Replacement (Equinox) , or Instrument Panel Center Air Outlet Duct Replacement (Terrain)

  31. GM4602046Courtesy of GENERAL MOTORS COMPANY

    Windshield Defroster Outlet Duct (1) - Install - Windshield Defroster Outlet Duct Replacement (Equinox) , or Windshield Defroster Outlet Duct Replacement (Terrain)

  32. GM4732078Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Knee Bolster Deflector (2) - Install - Instrument Panel Knee Bolster Deflector Replacement (Equinox) , or Instrument Panel Knee Bolster Deflector Replacement (Terrain)

  33. GM4730492Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel (1) - Install - Instrument Panel Assembly Replacement (Equinox) , or Instrument Panel Assembly Replacement (Terrain)

  34. GM4726911Courtesy of GENERAL MOTORS COMPANY

    Side Window Defogger Outlet Duct - Left Side (1) - Install - Side Window Defogger Outlet Duct Replacement - Left Side (Equinox) , or Side Window Defogger Outlet Duct Replacement - Left Side (Terrain)

  35. GM4726924Courtesy of GENERAL MOTORS COMPANY

    Side Window Defogger Outlet Duct - Right Side (1) - Install - Side Window Defogger Outlet Duct Replacement - Right Side (Equinox) , or Side Window Defogger Outlet Duct Replacement - Right Side (Terrain)

  36. GM4586823Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Compartment Door Dampener (1) - Install - Instrument Panel Compartment Door Dampener Replacement

  37. GM4703357Courtesy of GENERAL MOTORS COMPANY

    Communication Interface Module (1) - Install - Communication Interface Module Replacement (Equinox) , or Communication Interface Module Replacement (Terrain with IOS, IOT, IOU) , or Communication Interface Module Replacement (Terrain with IOR)

  38. GM4709960Courtesy of GENERAL MOTORS COMPANY

    Heater and Air Conditioning Remote Control (1) - Install - Heater and Air Conditioning Remote Control Replacement (Equinox) , or Heater and Air Conditioning Remote Control Replacement (Terrain)

  39. GM4710565Courtesy of GENERAL MOTORS COMPANY

    Instrument Cluster (2) - Install - Instrument Cluster Replacement (Equinox) , or Instrument Cluster Replacement (Terrain)

  40. GM4706052Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Knee Bolster (1) - Install - Instrument Panel Knee Bolster Replacement (Equinox) , or Instrument Panel Knee Bolster Replacement (Terrain)

  41. GM4694805Courtesy of GENERAL MOTORS COMPANY

    Serial Data Gateway Module (1) - Install - Serial Data Gateway Module Replacement (Equinox) , or Serial Data Gateway Module Replacement (Terrain with MNH, NMK, or MHG) , or Serial Data Gateway Module Replacement (Terrain with M3U, M3D, or M3H)

  42. GM4717098Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Upper Trim Panel (1) - Install - Instrument Panel Upper Trim Panel Replacement (Equinox) , or Instrument Panel Upper Trim Panel Replacement (Terrain)

  43. GM4707492Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Compartment Door (1) - Install - Instrument Panel Compartment Door Replacement (Equinox) , or Instrument Panel Compartment Door Replacement (Terrain)

  44. GM4695950Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Light Conductor Lamp (1) - Install - Instrument Panel Light Conductor Lamp Replacement (Equinox) , or Instrument Panel Light Conductor Lamp Replacement (GMC)

  45. GM4693046Courtesy of GENERAL MOTORS COMPANY

    Forward Collision Alert Display (2) - Install - Forward Collision Alert Display Replacement (Equinox) , or Forward Collision Alert Display Replacement (Terrain)

  46. GM4709267Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Extension (1) - Install - Instrument Panel Extension Replacement (Terrain)

  47. GM4698558Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Cluster Trim Plate (1) - Install - Instrument Panel Cluster Trim Plate Replacement (Equinox) , or Instrument Panel Cluster Trim Plate Replacement (Terrain)

  48. GM4693229Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Trim Pad - Right Side (1) - Install - Instrument Panel Trim Pad Replacement - Right Side (Equinox) , or Instrument Panel Trim Pad Replacement - Right Side (Terrain)

  49. GM4694187Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Trim Pad - Left Side (1) - Install - Instrument Panel Trim Pad Replacement - Left Side (Equinox) , or Instrument Panel Trim Pad Replacement - Left Side (Terrain)

  50. GM4702538Courtesy of GENERAL MOTORS COMPANY

    Radio Control Assembly (2) - Install - Radio Control Assembly Replacement (Equinox) , or Radio Control Assembly Replacement (Terrain)

  51. GM4694926Courtesy of GENERAL MOTORS COMPANY

    Install the left and right radio front speaker (2). Radio Front Speaker Replacement (Equinox) , or Radio Front Speaker Replacement (Terrain)

  52. GM4693123Courtesy of GENERAL MOTORS COMPANY

    { If equipped }Radio Front Center Speaker (2) - Install - Radio Front Center Speaker Replacement (Equinox) , or Radio Front Center Speaker Replacement (Terrain)

  53. GM4694190Courtesy of GENERAL MOTORS COMPANY

    Install the left and right instrument panel outer trim cover (1). Instrument Panel Outer Trim Cover Replacement (Equinox) , or Instrument Panel Outer Trim Cover Replacement (Terrain)

  54. Install the left and right windshield garnish molding. Windshield Garnish Molding Replacement (Equinox) , or Windshield Garnish Molding Replacement (Terrain)
  55. Front Floor Console - Install - Front Floor Console Replacement (Equinox) , or Front Floor Console Replacement (Terrain)
  56. GM4704500Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Extension Panel - Right Side (1) - Install - Front Floor Console Extension Panel Replacement - Right Side (Equinox) , or Front Floor Console Extension Panel Replacement - Right Side (Terrain)

  57. GM4702887Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Extension Panel - Left Side (1) - Install - Front Floor Console Extension Panel Replacement - Left Side (Equinox) , or Front Floor Console Extension Panel Replacement - Left Side (Terrain)
