Instrument Panel Light Conductor Lamp Replacement (Equinox)

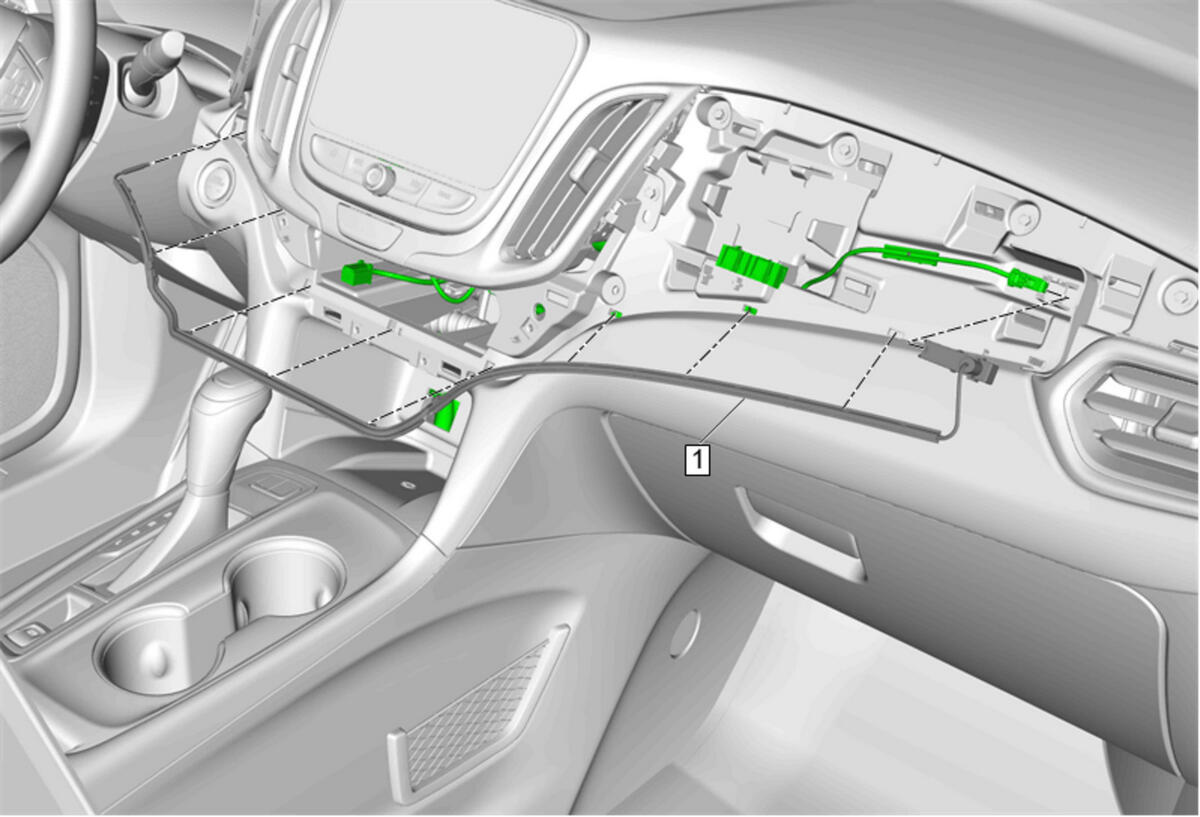

GM4592534Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Heater and Air Conditioning User Interface Control Replacement (Equinox) , or Heater and Air Conditioning User Interface Control Replacement (Terrain)
1 Instrument Panel Light Conductor Lamp

Procedure

  1. Disconnect the electrical connector.
  2. Release the retaining tabs.
