Instrument Panel Center Lower Bracket Replacement (Equinox - Left Side)

Courtesy of GENERAL MOTORS COMPANY

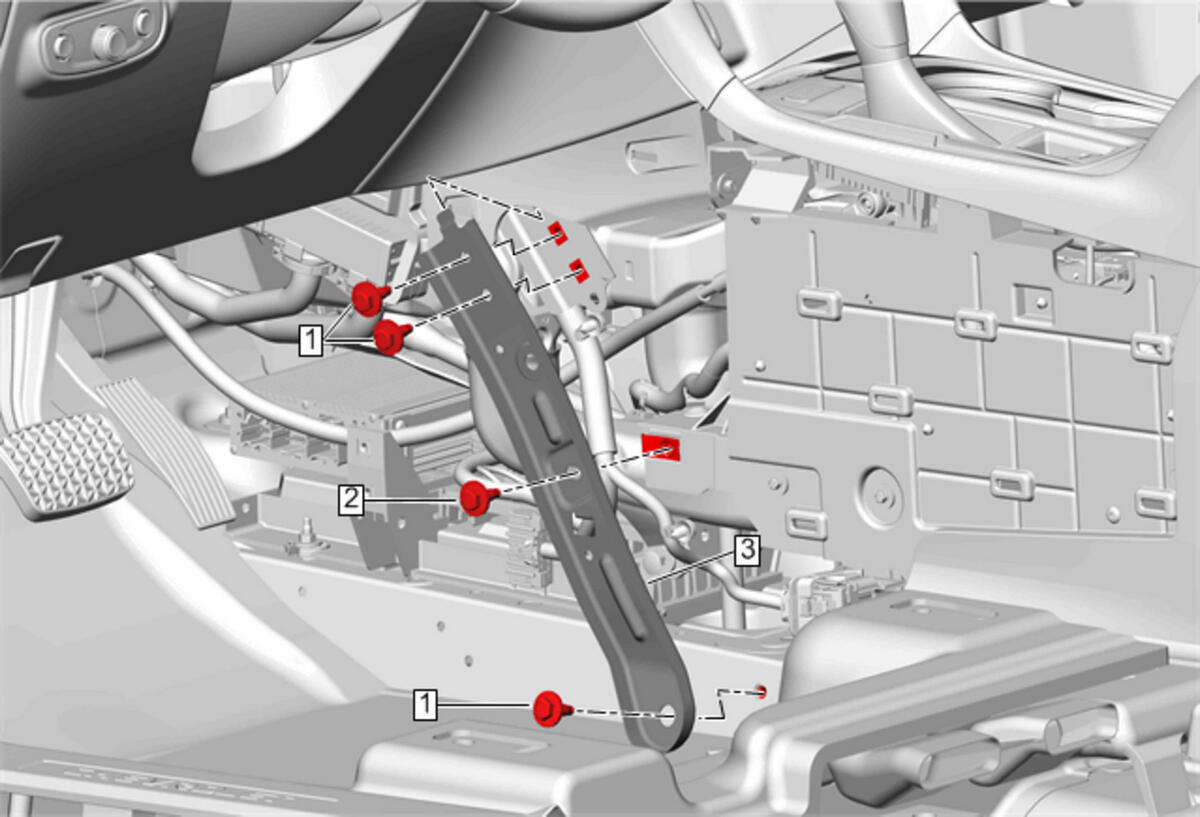

Callout	Component Name
Preliminary Procedure Front Floor Console Extension Panel Replacement - Left Side (Equinox) , or Front Floor Console Extension Panel Replacement - Left Side (Terrain)
1	Instrument Panel Center Support Bracket Bolt [3x] CAUTION: Refer to Fastener Caution . Tighten 22 N.m (16 lb ft)
2	Automatic Transmission Control Bolt Tighten 22 N.m (16 lb ft)
3	Instrument Panel Center Lower Bracket Procedure Disconnect and reposition harness as necessary. Release the retaining tab.
