Instrument Panel Outer Trim Cover Replacement (Equinox)

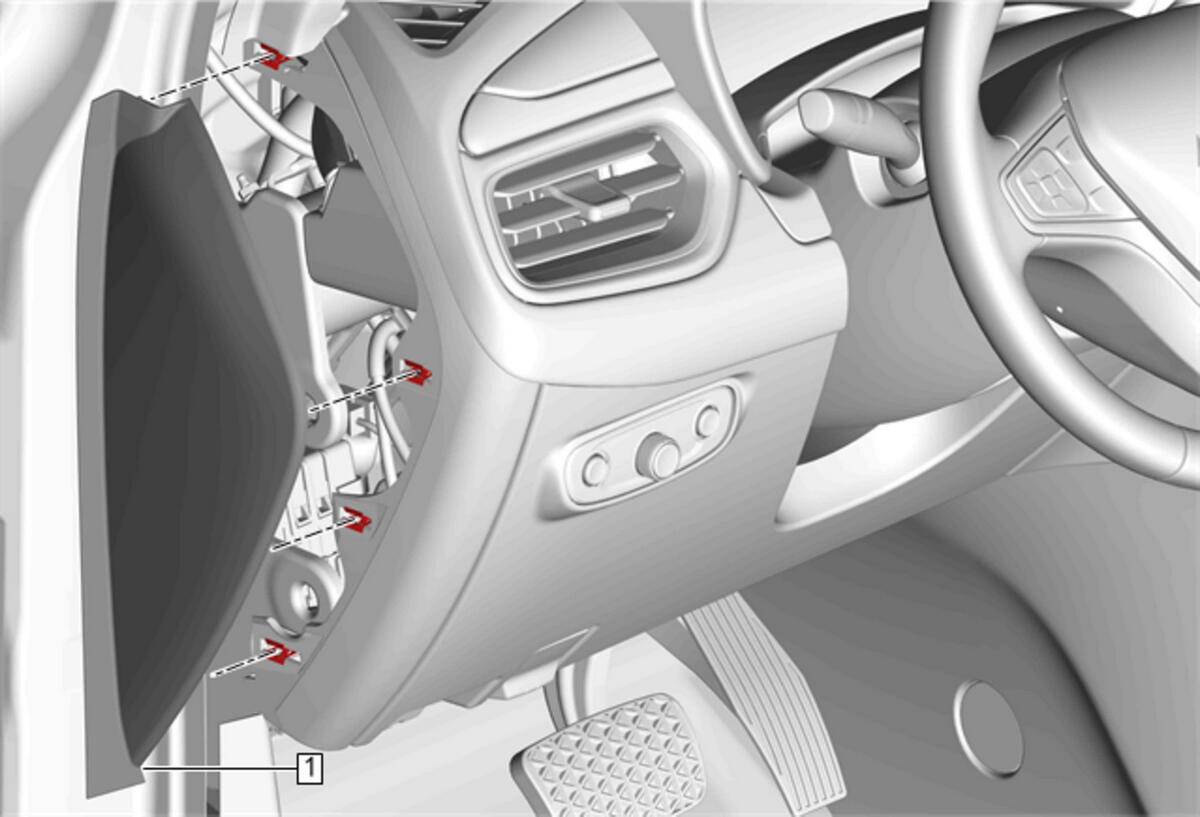

GM4562239Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Instrument Panel Outer Trim Cover

Procedure

  1. Pull away a segment of the front side door weather-strip to clear the edge of the trim cover.
  2. Use a flat bladed plastic trim tool.
  3. Start at the back and work your way inboard to release the tabs.
NOTE:

Left side shown, right side similar.
