Instrument Panel Center Lower Bracket Replacement (Equinox - Right Side)

Courtesy of GENERAL MOTORS COMPANY

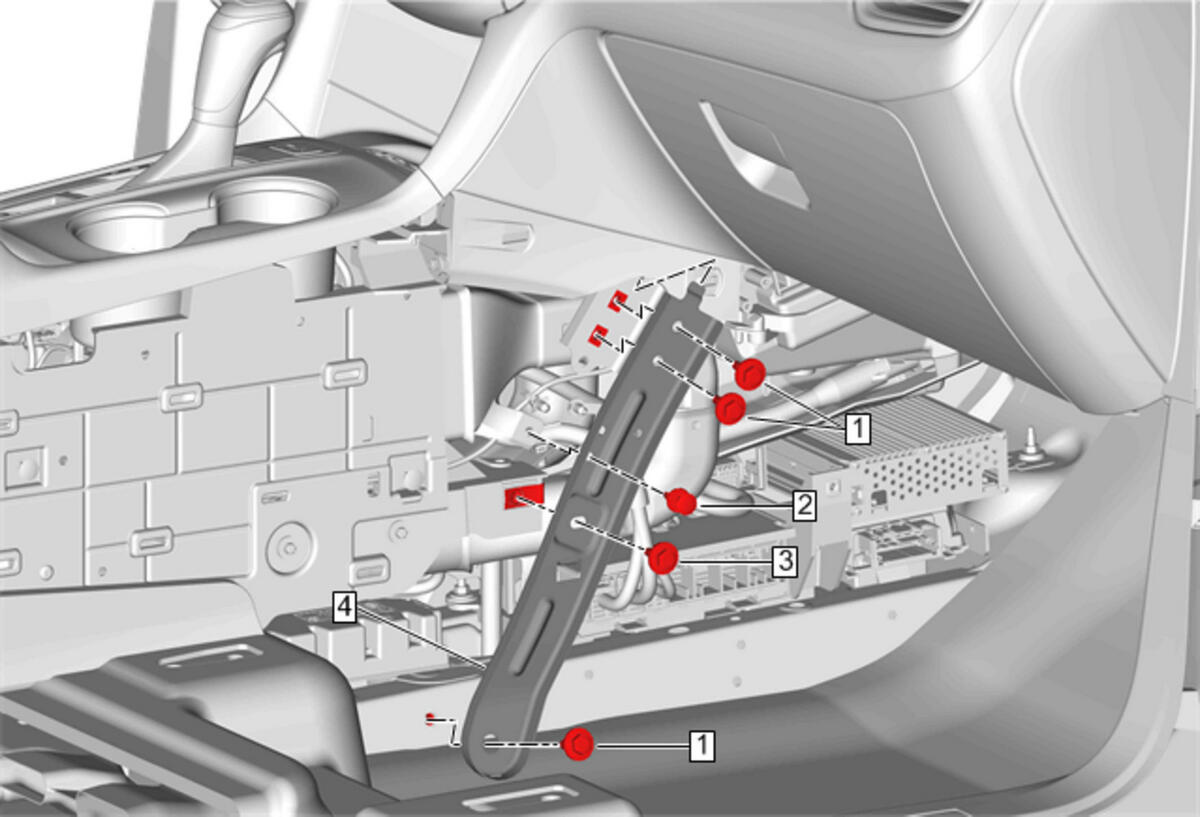

Callout	Component Name
Preliminary Procedure Front Floor Console Extension Panel Replacement - Right Side (Equinox) , or Front Floor Console Extension Panel Replacement - Right Side (Terrain)
1	Instrument Panel Center Support Bracket Bolt [3x] CAUTION: Refer to Fastener Caution . Tighten 22 N.m (16 lb ft)
2	Front Floor Console Rear Air Duct Retainer
3	Automatic Transmission Control Bolt Tighten 22 N.m (16 lb ft)
4	Instrument Panel Center Lower Bracket Procedure Disconnect and reposition harness as necessary. Release the retaining tab.
