Removal Procedure

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Rear Compartment Floor Stowage Side Rear Compartment
    GM4360865Courtesy of GENERAL MOTORS COMPANY
  1. Remove Rear Compartment Floor Stowage Side Rear Compartment (2)Rear Compartment Floor Stowage Side Rear Compartment Replacement

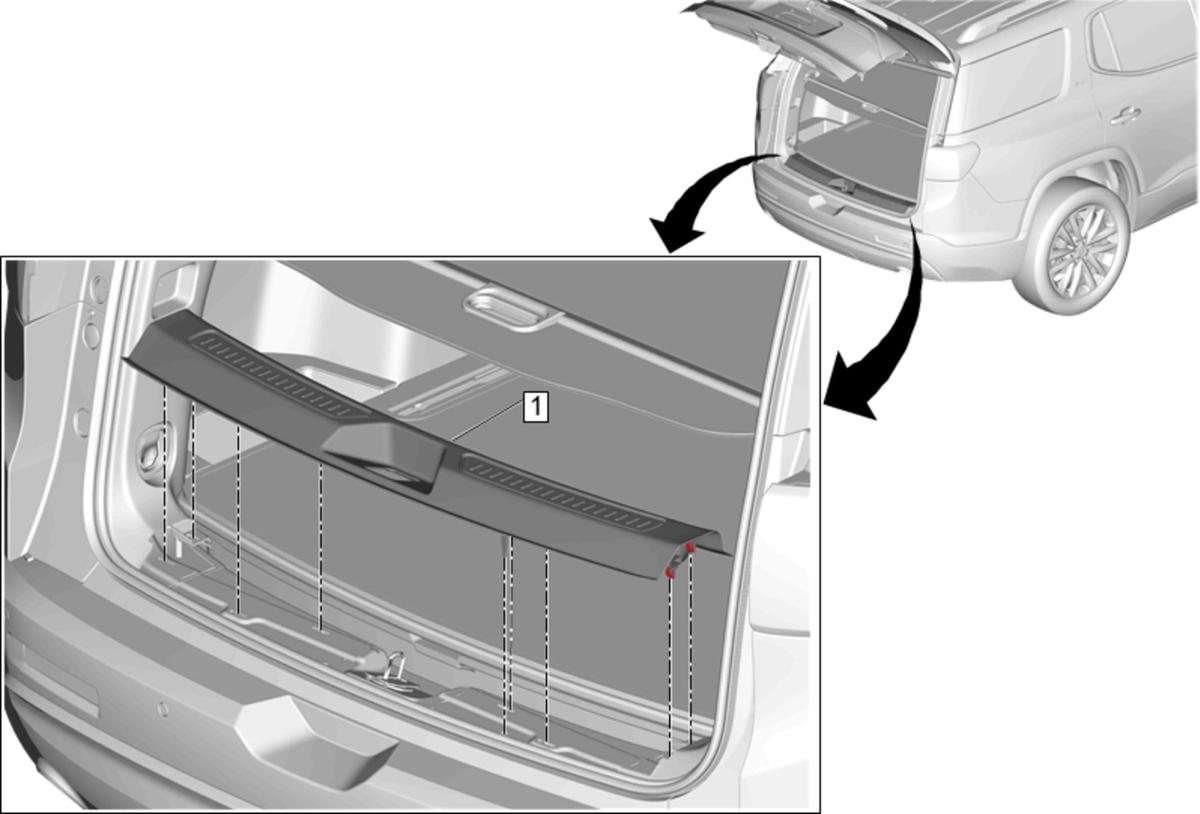

    2. Fig 2: Liftgate Sill Garnish Molding
    GM4375356Courtesy of GENERAL MOTORS COMPANY
  2. Remove Liftgate Sill Garnish Molding (1)Liftgate Sill Garnish Molding Replacement

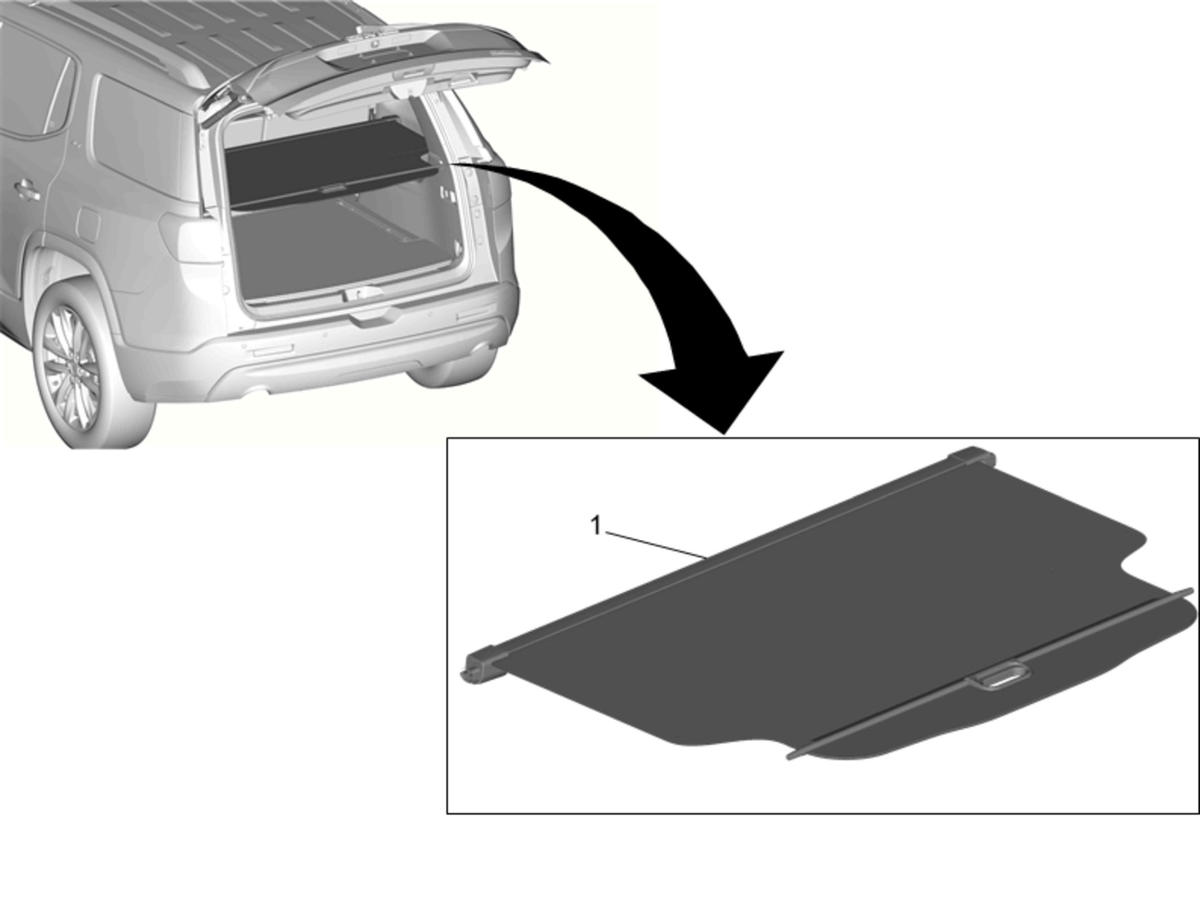

    3. Fig 3: Luggage Shade
    GM4358161Courtesy of GENERAL MOTORS COMPANY
  3. Remove Luggage Shade (1) Luggage Shade Replacement
    4. Fig 4: Quarter Window Trim Finish Panel
    GM4447644Courtesy of GENERAL MOTORS COMPANY
  4. Remove Quarter Window Trim Finish Panel (3) Quarter Window Trim Finish Panel Replacement
    5. Fig 5: Rear Side Door Sill Garnish Molding
    GM4432974Courtesy of GENERAL MOTORS COMPANY
  5. Remove Rear Side Door Sill Garnish Molding(1) Rear Side Door Sill Garnish Molding Replacement
    6. Fig 6: Cargo Tie Down Loop
    GM4356616Courtesy of GENERAL MOTORS COMPANY
  6. Remove Cargo Tie Down Loop (2) Cargo Tie Down Loop Replacement

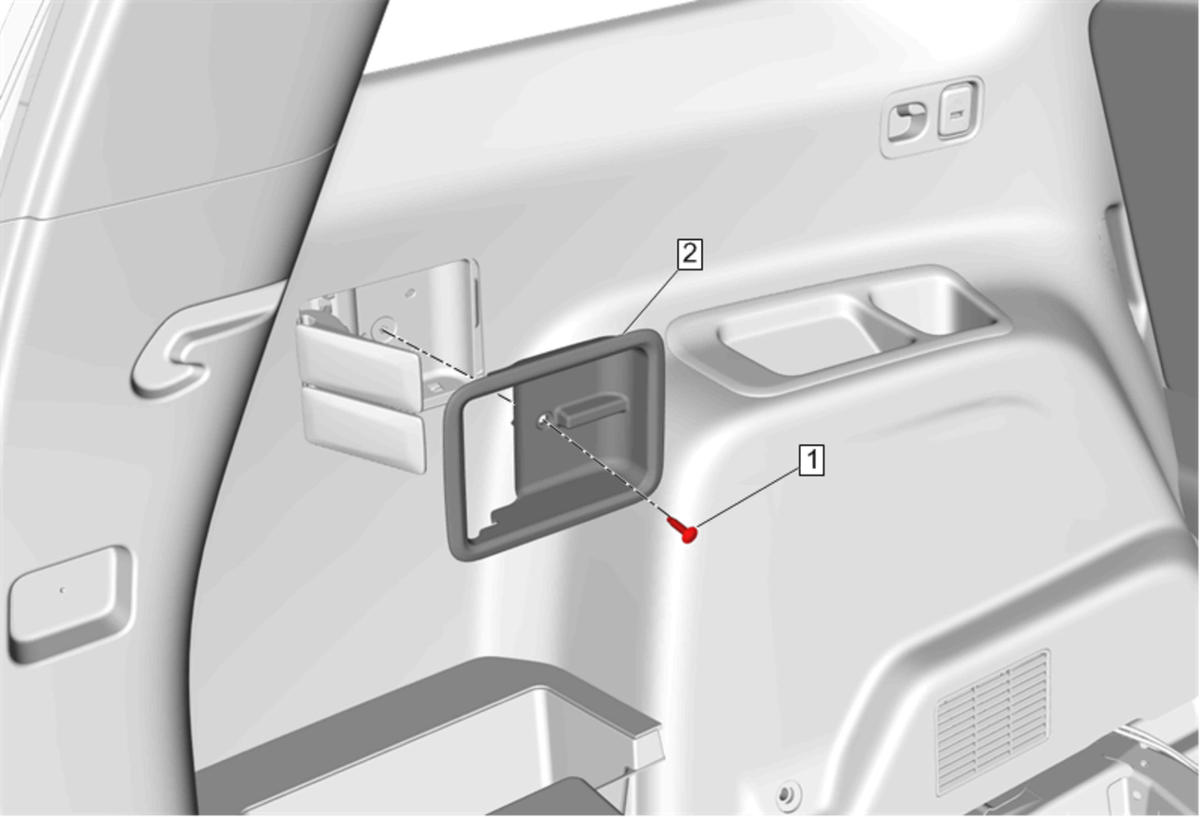

    7. Fig 7: Rear Seat Back Cushion Latch Release Handle Bezel
    GM4360968Courtesy of GENERAL MOTORS COMPANY
  7. Remove Rear Seat Back Cushion Latch Release Handle Bezel (2)Rear Seat Back Latch Release Handle Bezel Replacement (Upper)Rear Seat Back Latch Release Handle Bezel Replacement (Rear)
    8. Fig 8: Body Rear Corner Upper Garnish Molding
    GM4441131Courtesy of GENERAL MOTORS COMPANY
  8. Remove Body Rear Corner Upper Garnish Molding (3)Body Rear Corner Upper Garnish Molding Replacement
    9. Fig 9: Rear Compartment Floor Stowage Compartment Divider
    GM4363993Courtesy of GENERAL MOTORS COMPANY
  9. Remove Rear Compartment Floor Stowage Compartment Divider - Left Side (2)Rear Compartment Floor Stowage Compartment Divider Replacement - Left Side (All Terrain)
    10. Fig 10: Quarter Lower Rear Trim Panel
    GM4445374Courtesy of GENERAL MOTORS COMPANY
  10. Use a flat-bladed plastic trim tool to release the quarter lower rear trim panel (1)from the quarter inner panel.
  11. Disconnect all electrical connectors.
