Rear Compartment Floor Stowage Compartment Divider Replacement - Left Side (All Terrain)

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

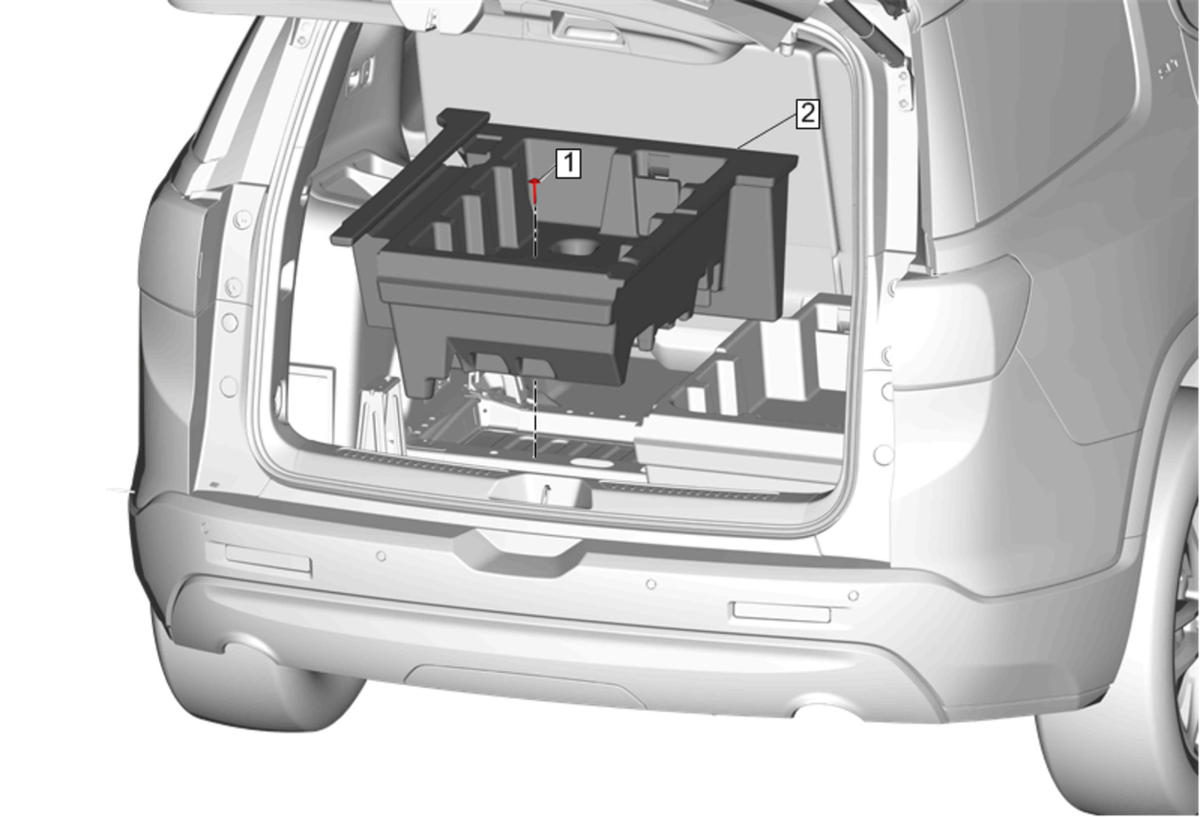

Fig 1: Rear Compartment Floor Stowage Compartment Divider

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Load Floor Trim Panel Replacement (All Terrain) Cargo Partition Track Replacement (All Terrain)
1	Cargo Net Front Bracket Bolt CAUTION: Refer to Fastener Caution . NOTE: Open the load floor trim panel to access the fasteners. Tighten 4.5 N.m (40 lb in)
2	Rear Compartment Floor Stowage Compartment Divider - Left Side

Callout

Component Name

Preliminary Procedure

Load Floor Trim Panel Replacement (All Terrain)
Cargo Partition Track Replacement (All Terrain)

Cargo Net Front Bracket Bolt

CAUTION:

Refer to Fastener Caution .

NOTE:

Open the load floor trim panel to access the fasteners.

Tighten
4.5 N.m (40 lb in)

Rear Compartment Floor Stowage Compartment Divider - Left Side
