Cargo Tie Down Loop Replacement

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

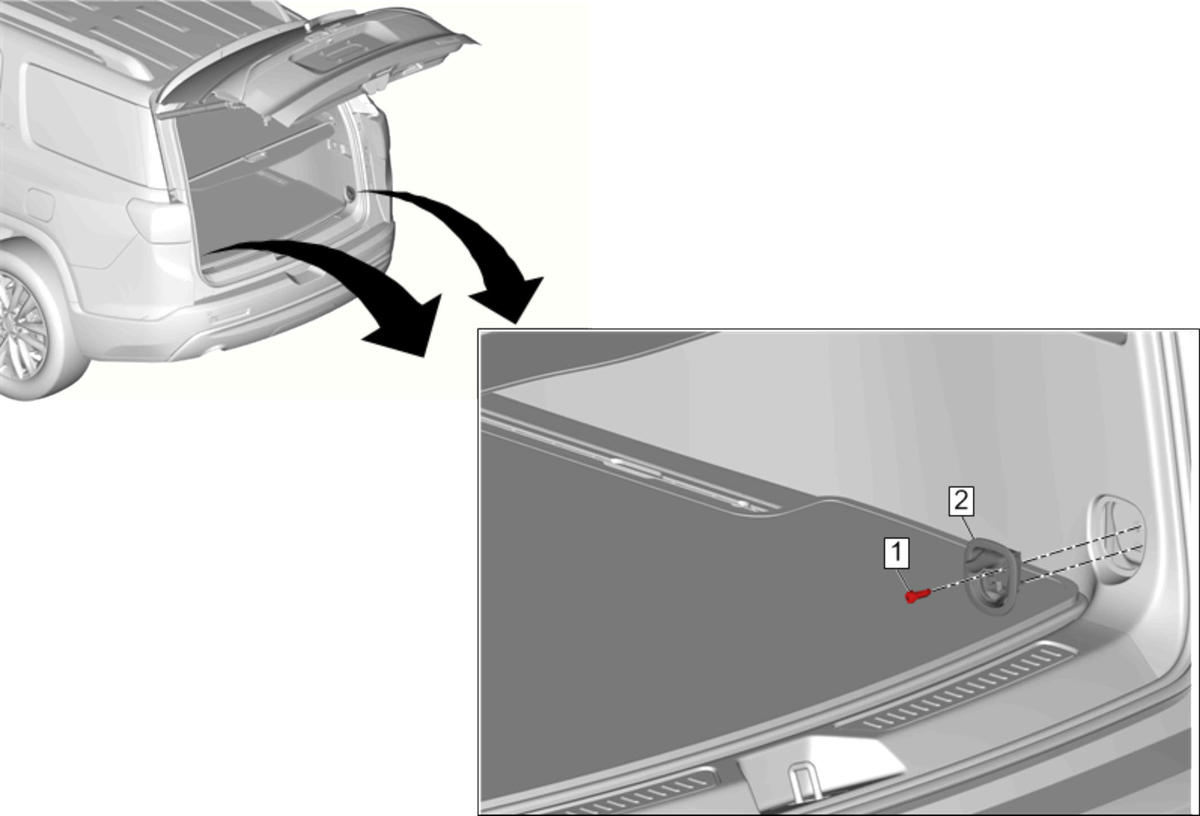

Fig 1: Cargo Tie Down Loop

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Cargo Tie Down Loop Fastener CAUTION: Refer to Fastener Caution . Procedure Use a small flat-bladed tool to open cargo tie down loop bolt cap to gain access to cargo tie down loop fastener. Tighten 20 N.m (15 lb ft)
2	Cargo Tie Down Loop
